6. Application Examples

55

Serial Masters, IP Slaves

Serial Masters can be used to control IP Slaves.

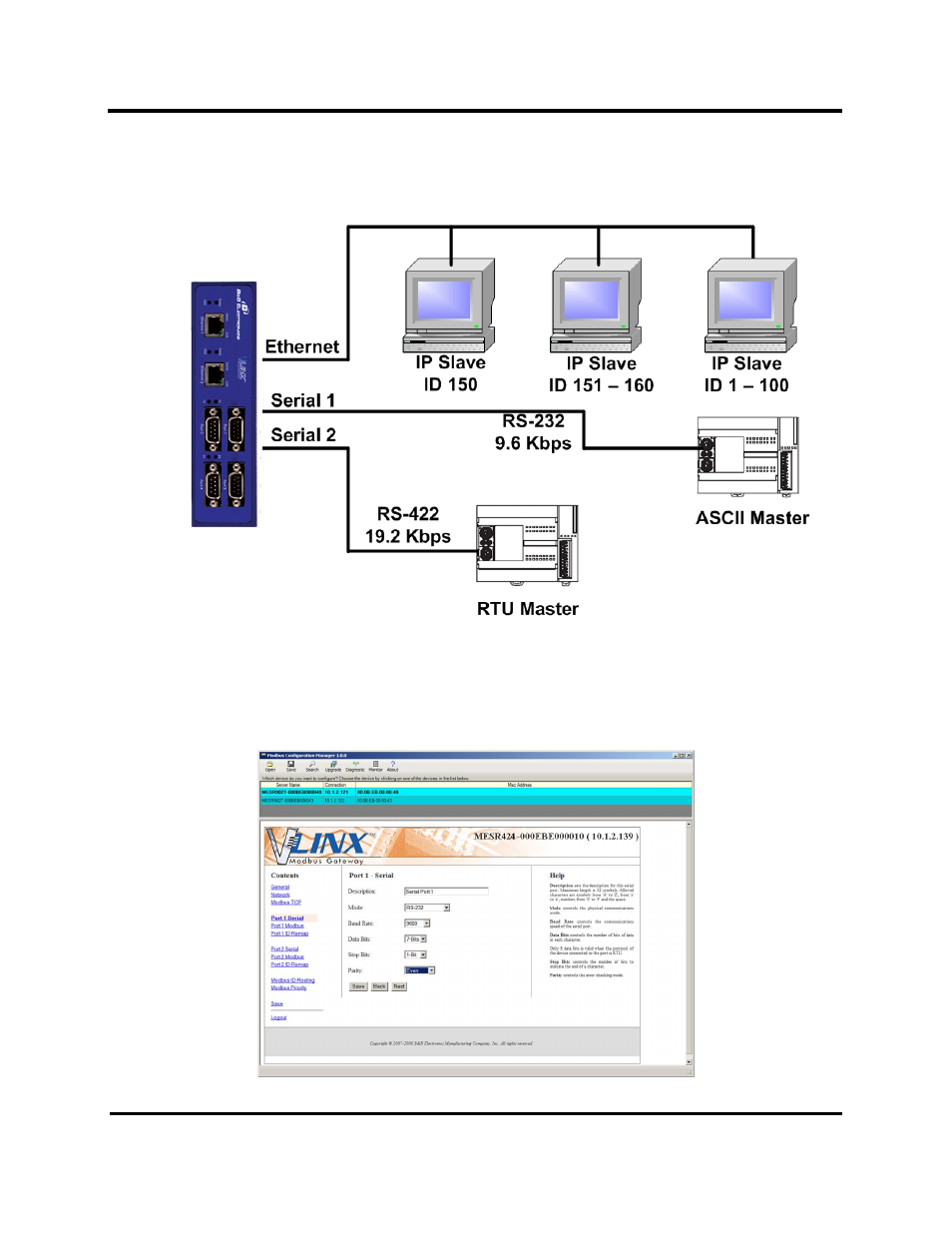

Figure 61. Serial Masters, IP Slaves

1. In this example, and ASCII Master is connected to Serial Port 1 and an RTU Master

is connected to Serial Port 2. Configure the serial ports as appropriate for these
devices.

Figure 62. Port 1 Serial
