6. Application Examples

51

9. Configure the Port 1 Modbus Settings. In this case Attached should be slaves,

Modbus should be RTU. The other settings depend on your application.

10. Configure Port 2 Serial and Modbus is the same fashion.

11. Access Modbus ID Remapping for each port and configure as necessary.

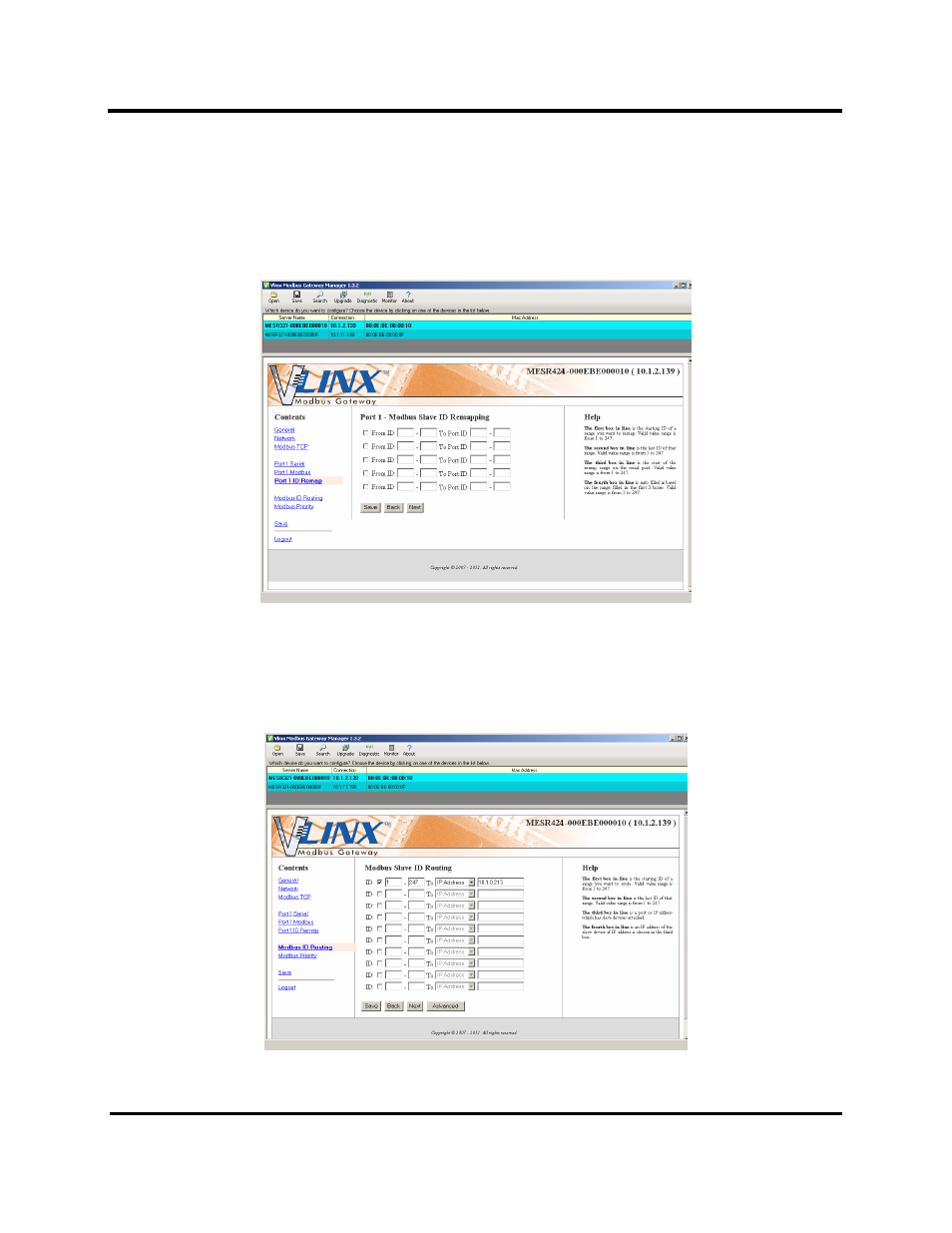

Figure 55. Port x Modbus Slave ID Remapping

12. Access Modbus ID Routing. Configure as necessary. In this example, Slave ID 200 is

mapped to serial port 1, Slave ID 1 through 5 and 205 are mapped to serial port 2.

Figure 56. Modbus ID Routing
