3. Setup and Connections
34
b. This screen allows you to set the Modbus Slave ID routing.

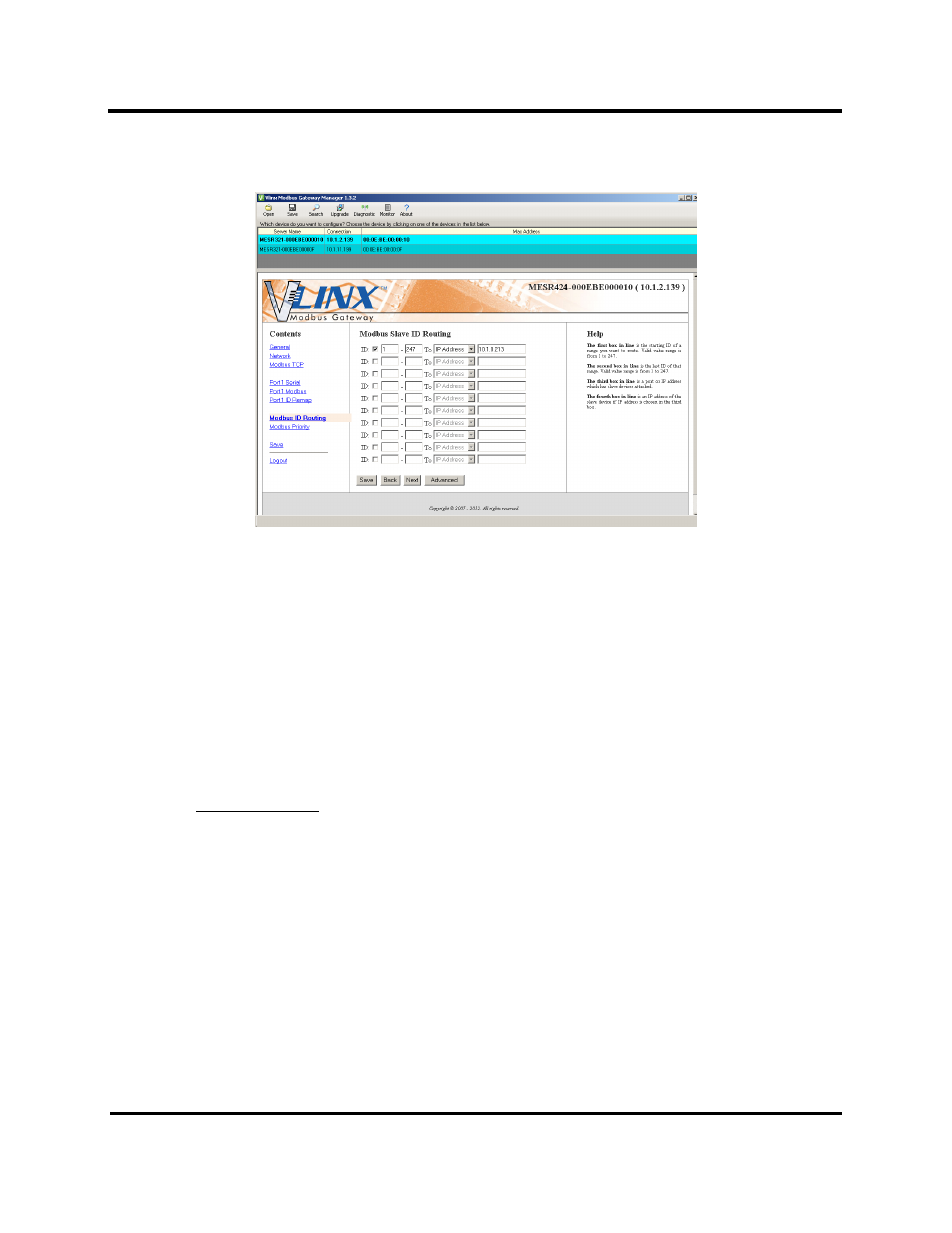

Figure 40. Modbus ID Routing Screen
c. The first box in line is the starting ID of a range you want to route. Valid value
range is from 1 to 247.
d. The second box in line is the last ID of that range. Valid value range is from 1 to
247.
e. The third box in line is a port or IP address which has slave devices attached.
f. The fourth box in line is an IP address of the slave device if IP address is chosen
in the third box.
g. Save settings by clicking the “Save” button.
16. Modbus Priority
a. To access this screen, click the “Next” button or click the “Modbus Priority” link
on the left side of the screen.
b. This screen allows you to configure the gateway to move high priority messages
to the front of the serial message buffer.
