2. Hardware

Ethernet Connector

MESR424 Modbus Gateway models using 10BaseT/100BaseTX network connections
use RJ45 receptacles. The MESR424 Modbus Gateway is connected to a standard
Ethernet network drop using a straight-through RJ45 (male) Ethernet cable.

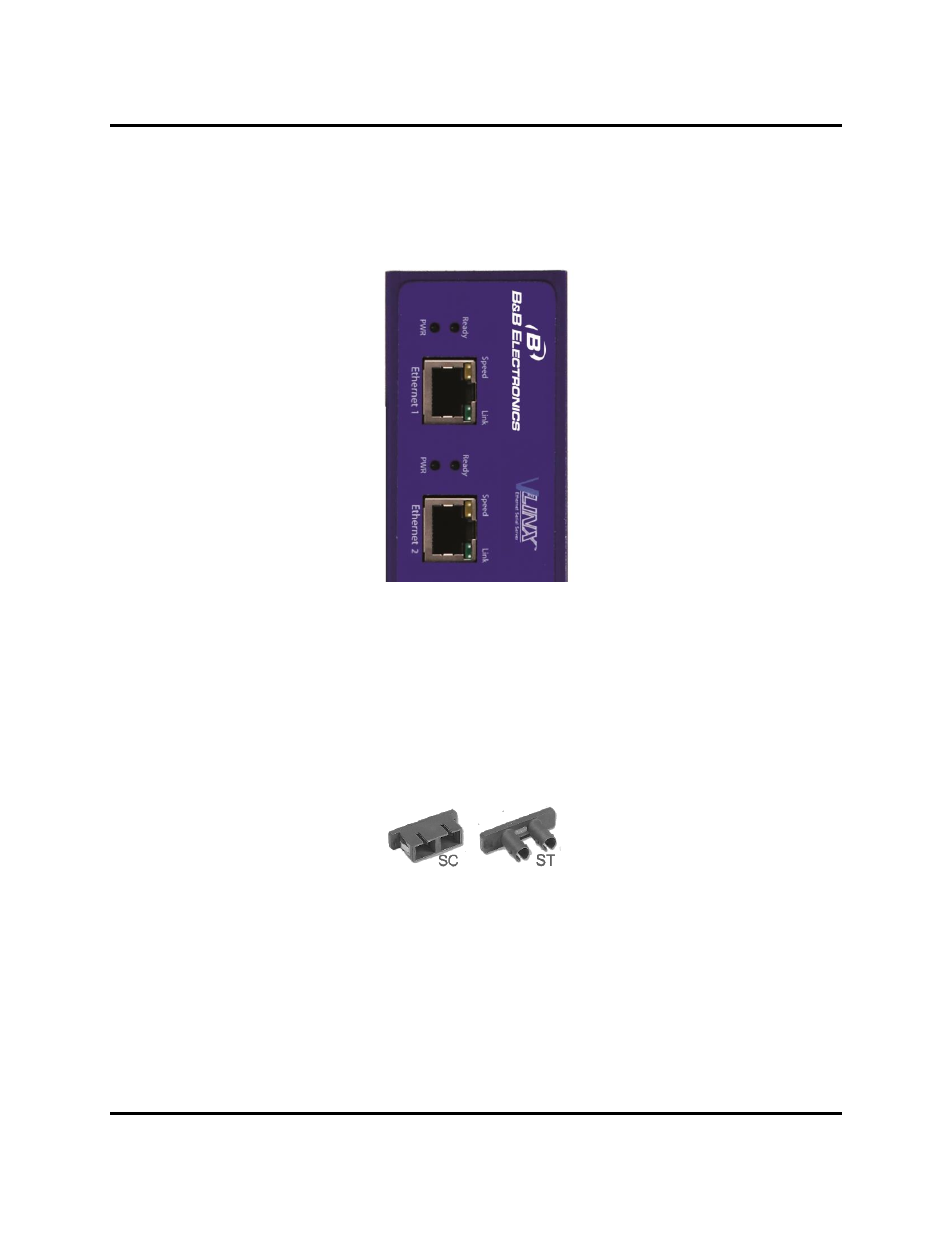

Figure 6.

Ethernet Connectors. E2 is pass-through connection on model shown

Fiber Optic Connectors

MESR424 Modbus Gateway models using fiber optic network connections use either SC
or ST connectors, depending on the specific model.

Figure 7. SC and ST Fiber Optic Cable Connectors
