2. Hardware

13

Power Connector

Power may be supplied by terminal block or a barrel jack.

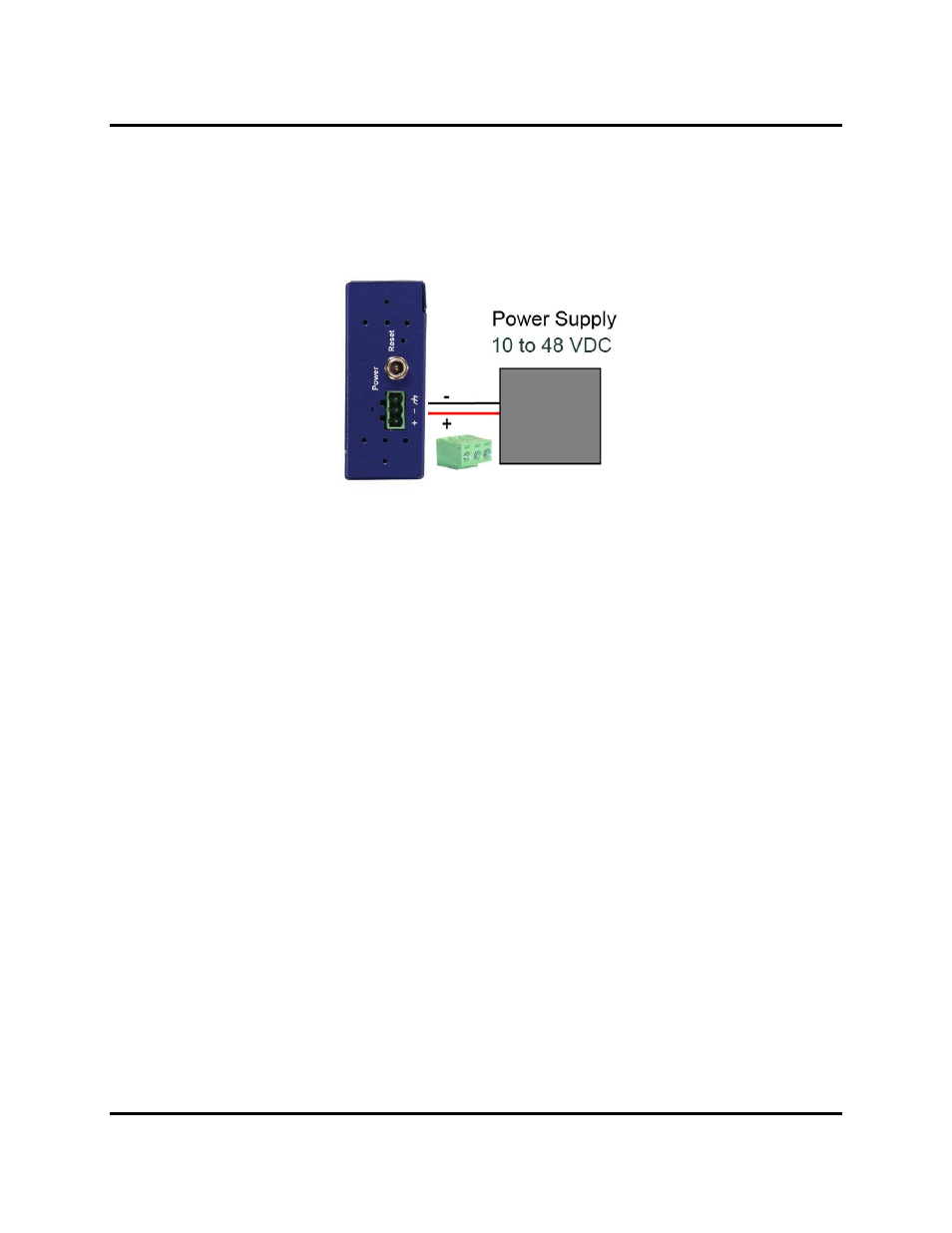

Figure 10. Power Connection

NOTE: the terminal block must be used for Class 1 Division 2 applications; the barrel jack
cannot be used for these applications. See page 66 for further information.
