3. Setup and Connections
22
Configuring the MESR424 Modbus Gateway via the Network Connection
When configuring via the network, either Modbus Configuration software or the web
interface can be used.
Configuring with Modbus Configuration Manager
MESR424 Modbus Gateways can be configured over the network Modbus Configuration
manager software running on a PC.
To open Modbus Configuration Manager:
1. From the Desktop, click Start  Programs  B&B Electronics  Vlinx  Vlinx
Modbus Gateway Manager. An alternate method is to double click the shortcut
installed on the desktop.
2.

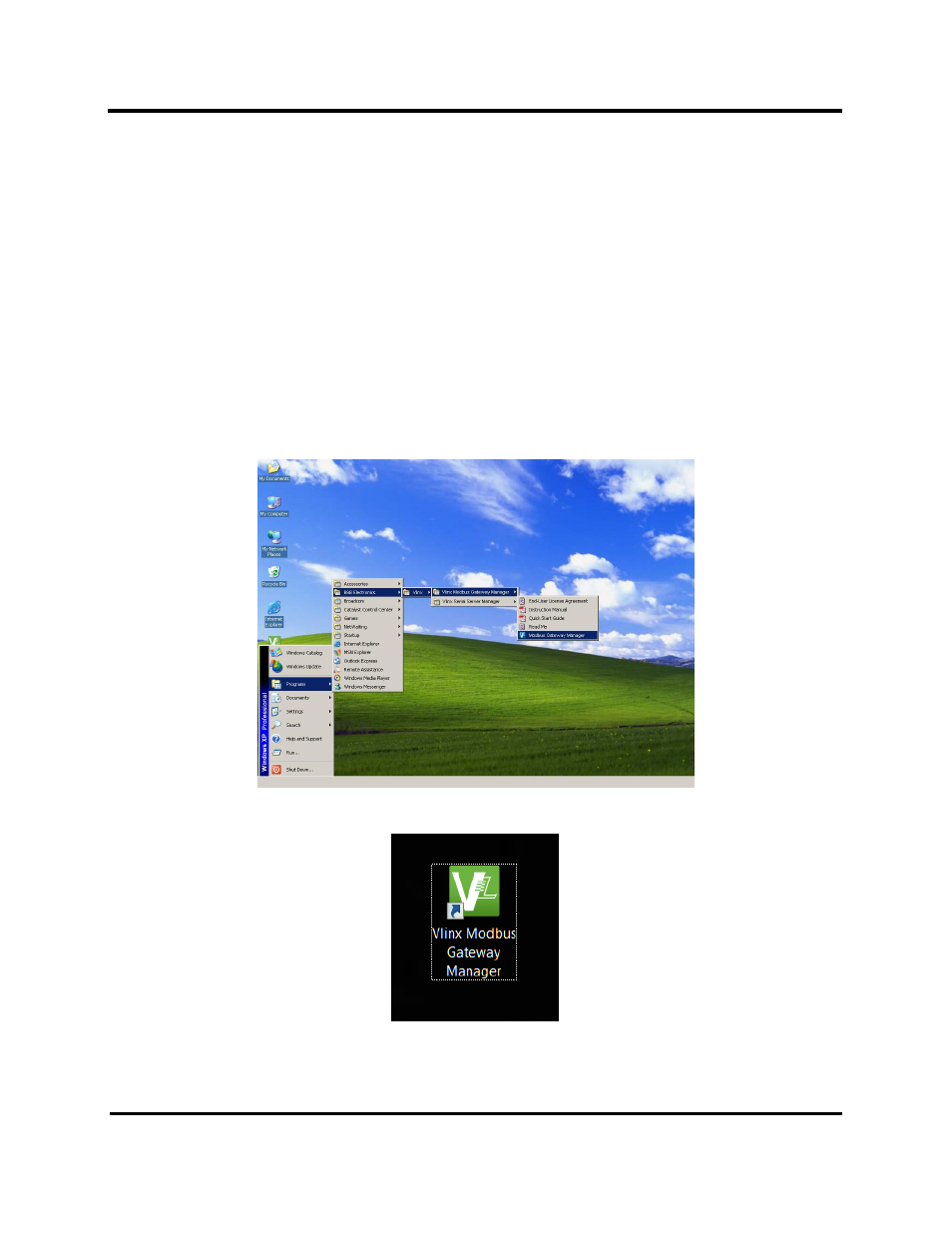

Figure 25. Opening Vlinx Modbus Gateway Manager
Figure 26. Vlinx Modbus Gateway Manager Shortcut Icon
