Page 66

(Revised 8/4/2009)

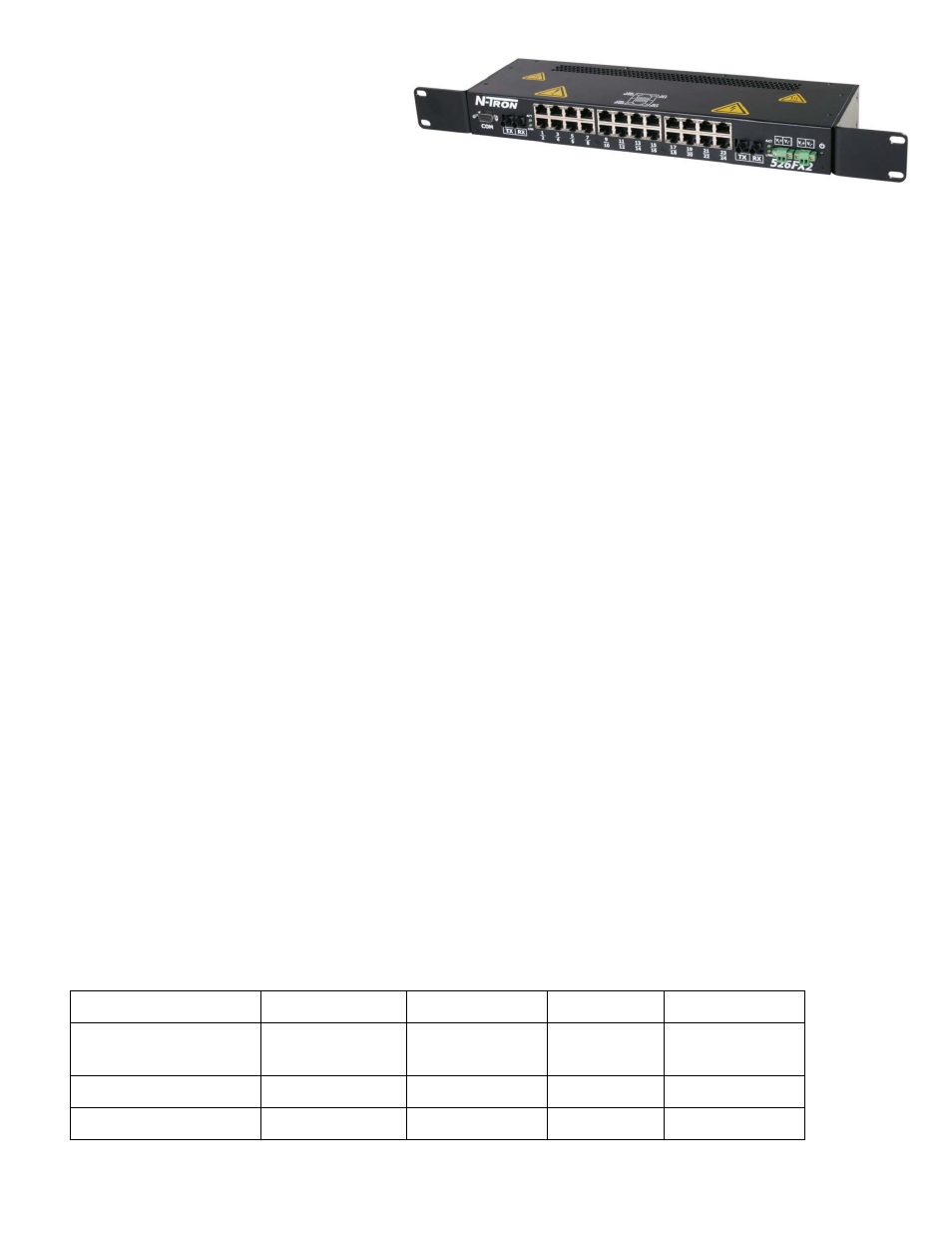

Key Specifications (526FX2/FXE2)

Switch Properties
Number of MAC Addresses

4,000

Aging Time

Programmable

Latency Min.

2.2

µs

Backplane Speed

2.6Gb/s

Switching Method

Store & Forward

Physical

Height:

1.8"

Width:

19"

Depth:

4.3"

Weight:

3.7 lbs

Electrical
Redundant Input Voltage:

10-30 VDC

Input Current:

720 mA @ 24VDC (max current 1.0 A)

Inrush Current:

13.1 Amp / 0.93 ms @ 24VDC

Input Ripple:

Less than 100 mV

Environmental

Operating and Storage Temp: -40oC to 85oC

for -S option 526FX2:

-20oC to 70oC, Operating, -40oC to 85oC Storage

Operating Humidity:

10% to 95%

(Non Condensing)

Operating Altitude:

0 to 10,000 ft.

Shock and Vibration
Shock:

200g @ 10ms

Vibration/Seismic:

50g, 5-200Hz, Triaxial

Reliability
MTBF:

>1Million Hours

Network Media
10BaseT:

>Cat3 Cable

100BaseTX:

>Cat5 Cable

100BaseFX
Multimode:

50-62.5/125µm

Singlemode:

7-10/125µm

Connectors
10/100BaseT:

Twenty Four (24) RJ-45 Copper Ports

100BaseFX:

Two (2) SC or ST Duplex Fiber Port

Serial Port
Com Parameters:

9600,n,8,1

Fiber Transceiver Characteristics

Fiber Length:

2km*

15km**

40km**

80km**

TX Power Min/Max

-19dBm/-14dBm

-15dBm/-7dBm

-5dBm/0dBm

RX Sensitivity Max:

-32dBm

-34dBm

Wavelength:

1310nm

1550nm

*=Multimode

** =Singlemode
