(Revised 8/4/2009) 10

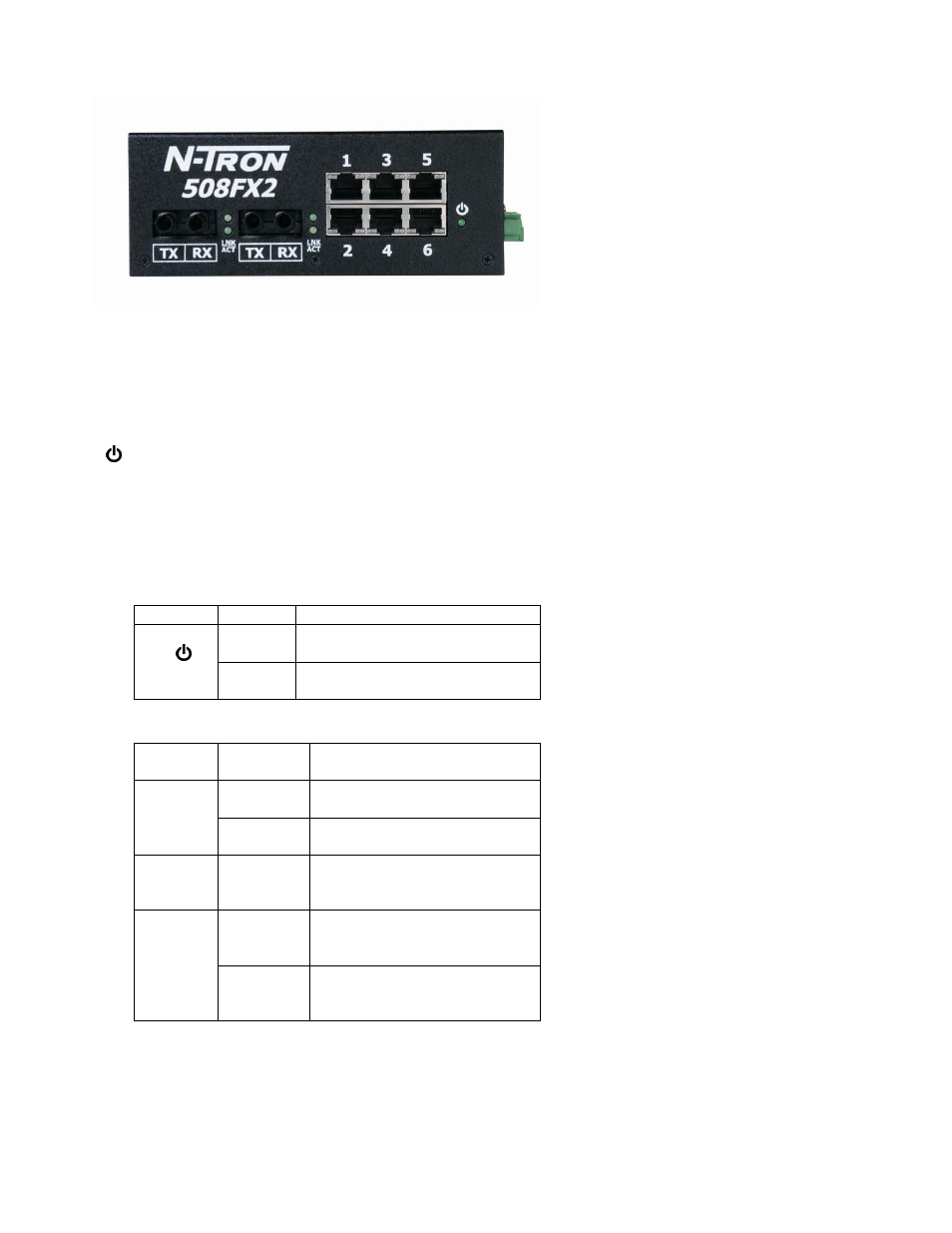

Front Pannel
From Left to Right:
LNK Link LED for Fiber Optic Port (only FX/FXE models)
TX 100MB/s Fiber Optic TX Port (only FX/FXE models)
RX 100MB/s Fiber Optic RX Port (only FX/FXE models)
ACT Activity LED for Fiber Optic Port (only FX/FXE models)
RJ45 Ports Auto sensing 10/100 BaseTX Connections
Green LED lights when Power is connected
NOTE: Each RJ45 data port has two LED’s located at the top or bottom of each connector. The left LED
indicates LINK status (green for 100Mb link, Orange for 10Mb link), and the right LED indicates
ACTIVITY (Green for Full Duplex activity, Orange for Half Duplex Activity).
LED’s: The table below describes the operating modes:
LED Color Description
GREEN Power is Applied
OFF Power is OFF
LNK
GREEN 100Mb Link between ports
ORANGE 10 Mb Link between ports
OFF No Link between ports
ACT
GREEN Data is active between ports
and operating in full duplex
ORANGE Data is active between ports
and operating in half duplex
OFF Data is inactive between
ports
