4.4 Antenna Connector
The antenna is connected to the router using the SMA connector on the front panel.
The router cannot operate without the main antenna. (The port is labeled as ANT.)
The ANT connector is used to connect the main antenna router. To connect the second
antenna for diversity, use the connector labeled DIV.

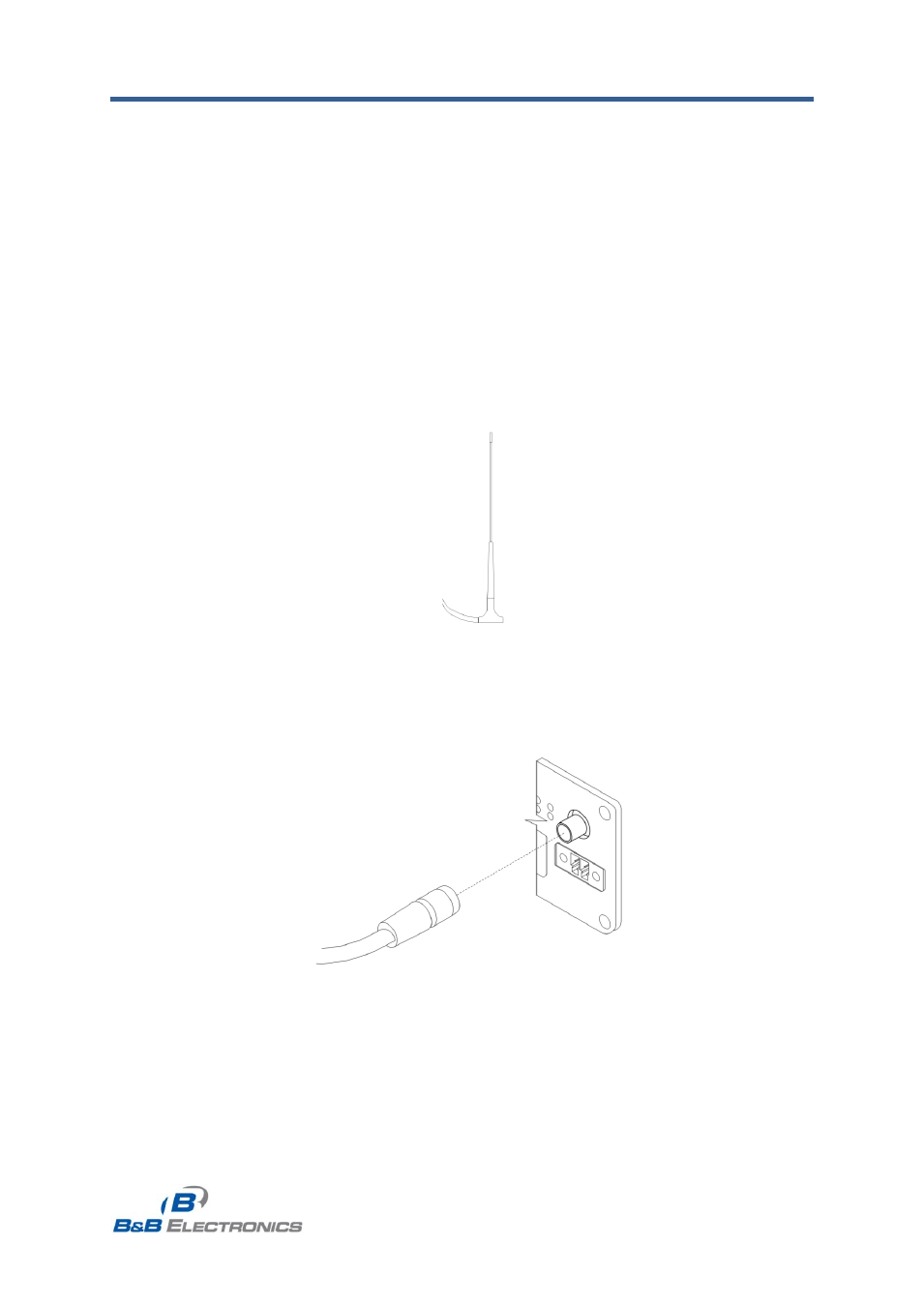

Example of antenna:
Fig. 10: External antenna
Connect the antenna
’s SMA connector to the router’s SMA connector. (See figure below).
Fig. 11: Connecting the antenna
The diversity antenna improves the wireless features of the router in areas with weak signal
strength.
