4. User Interfaces

4.1

Connectors

FRONT PANEL

Label

Connector

Description

PWR

2-pin

Power supply.

ETH

RJ45

Connection to the local computer network.

PORT 1

RJ45

RS-232/422/485, ETHERNET, or I/O

PORT 2

RJ45

RS-232/422/485 or ETHERNET

ANT*

SMA

Main antenna

DIV*

SMA

Diversity antenna

USB

USB-A Host USB connector.

I/O

3-pin

Binary input and output.

SIM1*

-

SIM card holder 1

SIM2*

-

SIM card holder 2

* 3G models only

Table 3: Front panel description




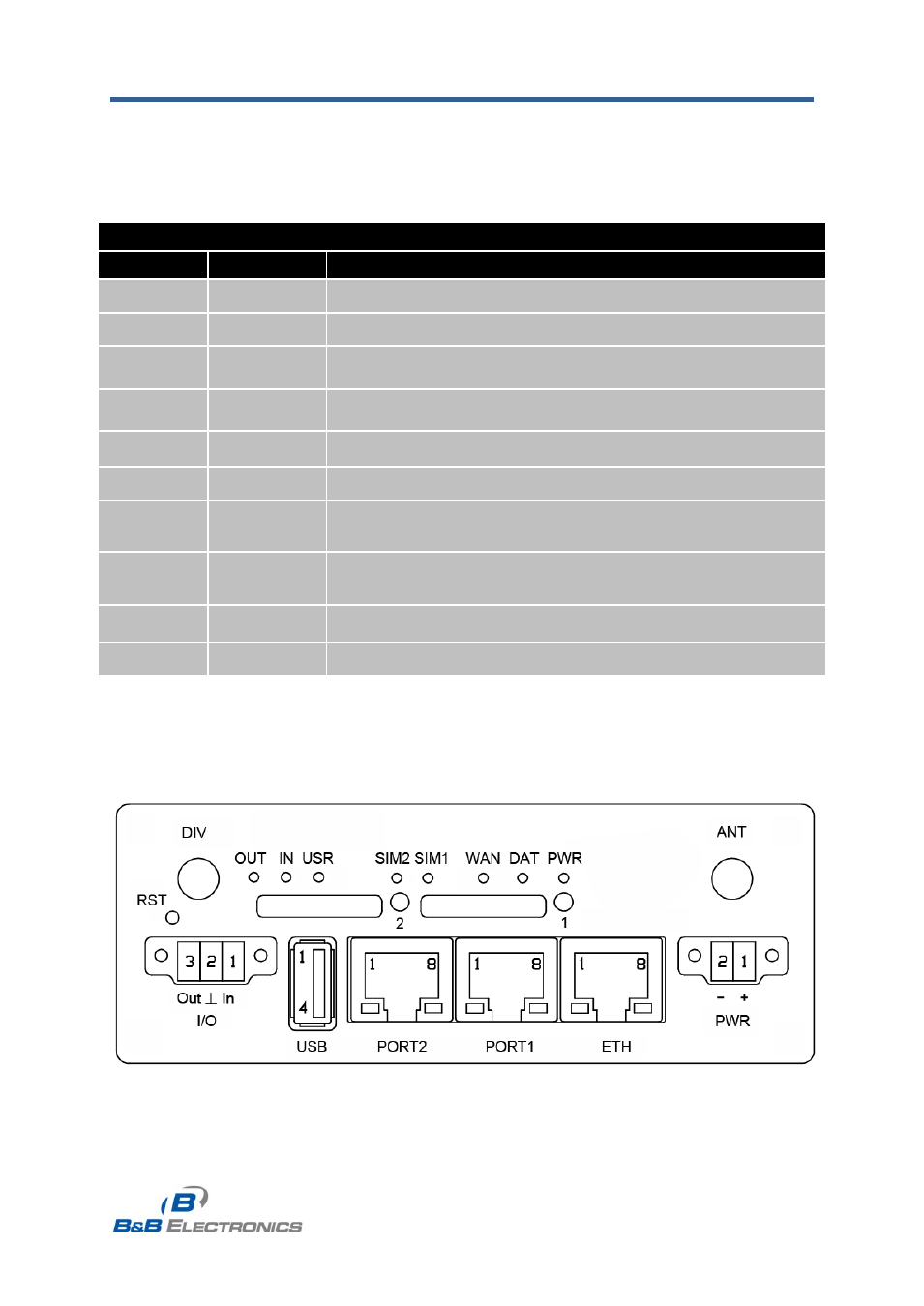

Fig. 6: Front panel SPECTRE 3G
