51
8715C–SFLSH–11/2012
AT25DF081A

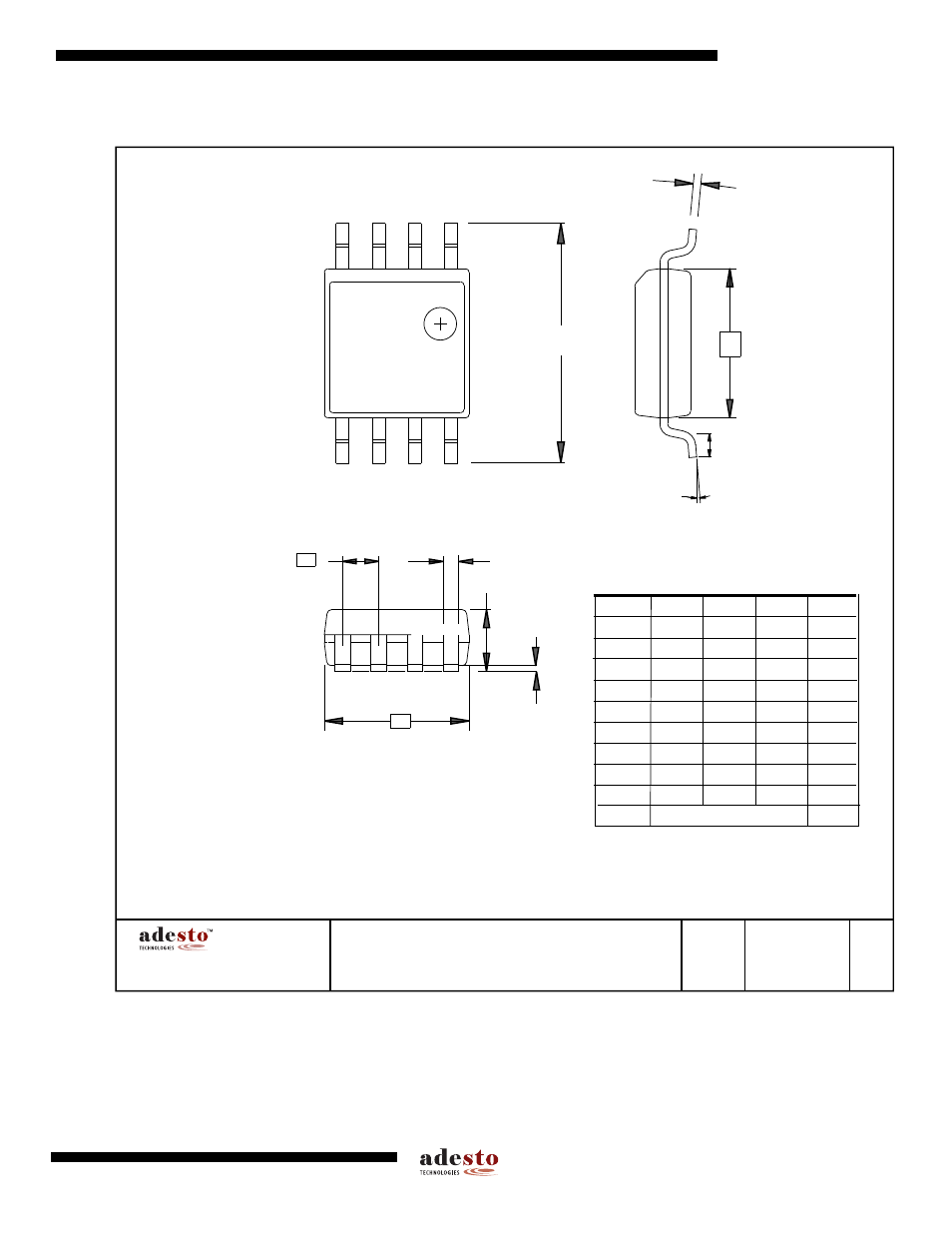

17.3 8S2 – EIAJ SOIC
TITLE DRAWING NO. GPC REV.
Package Drawing Contact:
[email protected] 8S2 STN F
8S2, 8-lead, 0.208” Body, Plastic Small
Outline Package (EIAJ)
4/15/08
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
Notes: 1. This drawing is for general information only; refer to EIAJ Drawing EDR-7320 for additional information.
2. Mismatch of the upper and lower dies and resin burrs aren't included.
3. Determines the true geometric position.
4. Values b,C apply to plated terminal. The standard thickness of the plating layer shall measure between 0.007 to .021 mm.
A 1.70 2.16
A1 0.05 0.25
b 0.35 0.48 4
C 0.15 0.35 4
D 5.13 5.35
E1 5.18 5.40 2
E 7.70 8.26
L 0.51 0.85
q 0° 8°
e 1.27 BSC 3
qq
1 1
N N
E E
TOP VIEW TOP VIEW
C C
E1 E1
END VIEW END VIEW
A A
b b
L L
A1 A1
e e
D D
SIDE VIEW SIDE VIEW
