Config Load Button: If you click on this button, the corresponding configuration is
loaded in the 9223-SA. It will replace the currently-running configuration. DashBoard™
will take a few seconds to reload (longer if you are accessing over a wide-area network),
but the actual configuration in the 9223-SA is virtually instantaneous. The Status
Message Area will indicate the result of the operation.
•
Config Delete Button: If you click on this button, the corresponding configuration and
its description are deleted.
•
Config Save Button: If you click on this button, the current configuration is saved on the
corresponding slot, possibly replacing the configuration saved there if it is not empty.
•
Download Config: If you click on the Save button, the corresponding file is downloaded
to your computer. This feature is provided to allow configuration backups.
If you save a configuration to your computer, and later wish to restore it to the 9223-SA, use the
following procedure:
1. On DashBoard™, open the user interface for this device.

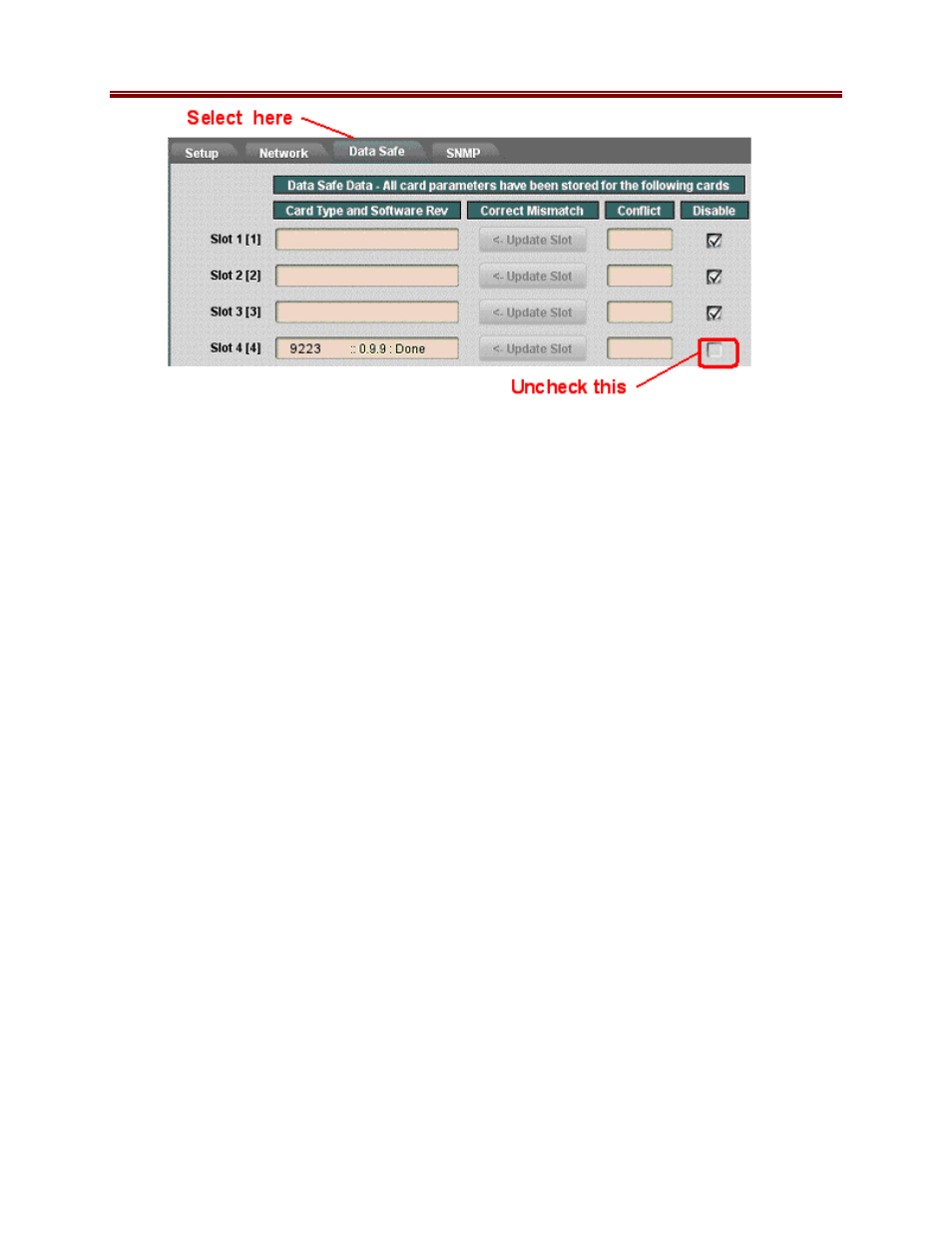

2. Select the Data Safe tab in the configuration area.
3. Uncheck the Disable checkbox corresponding to the unit you wish to restore the
configuration. This step is depicted below.
