3
9061 Function Submenu List and Descriptions
3-44 9061 PRODUCT MANUAL 9061-OM (V4.9)

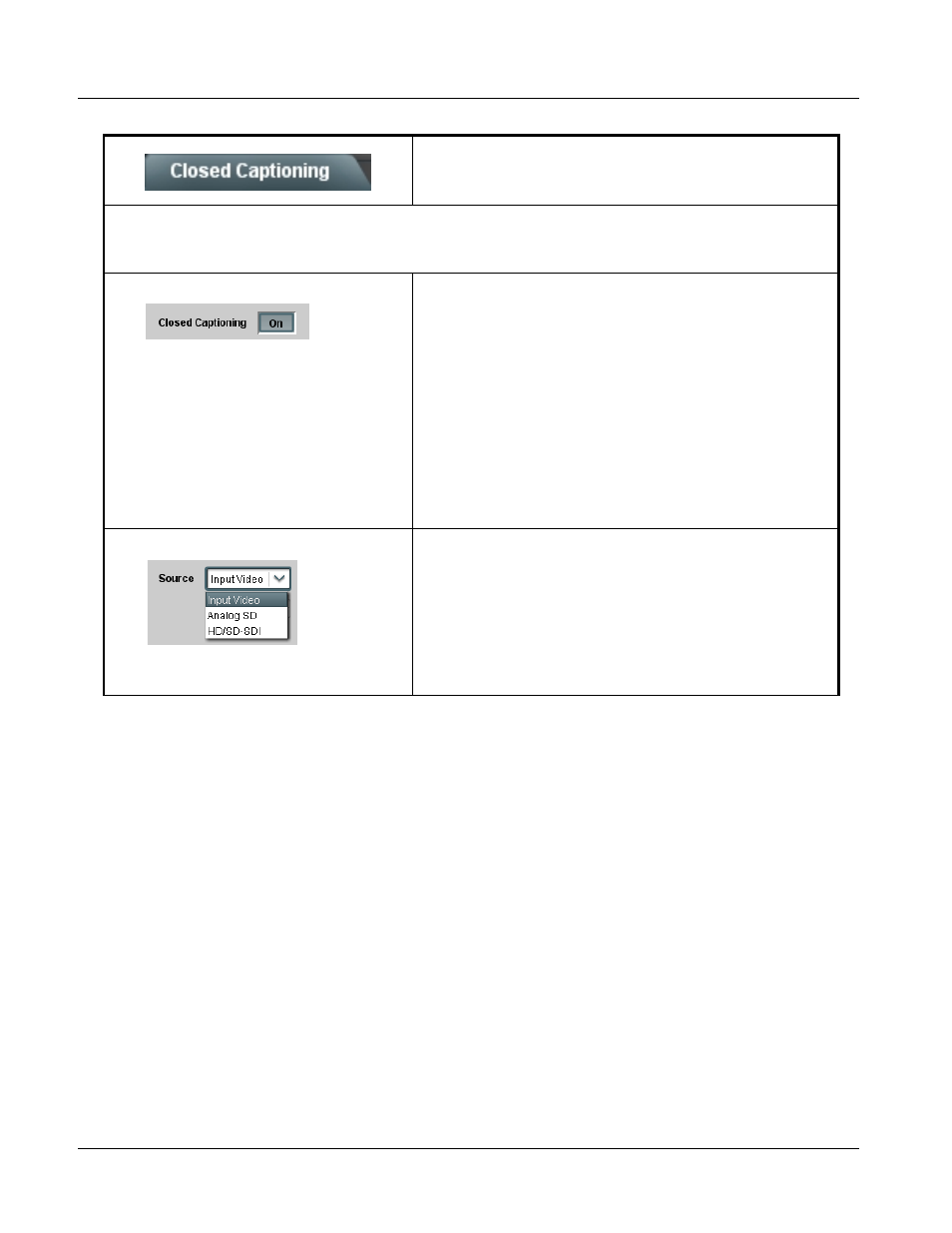

Provides support for closed captioning setup.
Note: When receiving HD-SDI, both CEA 608 and CEA 708 are supported, with CEA 608 and CEA 708 (containing CEA 608
packets) converted to line 21 closed captioning on outputs down-converted to SD (on up-convert of SD, only CEA 608
closed captioning is generated).
• Closed Captioning On/Off Turns on or turns off the Closed Captioning on the output.
Note: • When set to On, closed captioning is set to standard default line
number. See Ancillary Data Line Number Locations and Ranges
(p. 3-8).
• The card does not check for conflicts on a given line number.
Make certain selected line is available and carrying no other data.
• Closed captioning line may contain active unintended data even if
closed captioning is set to Off. If closed captioning is not to be
used, it is recommended to use the Top Line Suppression
control to eliminate the possibility of this unintended data from
appearing in the active video area. (See Scaler tab (p. 3-14) Top
line suppression control for more details.)
• Closed captioning On/Off will not remove existing packets unless
the Scaler is enabled. To remove packets without changing output
format, set Scaler to Enabled and HD:Convert to: to Same as
Input. (See Scaler tab (p. 3-14) Top line suppression control for
more details.)
• Closed Captioning Source
Closed Captioning
Selects the video format that carries the Closed Captioning (CC) video
stream as follows:
• Input Video: Sets the 9061 to receive CC stream from the currently
selected input format (as selected using the Video Signal Controls
functions.
• Analog SD: Sets the 9061 to receive analog SD CC stream on the
analog inputs (Y/composite, Pr/C, and Pb inputs) regardless of
video input source.
• HD/SD-SDI: Sets the 9061 to receive either HD or SD CC stream on
the SDI input regardless of video input source.
Table 3-2 9061 Function Submenu List — continued
