Operating Instructions
Troubleshooting
Access the Card Info pane for a specific card by clicking the card slot position
in the Card Access/Navigation Tree pane (as shown in the example in Figure
3-11).

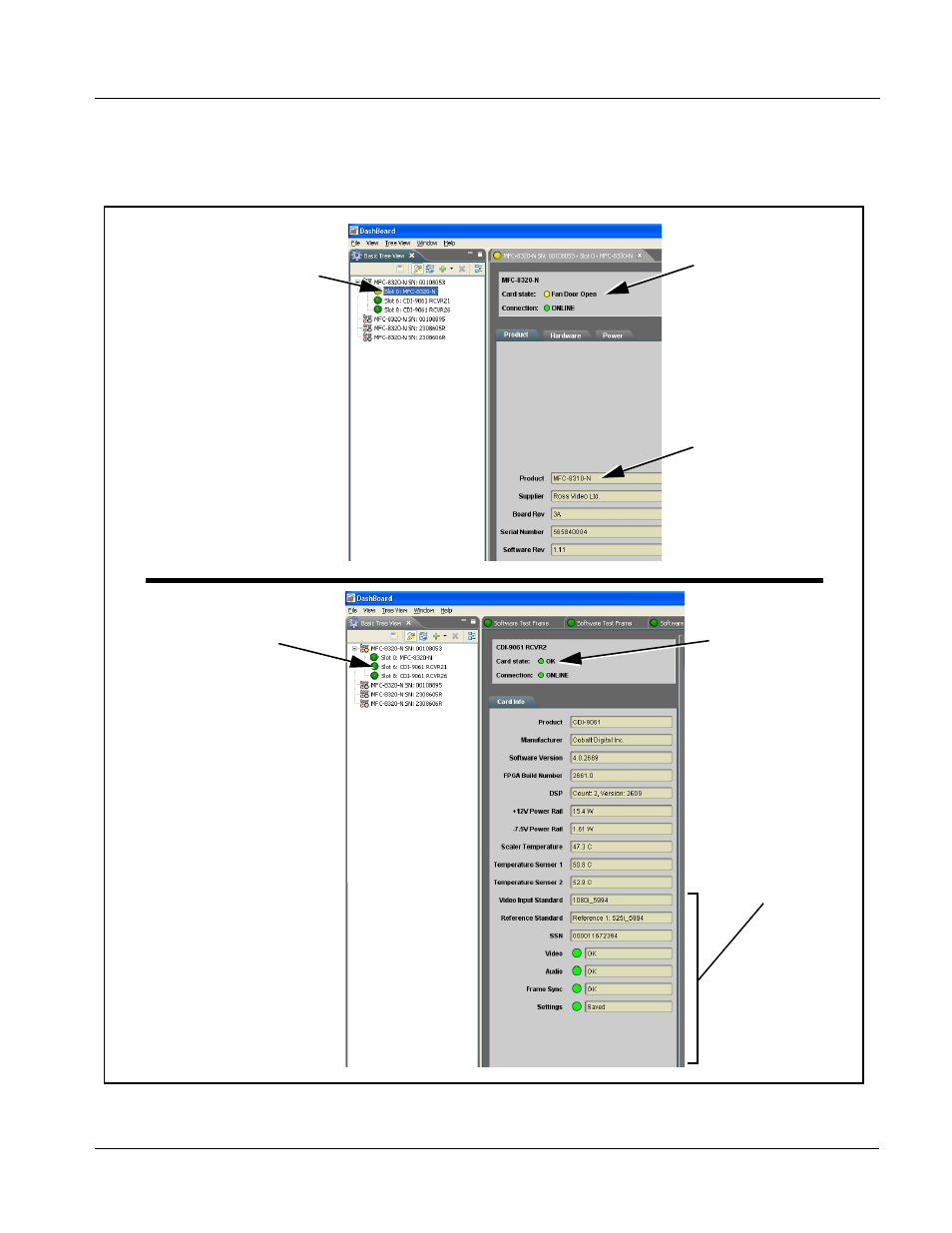

Figure 3-11 Selecting Specific Cards for Card Info Status Display
By clicking on “Slot 0” in this
example, Card Info is displayed for
frame Network Controller Card
Status for selected card is
shown here (in this
example, connection OK
and “Fan Door Open”
alert)
Card general information
is displayed in lower
portion of Card Info pane
By clicking on “Slot 6:
CDI-9061 RCVR21” in this
example, Card Info is shown
for 9061 card in slot 6
Status for selected
card is shown here
(in this example, all
indications are OK)
Where applicable,
additional status is
displayed (as shown in
this example)
