9061 Function Submenu List and Descriptions
3-42 9061 PRODUCT MANUAL 9061-OM (V4.9)

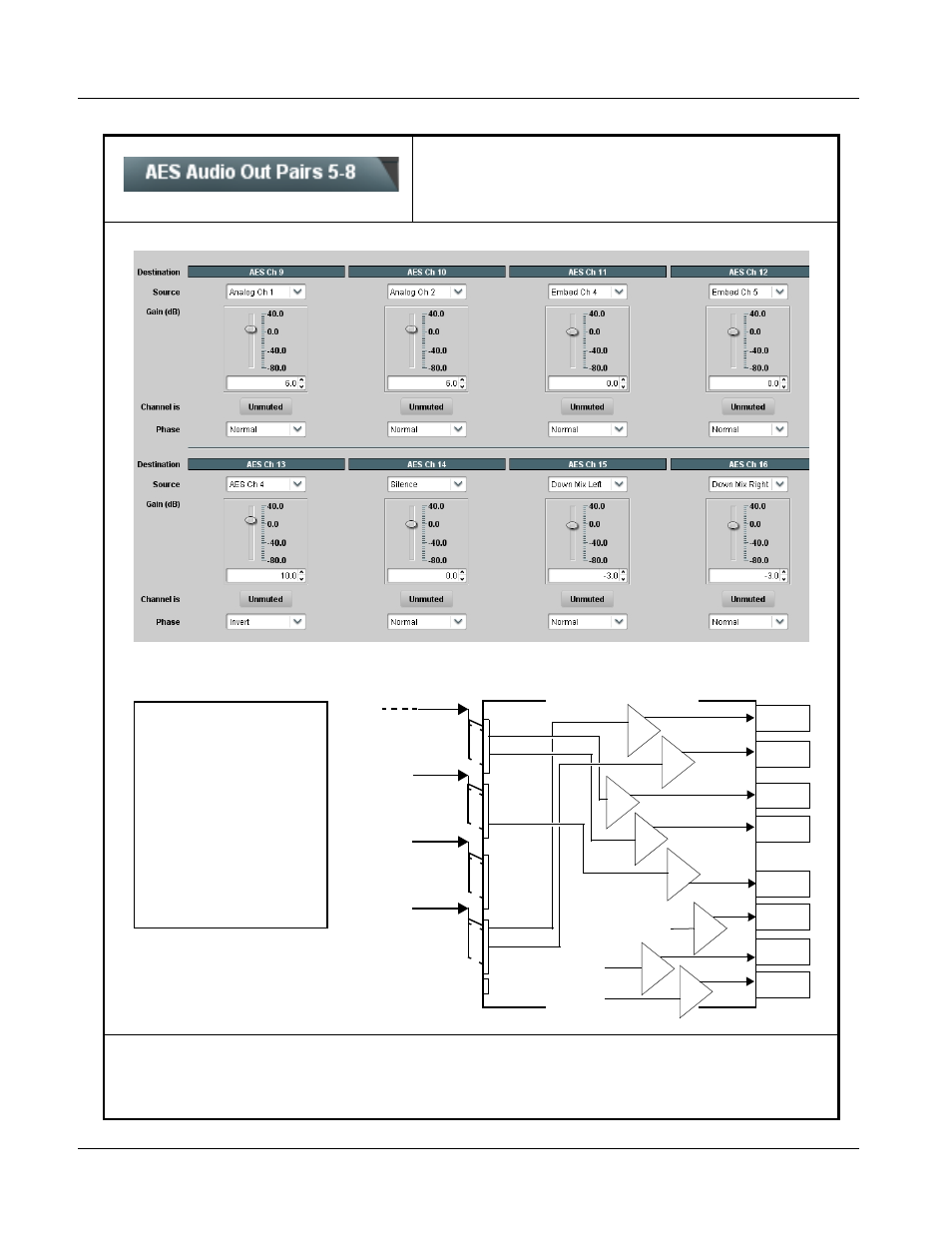

AES Audio Out Pairs 5-8
Routes audio sources to AES output channels 9 thru 16
(AES Audio Out Pairs 5-8). Also provides Gain, Muting,
and Phase Invert controls for each channel.
Note: • AES Ch 9 thru AES Ch 16 have controls that are identical to the Source, Gain, Mute, and Phase controls described
for AES Ch 1. Refer to AES Audio Out Pairs 1-4 on page 3-38 for descriptions of these controls.
• For each channel, its source and destination should be considered and appropriately set. Unused destination channels
should be set to the Silence selection.
Table 3-2 9061 Function Submenu List — continued
AES I/O (1-4)
AES IN (5-8)
AN-AUD
IN (1-8)
6 dB
6 dB
0 dB
0 dB
10 dB
0 dB
–3 dB
+
+
+
+
–
+
+
Embedded
Channels 1 – 16
Down Mix L
AES Ch 4
AES Ch 9
AES Ch 10
AES Ch 11
AES Ch 12
AES Ch 13
AES Ch 14
AES Ch 15
AES Ch 16
AES Audio Out
Pairs 5-8
(Ch 9-16)
Analog Ch 1
Embed Ch 4
Embed Ch 5
Analog Ch 2
–3 dB
+
Silence
Down Mix R
The example above shows
various Source selections and
individual audio control settings
for various audio sources fed to
the Destination channels AES
Ch 9 thru AES Ch 16, with the
resulting setup (right).
The source-to-destination
correlation shown here is only
an example; any of the sources
on the left can connect to any of
the destinations on the right, or
receive sources. Available
sources also include up to four
tone generators (not shown
here).
