Control and Display Descriptions
3-2 9061 PRODUCT MANUAL 9061-OM (V4.9)
Note: When a setting is changed, settings displayed on DashBoard™ (or a Remote
Control Panel) are the settings as effected by the 9061 card itself and
reported back to the remote control; the value displayed at any time is the
actual value as set on the card.
Function Submenu/Parameter Submenu Overview
The functions and related parameters available on the 9061 card are organized
into function submenus, which consist of parameter groups as shown below.
Figure 3-1 shows how the 9061 card and its submenus are organized, and also
provides an overview of how navigation is performed between cards, function
submenus, and parameters.

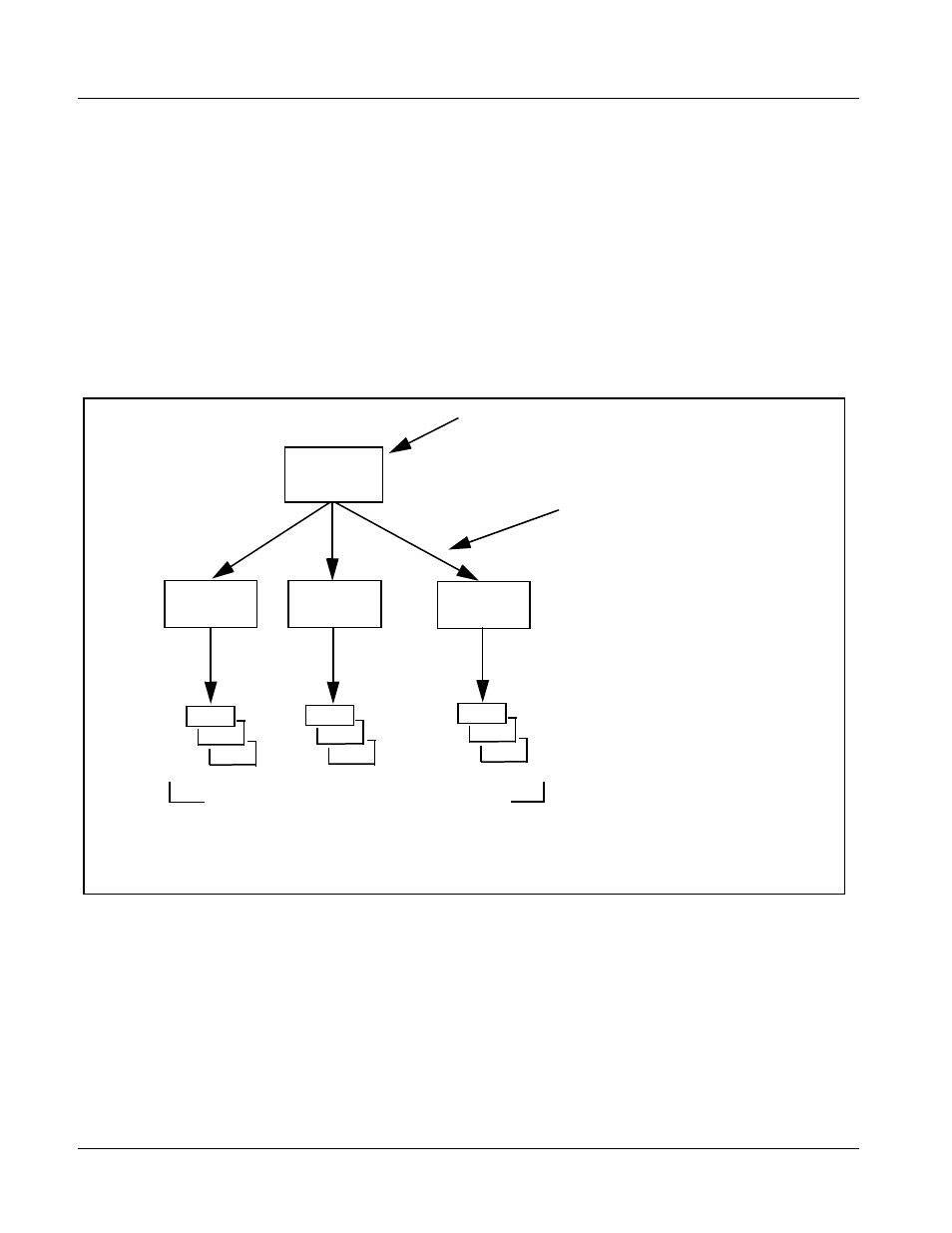

Figure 3-1 Function Submenu/Parameter Submenu Overview
9061
Submenu a Submenu b Submenu z • • •
Individual Parameters
Each submenu consists of groups of parameters
related to the function submenu. Using the “Video
Proc” function submenu example, the individual
parameters for this function consist of various video
processor parameters such as Luma Gain, Saturation,
and so on.
If using DashBoard™ or a Remote Control Panel, the
desired 9061 card is first selected.
The desired function submenu is next
selected.
Function Submenus consist of parameter
groups related to a particular 9061 card
function (for example, “Video Proc”).
