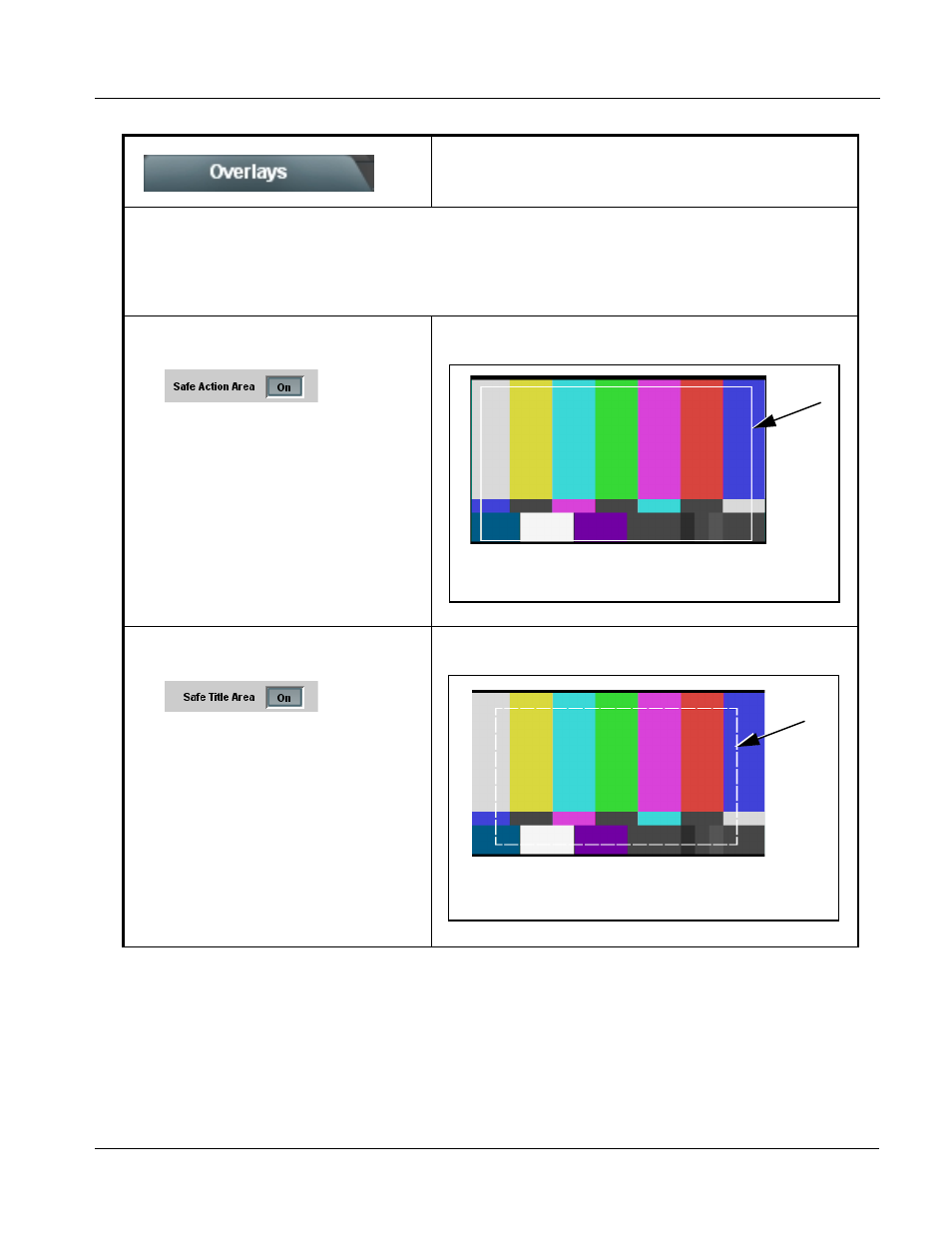

9061 Function Submenu List and Descriptions
Allows Safe Action and/or Safe Title overlays to be
added to the image. The overlays can be used to
identify safe action and safe title areas within the image.
Note: • Overlay markers using this function are for setup only. When enabled, these markers are embedded in the SDI video
output signal and may appear in the image. Use this function only on preview video and not on-air video. Make certain
any overlay tools are turned off when done.
• Overlays are functional only when Scaler is enabled.
• Multiple overlay markers described below can be simultaneously enabled as desired.
• Safe Action Area
Overlays
When enabled (On), turns on the Safe Action Area overlay.
• Safe Title Area When enabled (On), turns on the Safe Title Area overlay.
Table 3-2 9061 Function Submenu List — continued
When enabled (On), outline shows Safe Action Area boundary.
Color of boundary is selected using Color drop-down list.
When enabled (On), outline shows Safe Title Area boundary. Color
of boundary is selected using Color drop-down list.
