9061 Function Submenu List and Descriptions
Audio Routing Example Using DashBoard™

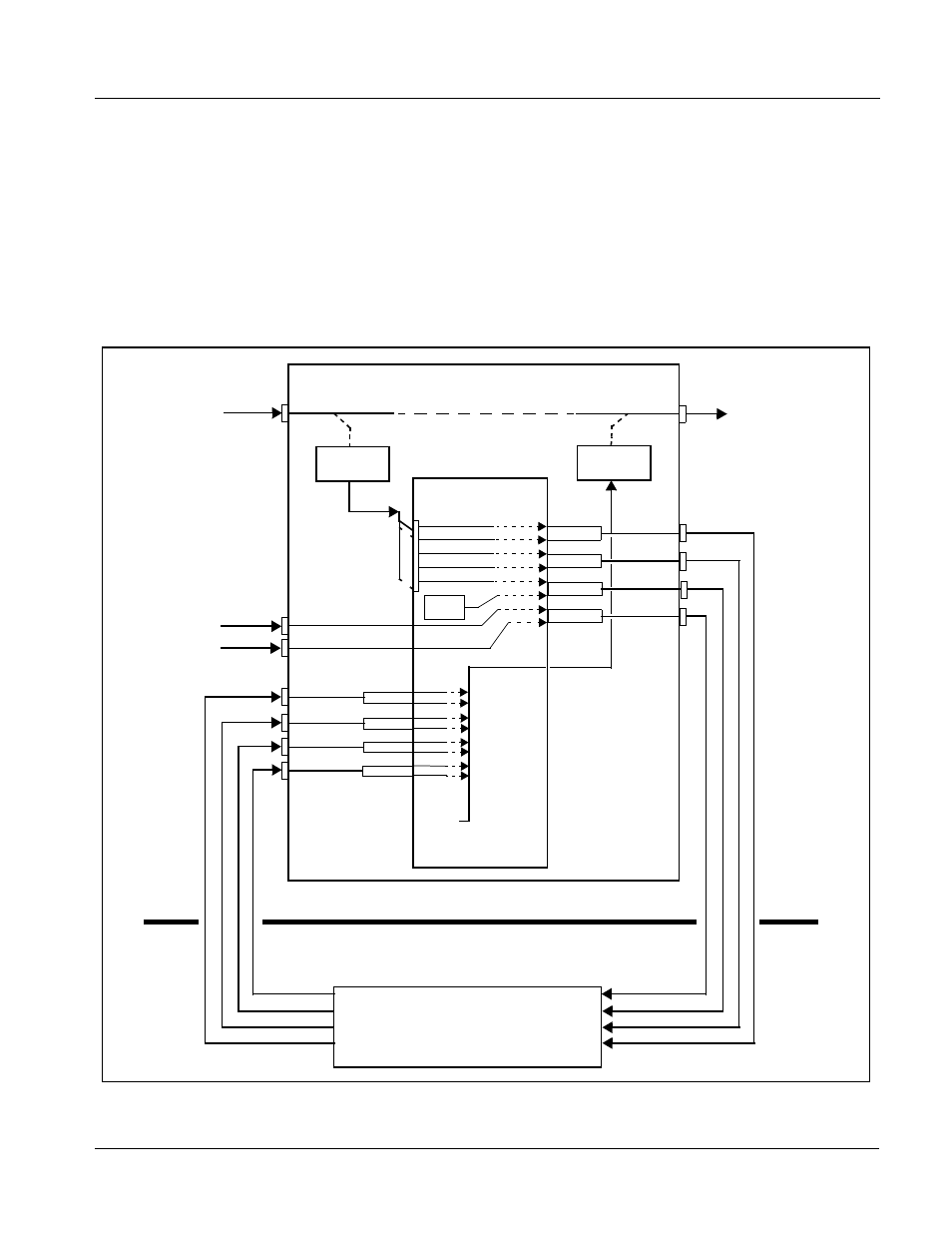

Figure 3-6 shows an example of using the 9061 Embedded Audio Group and
AES Output Pairs functions to de-embed audio, route the audio to discrete
outputs for post-production processing, and finally re-embed the audio into
the SDI video output. Additionally, the example shows how external analog
and internal tone generator sources can be embedded into the SDI output.
Note that the source and destination correlations shown here are only
examples; any source can route to any destination.
