9061 Function Submenu List and Descriptions
3-16 9061 PRODUCT MANUAL 9061-OM (V4.9)
(continued)

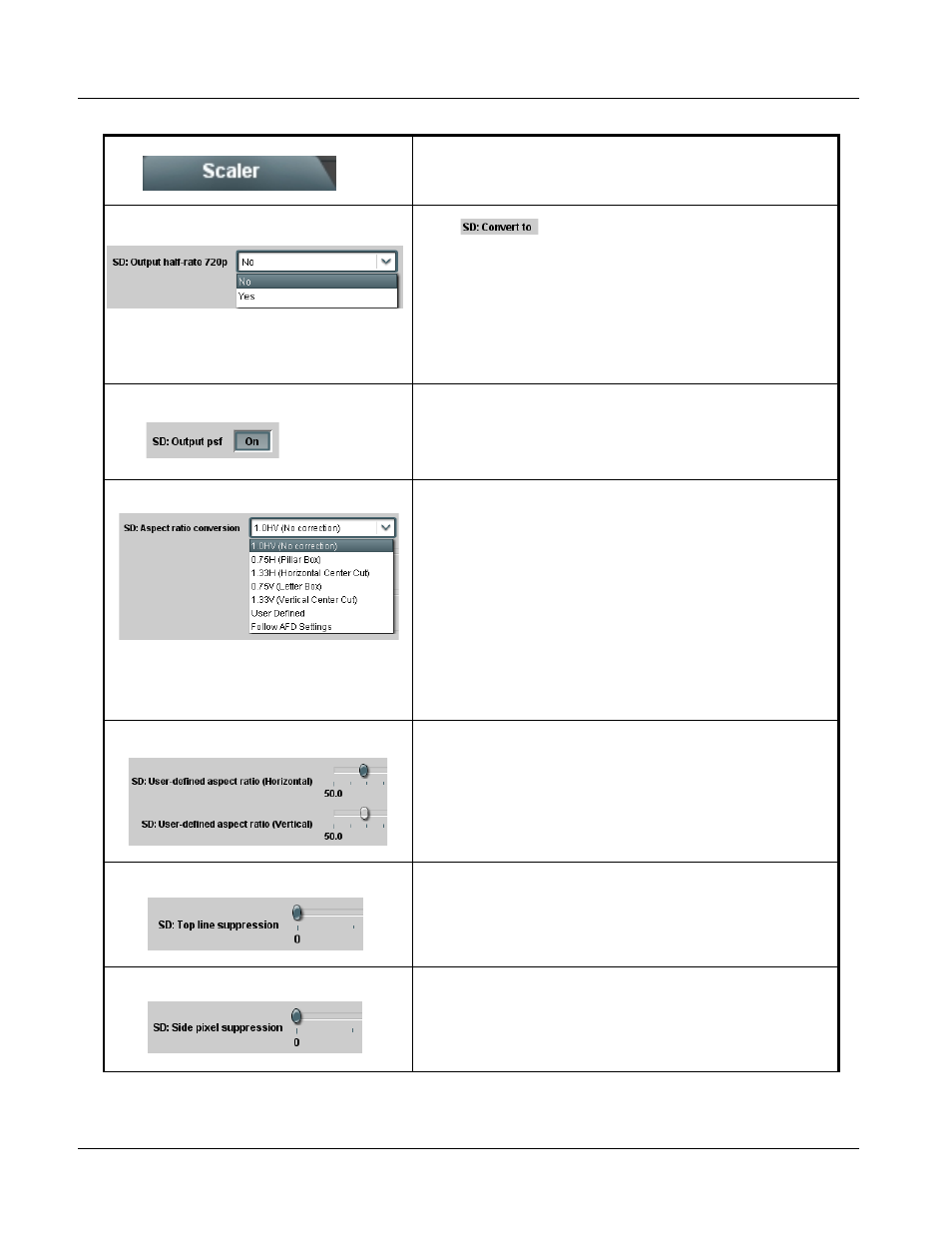

• SD: Output Half-rate 720p When drop-down list is set to 720p, converts output to
720p half-rate.
Yes/No control functions as follows:
• No: Do not apply half-rate; leave output at standard frame rate
• Yes: Output set at half- rate
Note: Half-rate outputs are available for the 720p frame rates listed under
“720p” in the “Scaler Video Format Conversions” table on the
previous page.
• SD: Output PsF When enabled (and with the output video is set to 1080 film), converts the
output to1080PsF (segmented frame progressive).
• SD: Aspect Ratio Conversion Selects between the standard preset Aspect Ratio Conversions (ARC)
shown here, as well as User Defined and Follow AFD Settings.
• User Defined settings allow custom user-defined H and V aspect
ratio control.
• Follow AFD Settings sets the output aspect ratio to track with AFD
settings performed in AFD (p. 3-19).
Note: This function is intended for aspect ratio adjustment of a particular
signal without AFD considerations.
• If ARC is being used on a case-by-case basis for a particular
signal, it is easier to use the Scaler ARC tools described here.
• If AFD is to be used to set and apply a standard AFD code label
for ARC, use Follow AFD Settings. Do not perform ARC here;
instead, perform ARC as described in the AFD function
description on page 3-19.
• SD: User-defined aspect ratio (Horizontal) and (Vertical) controls adjust horizontal and vertical zoom
percentage. Settings less than (<) 100% provide zoom-out; settings
greater than (>) 100% provide zoom-in.
(50% to 200% range in 0.1% steps; null = 100.0)
• SD: Top line suppression Selects the number of lines suppressed at the beginning of video. In this
manner, the image is scaled proportionally to replace the top few lines
suppressed using this control. When upconverting from SD to HD, using
this control can hide unwanted closed caption or timecode data.
(Range is 0 thru 10 lines.)
• SD: Side pixel suppression Selects the number of pixels at the left and right horizontal margins within
the SAV and EAV portions of each line.
(Range is 0 thru 20 pixels.)
Table 3-2 9061 Function Submenu List — continued
