9061 Functional Description
1-22 9061 PRODUCT MANUAL 9061-OM (V4.9)
9061 Rear I/O Modules
The 9061 physically interfaces to system video and audio connections using a
Rear I/O Module. Figure 1-10 shows a typical 9061 Rear I/O Module.
All inputs and outputs shown in the 9061 Functional Block Diagram (Figure
1-1) enter and exit the card via the card edge backplane connector. The
Rear I/O Module breaks out the 9061 card edge connections to industry
standard connections that interface with other components and systems in the
signal chain.
In this manner, the particular inputs and outputs required for a particular
application can be accommodated using a Rear I/O Module that best suits the
requirements. The required input and outputs are broken out to the industry
standard connectors on the Rear I/O Module; the unused inputs and outputs
remain unterminated and not available for use.
The full assortment of 9061 Rear I/O Modules is shown and described in
9061 Rear I/O Modules (p. 2-6) in Chapter 2, “Installation and Setup”.

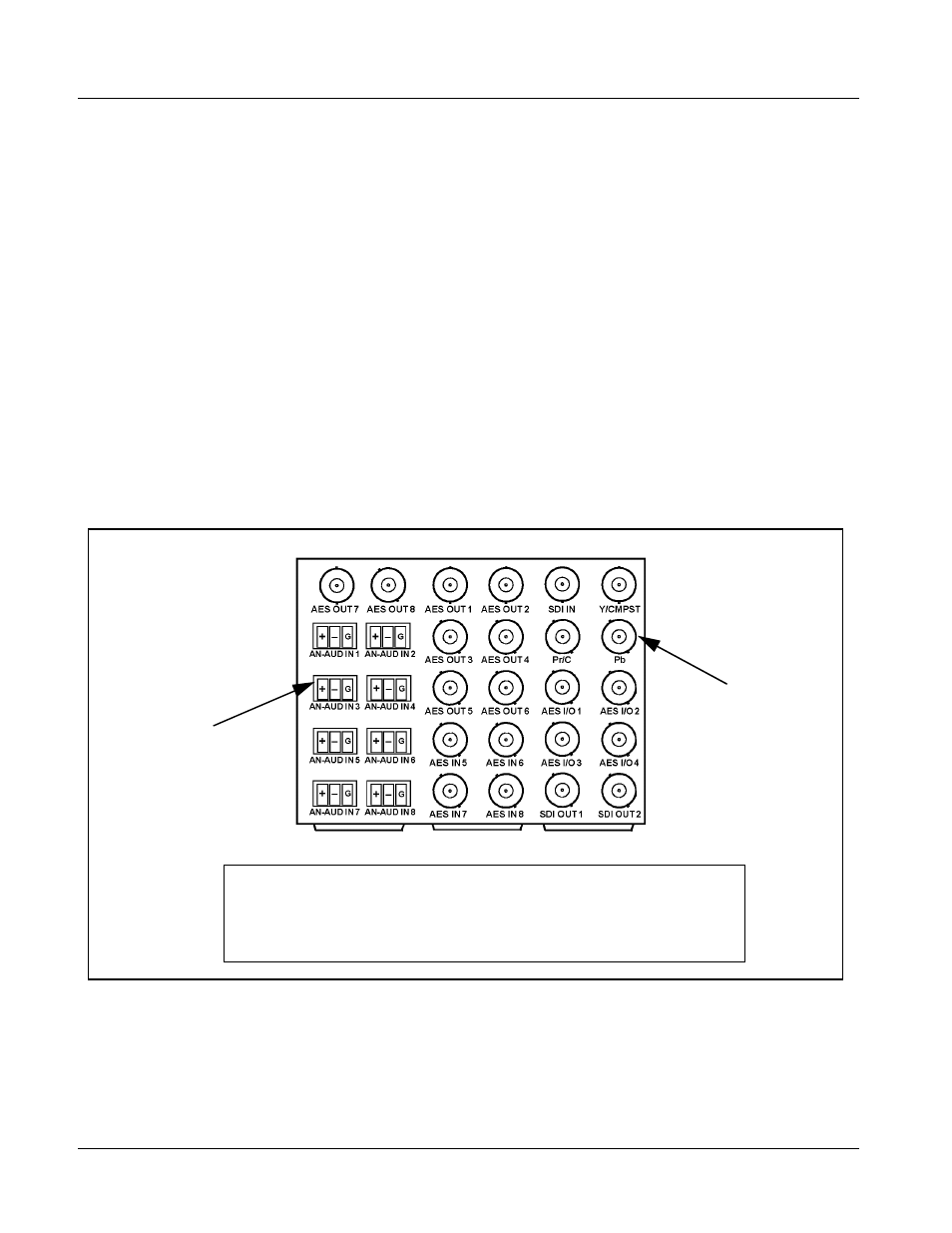

Figure 1-10 Typical 9061 Rear I/O Module
BNC connectors for coaxial
video and AES audio signals
In this example, an RM-9061-G Rear I/O Module provides a connection interface for the
signal types shown here.
Rear I/O Modules RM-9061-A through RM-9061-F offer other options particularly suited to
various requirements.
3-wire Phoenix terminal block
connectors for balanced
analog audio signals
