9061 Functional Description
Figure 1-11 shows a 9061 card using an RM-9061-B Rear I/O Module. Using
this Rear I/O Module, this module provides industry standard break-out
connections for the following inputs and outputs required by this application:
• Inputs:
• HD/SD SDI IN – dual-rate HD/SD-SDI input
• Y/Cmpst IN , Pr/C IN , Pb IN – analog composite/component video
inputs
• AN-AUD IN (1-4) – balanced analog audio inputs (inputs 5-8 unused)
• Outputs:
• SDI OUT – HD/SD-SDI buffered video outputs
The other 9061 inputs and outputs not accommodated by this Rear I/O
Module (shown in gray in Figure 1-11) remain unterminated.

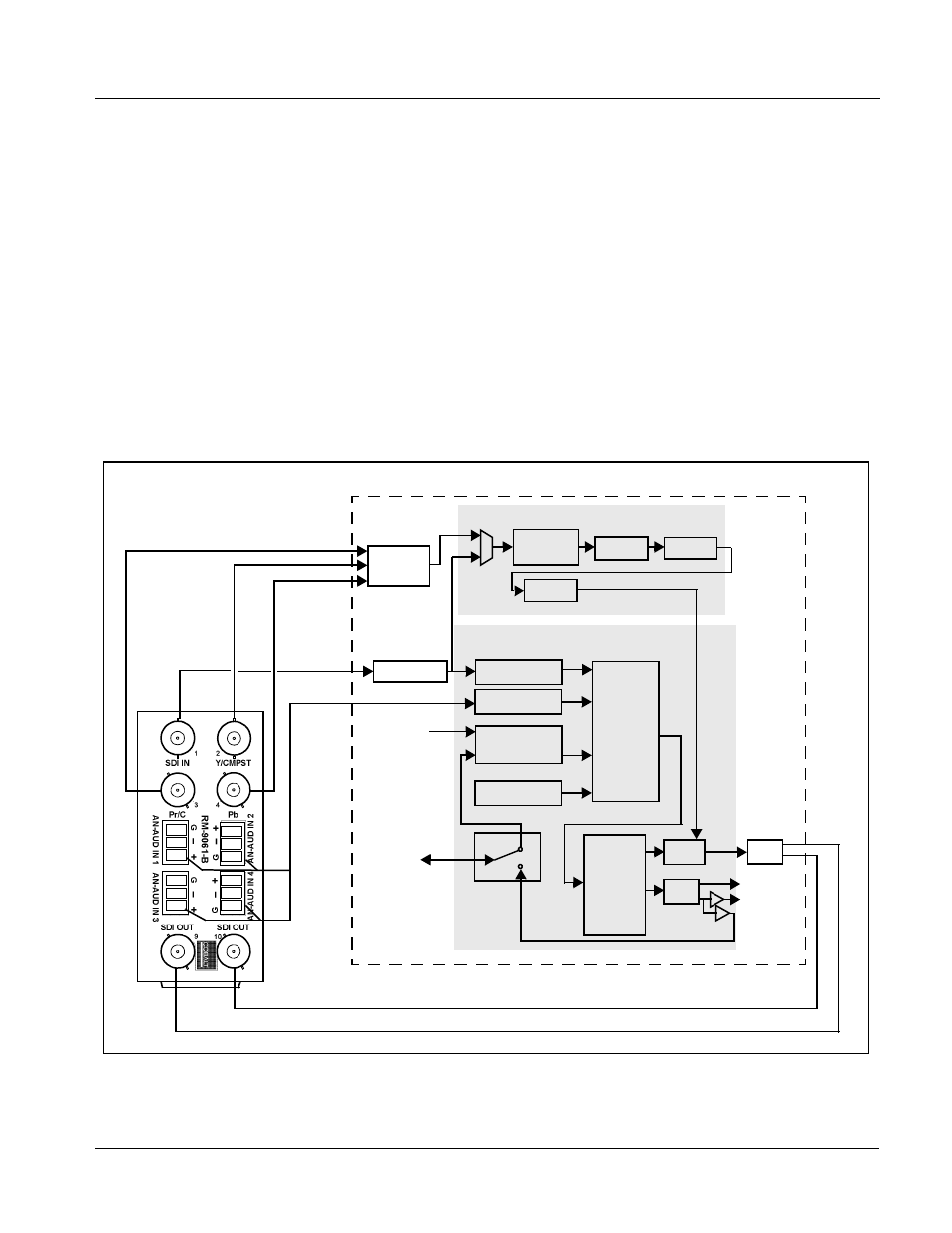

Figure 1-11 9061 with RM-9061-B Rear I/O Module
HD/SD
SDI IN
AN-AUD
IN (1-4)
AES IN (5-8)
SDI OUT
Video Processor
Audio Processor
Y/Cmpst IN
Pr/C IN
Pb IN
AES I/O
(1-4)
9061
AES OUT
(5-8)
(1-4)
