9061-OM (V4.9) 9061 PRODUCT MANUAL 2-9
Installation and Setup
Installing a Rear I/O Module
RM20-9061-G Provides the following connections:
• HD/SD-SDI coaxial input (SDI IN)
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y/Cmpst, Pr/C, and Pb, respectively)
• Four dedicated AES coaxial audio inputs
(AES IN 5 thru AES IN 8)
• Eight dedicated AES coaxial audio outputs
(AES OUT 1 thru AES OUT 8)
• Four AES I/O coaxial input/outputs (AES I/O 1 thru
AES I/O 4; I/O function of each connection is
user-configurable)
• Eight analog balanced audio inputs (AN-AUD IN 1
thru AN-AUD IN 8)
• Two buffered SDI coaxial outputs (SDI OUT)
Note: AES OUT 1 thru AES OUT 4 on
RM20-9061-G Rear I/O Module always
function as outputs regardless of whether AES
I/O 1 thru AES I/O 4 are used as inputs or
outputs.
RM20-9061-E-DIN-HDBNC
High-density rear modules provides the following
connections:
• HD/SD-SDI coaxial input (SDI IN)
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y/Cmpst, Pr/C, and Pb, respectively)
• Four dedicated AES coaxial audio inputs
(AES IN 5 thru AES IN 8)
• Four AES I/O coaxial input/outputs (AES I/O 1 thru
AES I/O 4; I/O function of each connection is
user-configurable)
• Six dedicated AES coaxial audio outputs
(AES OUT 1 thru AES OUT 6)
• Two buffered SDI coaxial outputs (SDI OUT)
Note: Available equipped with High-Density BNC
(HDBNC) or DIN1.0/2.3 connectors as:
RM20-9061-E-HDBNC or RM20-9061-E-DIN,
respectively.

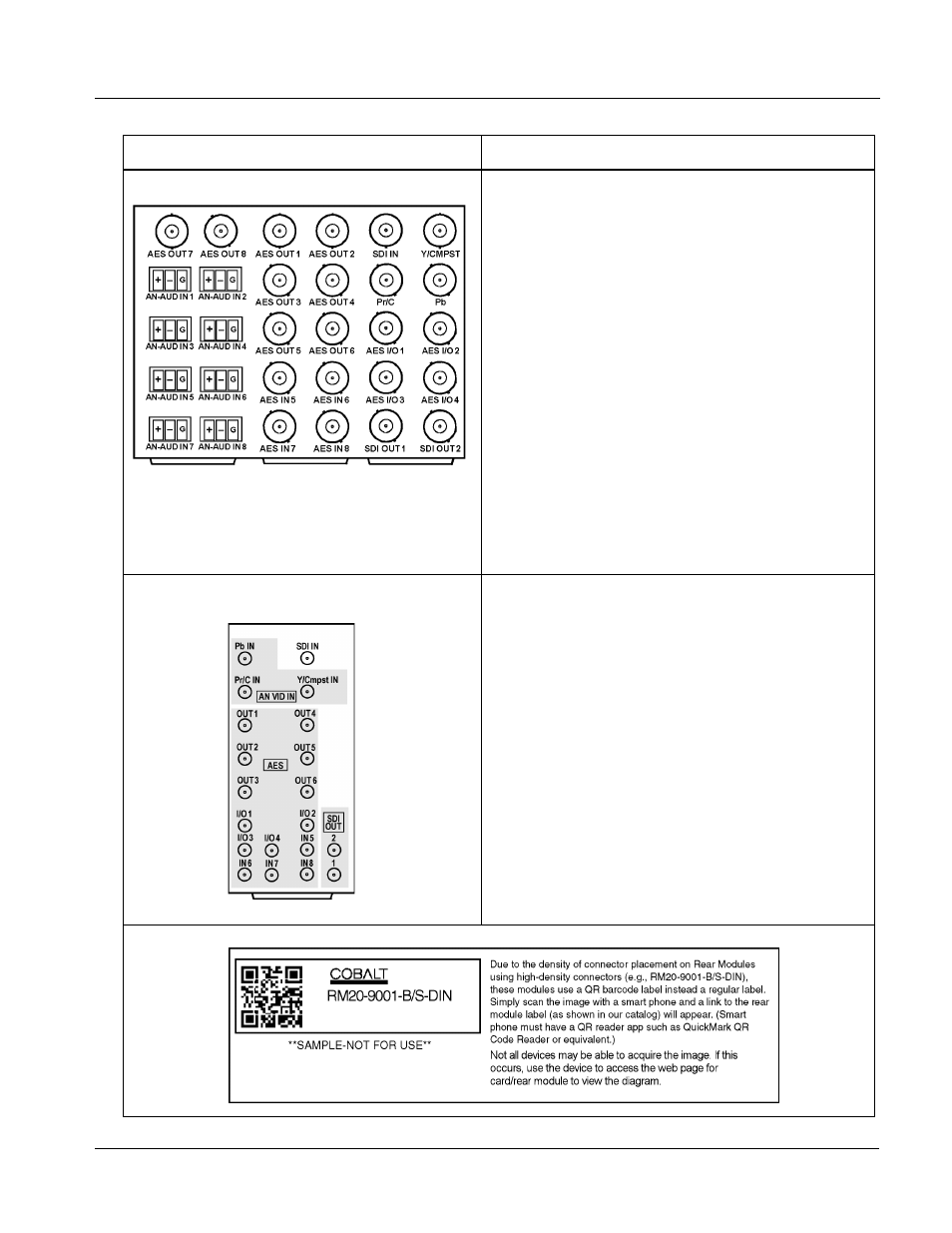

Table 2-1 9061 Rear I/O Modules — continued
9061 Rear I/O Module Description
