9061 Function Submenu List and Descriptions
3-60 9061 PRODUCT MANUAL 9061-OM (V4.9)
In the example here, Embedded Channels 1 thru 5 are de-embedded from the
input SDI data and routed to discrete AES channels 1 thru 5. Also, an internal
tone generator (TG1) and two analog inputs are routed to AES channels 6 thru
8, respectively. Figure 3-6 (sheet 2) shows the 9061 control settings (in this
example, using the DashBoard™ user interface) that result in this routing.

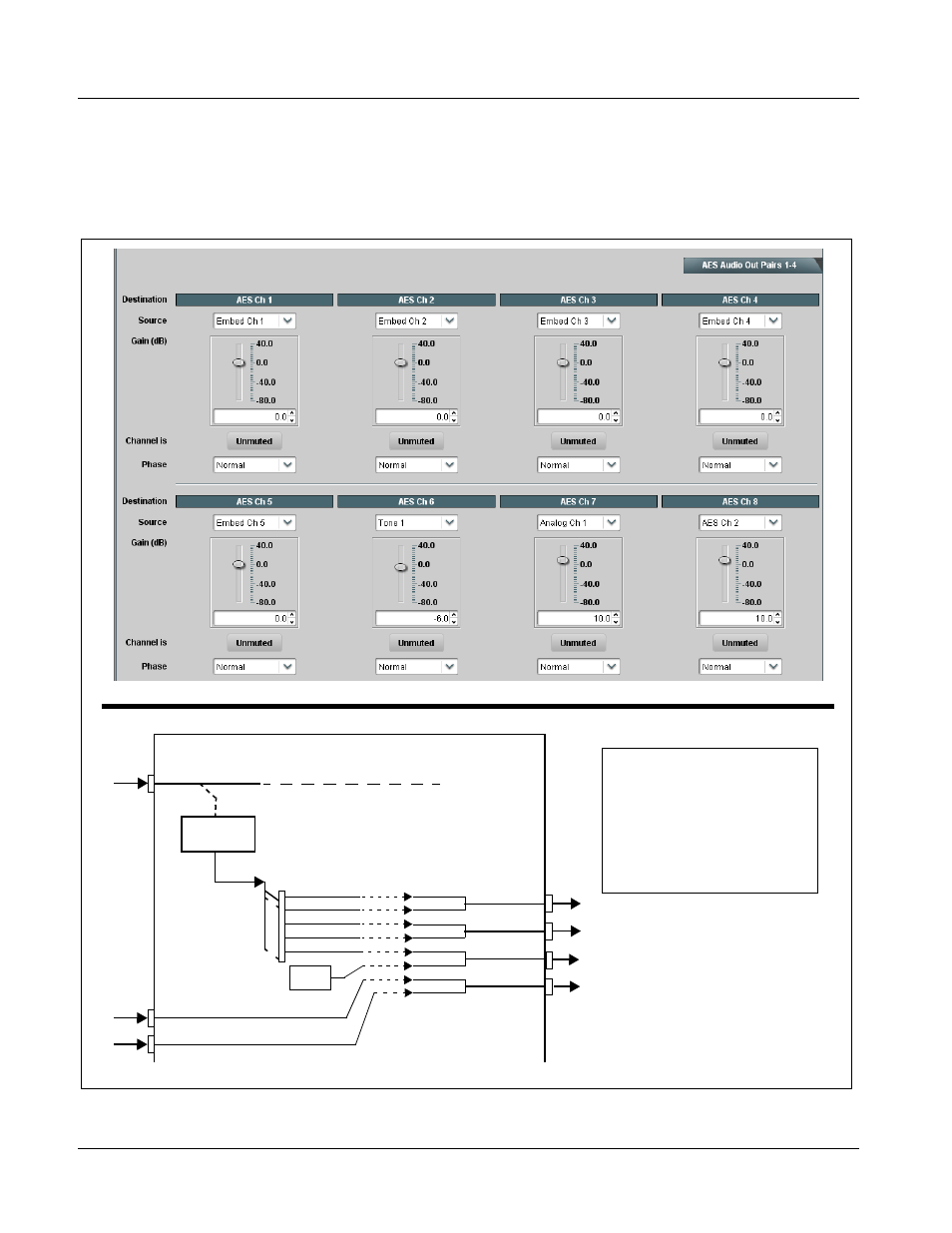

Figure 3-6 Audio Routing Example (Sheet 2 of 3)
AES Ch 1
AES Ch 2
AES Ch 3
AES Ch 4
AES Ch 5
AES Ch 6
AES Ch 7
AES Ch 8
Embed Ch 1
TG1
Embed Ch 2
Analog
Ch 1
SDI IN
Audio
De-Embed
Embed Ch 3
Embed Ch 4
Embed Ch 5
AN-AUD IN 1
AN-AUD IN 2
AES OUT 1
AES OUT 2
AES OUT 3
AES OUT 4
Analog
Ch 2
9061
Using the AES Audio Out Pairs 1-4
function, the Source selections
shown above route the selected
sources to discrete AES channels 1
through 8. These discrete outputs
are then available on the 9061 card
Rear I/O Module AES OUT 1 thru
AES OUT 4 BNC connectors.
