9061 Function Submenu List and Descriptions
3-18
9061 PRODUCT MANUAL
9061-OM (V4.9)
(continued)

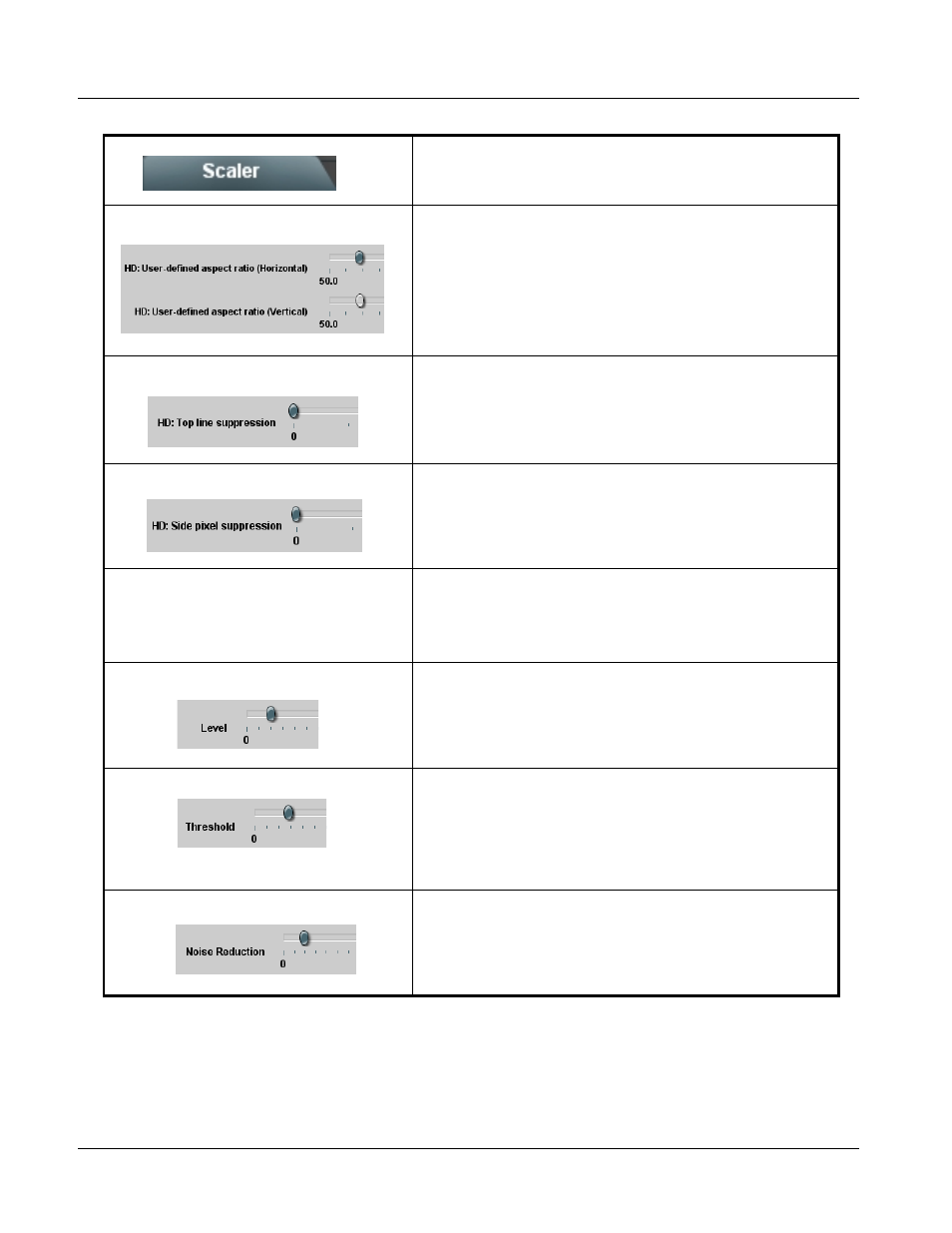

• HD: User-defined aspect ratio
(Horizontal) and (Vertical) controls adjust horizontal and vertical zoom
percentage. Settings less than (<) 100% provide zoom-out; settings
greater than (>) 100% provide zoom-in.
(50% to 200% range in 0.1% steps; null = 100.0)
• HD: Top line suppression
Selects the number of lines suppressed at the beginning of video. In this
manner, the image is scaled proportionally to replace the top few lines
suppressed using this control. When upconverting from SD to HD, using
this control can hide unwanted closed caption or timecode data.
(Range is 0 thru 10 lines.)
• HD:Side pixel suppression
Selects the number of pixels at the left and right horizontal margins within
the SAV and EAV portions of each line.
(Range is 0 thru 20 pixels.)
• Detail Enhancement Controls
Sharpness Level, Threshold, and Noise Reduction controls (individually
described below) which can be used to tailor output video sharpness per
program material and aesthetic preferences.
Note: Detail Enhancement Controls apply to both SD and HD
conversions.
• Sharpness Level Control
Adjusts the aggressiveness of sharpening applied to MPEG video.
Optimum setting results in overall perception of increased sharpness,
while avoiding pattern noise artifacts.
(Range is 0 thru 255)
• Sharpness Threshold Control
Adjusts the point at which sharpening rules become active. Data below
the threshold setting is passed unaffected.
Higher settings allow for a more subtle sharpness enhancement
(especially with content showing motion). Lower settings allow more
content in general to be acted upon by the enhancement process.
(Range is 0 thru 255)
• Noise Reduction Control
Adjusts the amount of statistical low-pass filtering applied to the data.
Using this control, regular pattern noise artifacts from the sharpening
process can be reduced, resulting in subjectively smoother raster
backgrounds and detail boundaries.
(Range is 0 thru 63)
Table 3-2
9061 Function Submenu List — continued
