1
9061 Functional Description
1-10 9061 PRODUCT MANUAL 9061-OM (V4.9)

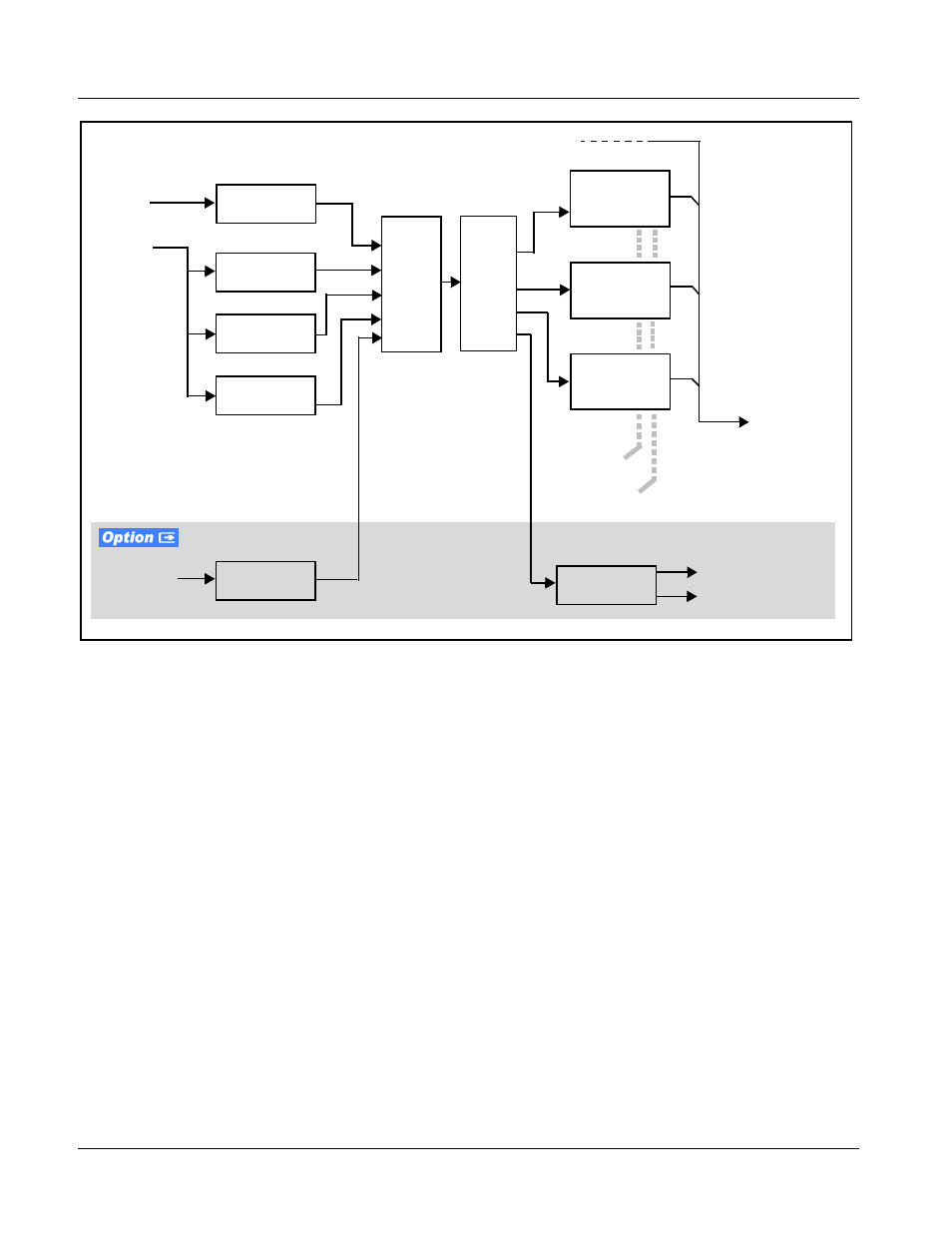

Figure 1-2 Timecode Processor
Closed Captioning Processor
This function provides support for closed captioning setup. When enabled,
the function selects from current input video, analog SD, or SDI as the source
of closed captioning data. The function also allows the selection of the
ancillary data line number where the ancillary closed caption data is outputted
when the output is HD. When receiving HD-SDI, both CEA 608 and CEA
708 are supported, with CEA 608 and CEA 708 (containing CEA 608
packets) converted to line 21 closed captioning on outputs down-converted to
SD (on up-convert of SD, only CEA 608 closed captioning is generated).
Dolby ® Metadata Extractor/Re-inserter
This function extracts and preserves Dolby ® metadata from the input SDI, and
in turn allows the metadata to be re-inserted in the output SDI. This allows
scaling and/or format conversions without losing Dolby
® metadata. (The
9061 does not offer Dolby ® decoding or encoding, but will pass Dolby ®
E
and/or Dolby ® Digital™ encoded signals and metadata intact.) The extracted
metadata is buffered and then output on a user-selectable line number on the
SDI output, and on the
RS-485 I/O connector (on cards equipped with
appropriate Rear I/O Module).
Analog VITC
Detect/Extract
Analog
Video
Input
SDI VITC
Detect/Extract
SDI ATC_LTC
Detect/Extract
SDI ATC_VITC
Detect/Extract
Priority/
Select
SDI
Video
Input
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
HD/SD–SDI
Video Output
Insert
Control
Line
Number
Control
Buffer/
Format
HD/SD–SDI
(From Video Proc)
Audio LTC
Select/Extract
Audio/
RS-485 LTC
Audio/RS-485
LTC Generate
Audio LTC Out
RS-485 LTC Out
