Cobalt Digital COMPASS 9061 Up_Down_Cross Converter - Manual (Page 82)

3
9061 Function Submenu List and Descriptions
3-38 9061 PRODUCT MANUAL 9061-OM (V4.9)
AES Audio Out Pairs 1-4
Routes audio sources to discrete AES output channels
1 thru 8 (AES Audio Out Pairs 1-4). Also provides Gain,
Phase Invert, and Muting controls for each channel.
Table 3-2 9061 Function Submenu List — continued

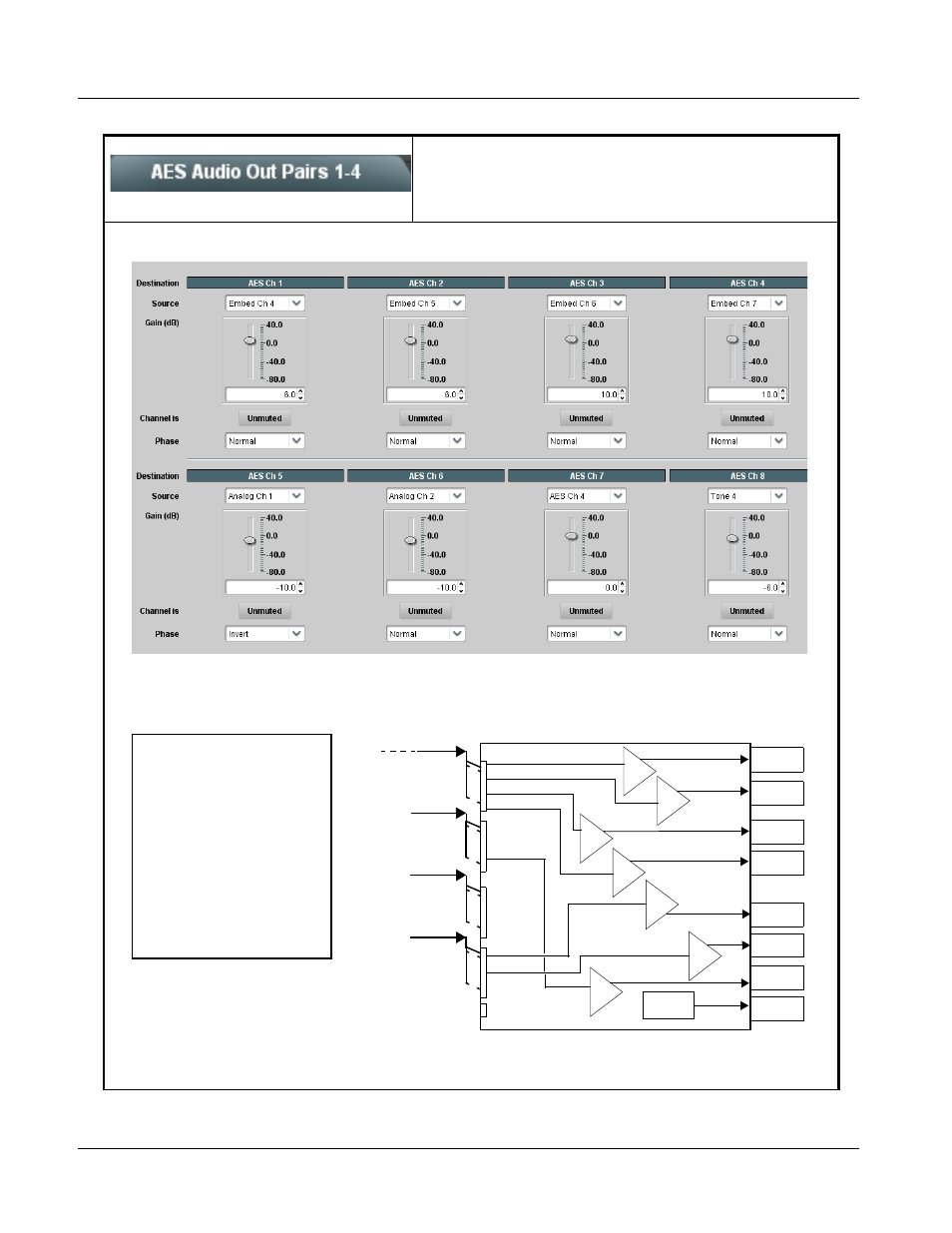

The example above shows
various Source selections and
individual audio control settings
for various audio sources fed to
the Destination channels
AES Ch 1 thru AES Ch 8, with
the resulting setup (right).
The source-to-destination
correlation shown here is only
an example; any of the sources
on the left can connect to any of
the destinations on the right.
The controls shown here are
described in detail on the
following pages.
Embed Ch 4
AES I/O (1-4)
AES IN (5-8)
AN-AUD
IN (1-8)
6 dB
6 dB
10 dB
10 dB
–10 dB
–10 dB
0 dB
+
+
+
+
–
+
+
Embedded
Channels 1 – 16
Embed Ch 5
AES Ch 4
AES Ch 1
AES Ch 2
AES Ch 3
AES Ch 4
AES Ch 5
AES Ch 6
AES Ch 7
AES Ch 8
AES Audio Out
Pairs 1-4
(Ch 1-8)
Analog Ch 1
Embed Ch 6
Embed Ch 7
Analog Ch 2
TG4
–6 dB
