Page 39
9061-OM (V4.9)
9061 PRODUCT MANUAL
2-5
Installation and Setup
Installing a Rear I/O Module

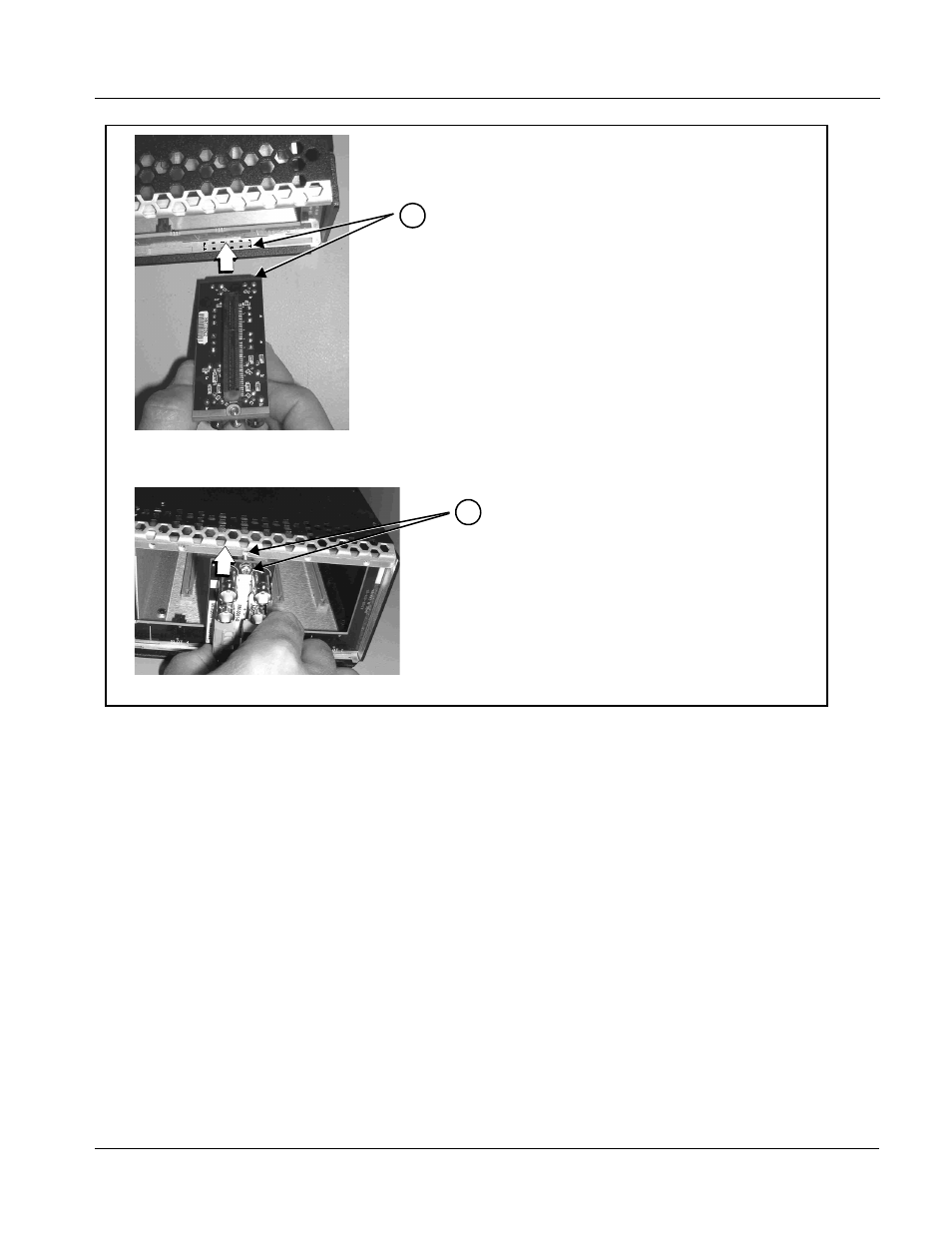

Figure 2-2 Rear I/O Module Installation
Align and engage mounting tab on Rear
I/O Module with the module seating slot
on rear of frame chassis.
Hold top of Rear I/O Module flush against
frame chassis and start the captive screw.
Lightly tighten captive screw.
Note: Rear I/O Modules RM20-9061-C thru RM20-9061-F occupy
two rear module slot mounting locations and use two captive
screws.
Rear I/O Module RM20-9061-G occupies three rear module
slot mounting locations and uses three captive screws.
1
2
