9. Parts List
PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells) 73

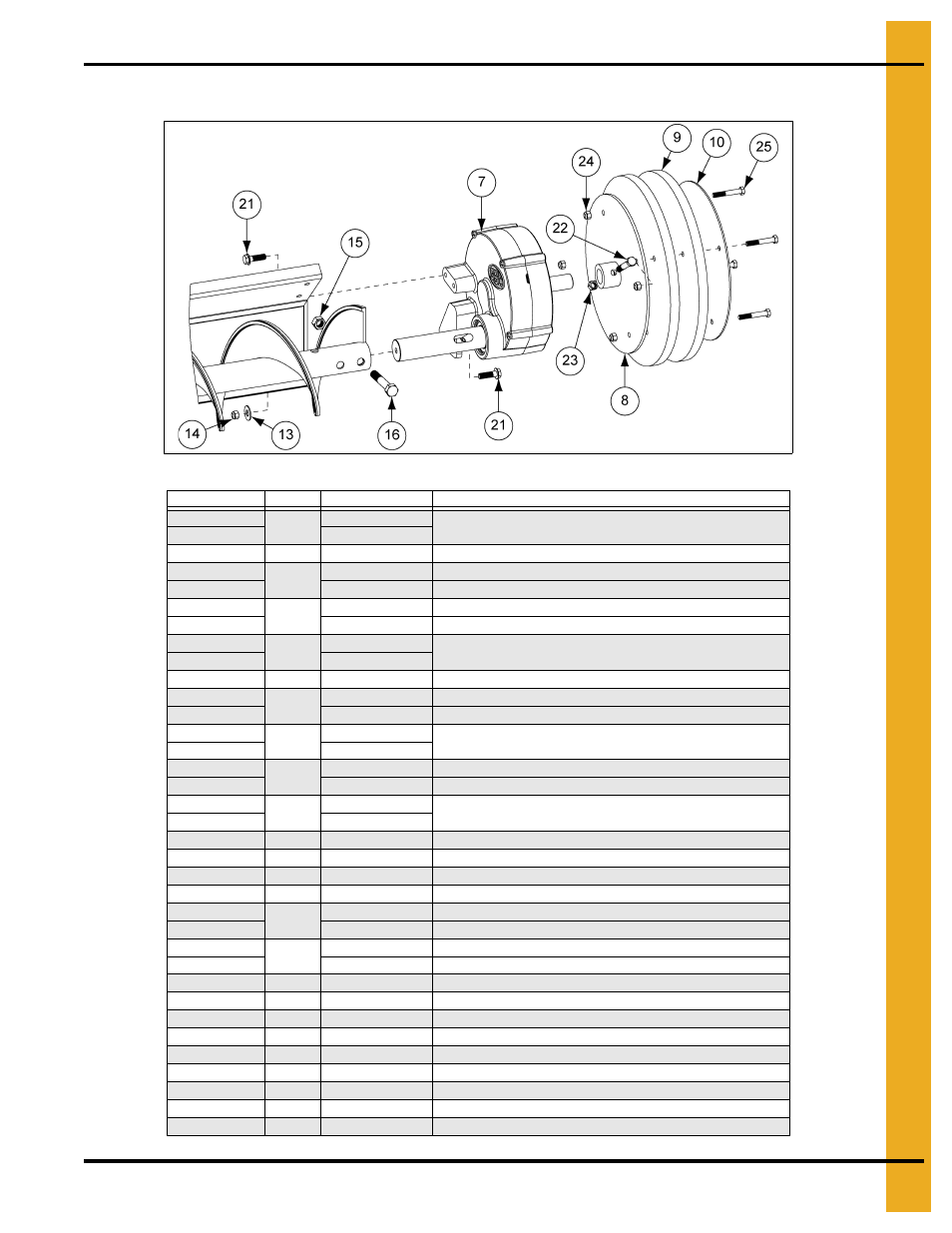

Assembled Sweep Arm Components (Continued)
Assembled Sweep Arm Components Parts List
System Ref # Part # Description
6"
1
GK6175
Shield Mounting Bracket
8" and 10" GK4461
ALL 2 GK1266 Universal Joint 1" Bore x 5" Long
6"
3
GK1678 Universal Joint Stub Shaft 1-1/4" x 5-3/4"
8" and 10" GK5929 Universal Joint Stub Shaft 1-1/2" x 5-3/4"
6"
4
GK1736 Connecting Shaft 1-1/4" x 11-1/2"
8" and 10" GK1951 Connecting Shaft 1-1/2" x 11-1/2"
6"
5
GK2107
Bearing Stand Assembly
8" and 10" GK1954
ALL 6 GK5615 Shield Splice Plate
6"
7
GK80023 Reduction Wheel Drive, 7.889:1, Gear
8" and 10" GK7960 Reduction Wheel Drive, 7.889:1, Gear
6"
8
GK80071
Wheel Hub Welded Assembly
8" and 10" GK80072
6"
9
GK4218 Wheel Disc, Rubber, 11"
8" and 10" GK4241 Wheel Disc, Rubber, 13"
6"
10
GK4219
Outer Wheel Disc
8" and 10" GK4240
ALL 11 S-2086 3/8"-16 x 1-1/2" HHCS Bolt Zinc Grade 8
ALL 12 S-4377 5/16" x 2" Grooved Roll Pin
ALL 13 S-248 3/8" Flat Washer Zinc
ALL 14 S-7383 3/8" Nylock Nut Zinc Grade 5
6"
15
S-8317 7/16"-14 Stover Nut Zinc Grade C
8" and 10" S-8315 1/2"-13 Stover Nut Zinc Grade C
6"
16
S-8316 7/16"-14 x 3" HHCS Bolt Zinc Grade 8
8" and 10" S-8252 1/2"-13 x 3" HHCS Bolt Zinc Grade 8
ALL 17 S-8055 3/8"-16 x 3" Carriage Bolt Zinc Grade 5
ALL 18 S-4275 5/16"-18 x 3/4" HHTB Bolt Zinc Grade 5
ALL 19 S-1937 5/16" Flat Washer Zinc Grade 2
ALL 20 S-3611 5/16"-18 Serrated Flange Nut Zinc Grade 2
ALL 21 S-9066 3/8"-16 x 1-1/4" Serrated Flange Bolt Zinc Grade 5
ALL 22 S-10107 3/8"-16 x 2-1/2" HHCS Bolt Zinc Grade 8
ALL 23 S-8251 3/8"-16 Stover Nut Grade C
ALL 24 S-7382 5/16" Nylock Nut Zinc Grade 5
ALL 25 S-7329 5/16"-18 x 2" HHCS Bolt Zinc Grade 2
