Grain Systems Unload Augers PNEG-1421 User Manual
Page 19
4. Installation
PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)
19
5. Slide the connecting band until it is equally positioned over both the unload tube and the center well
tube. Position the connecting band so that it will not interfere with the control rods.

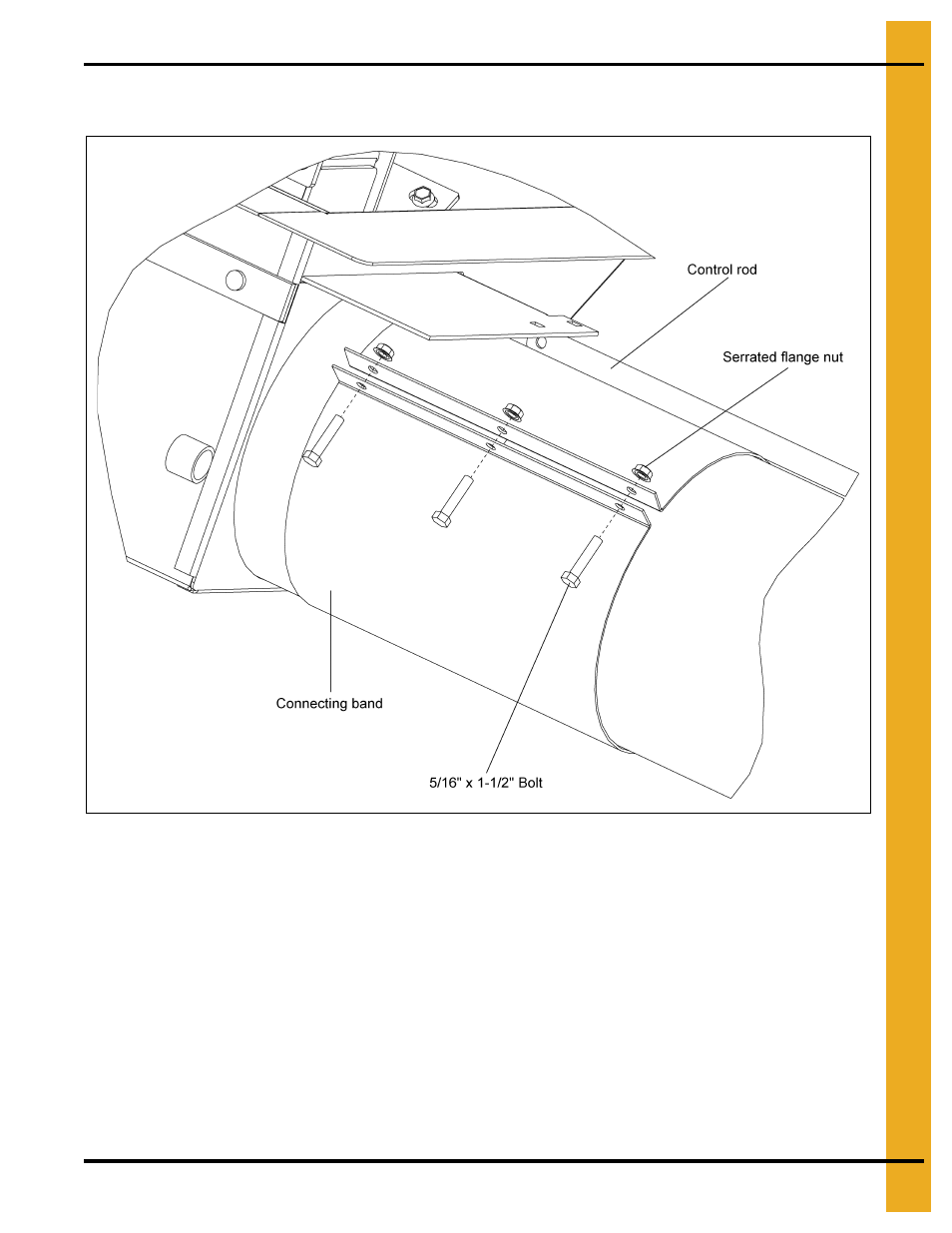

Figure 4J
6. Secure the connecting band with three (3) 5/16" x 1-1/2" bolts and serrated flange nuts, making sure
the intermediate wells are aligned to the center wells.
