4. Installation

PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)

31

Use the

Chart below

to determine the number of flighting and shield sections needed for the length of

sweep to be used.

5. Insert the connecting stub into the flighting. Secure it with bolts

(See Note for Bolt Size on Page 30)

and stover nuts.

(See Figure 4AC.)

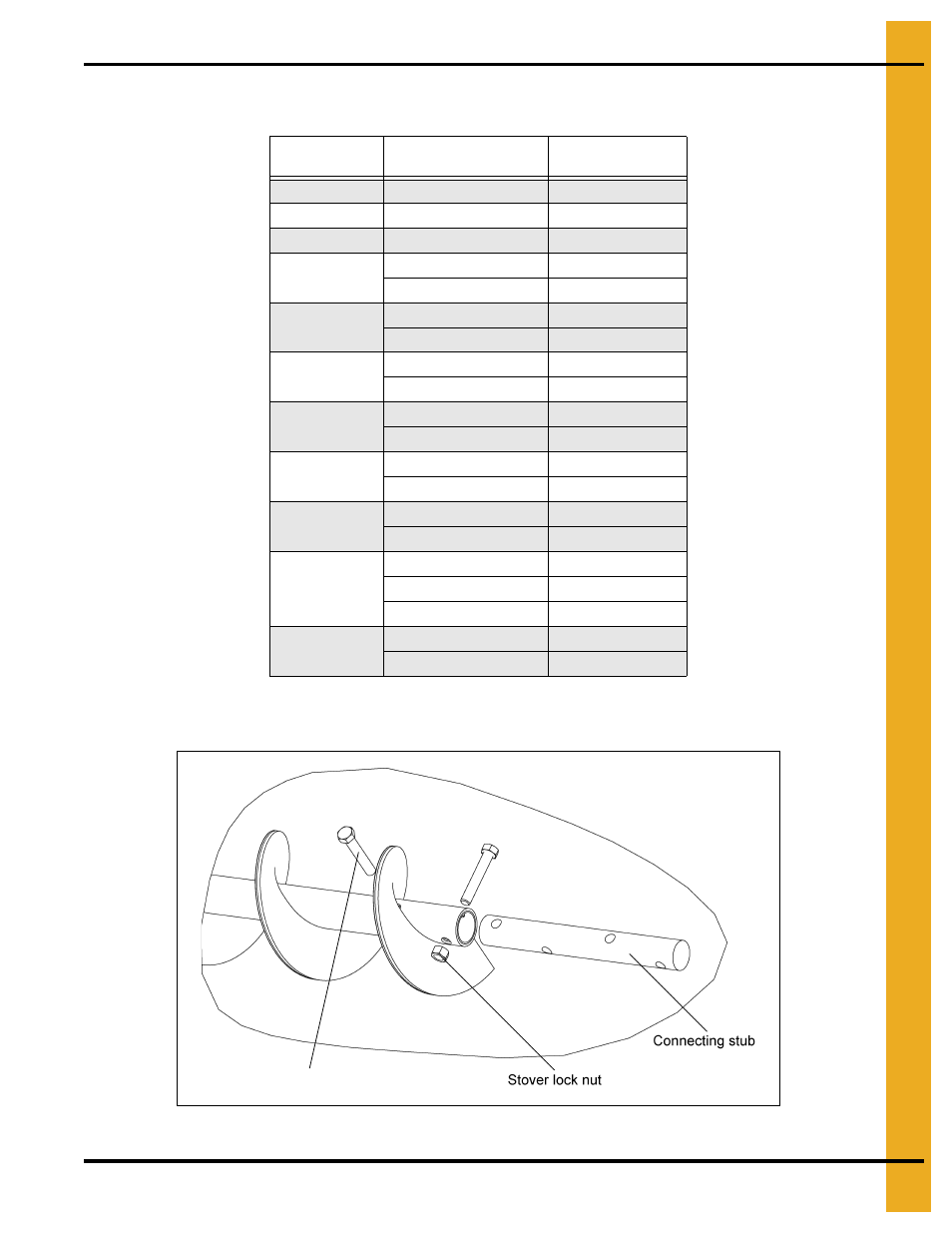

Figure 4AC

Bin Size

# of Flighting and

Shields Required

Lengths

15'

1

5'-6"

18'

1

7'-0"

21'

1

8'-6"

24'

1

4'-4"

1

5'-6"

27'

1

5'-6"

1

5'-10"

30'

1

5'-6"

1

7'-4"

33'

1

5'-10"

1

8'-6"

36'

1

7'-4"

1

8'-6"

39'

1

8'-6"

1

8'-10"

42'

1

4'-4"

1

7'-0"

1

7'-4"

48'

1

7'-0"

2

7'-4"

(See Note for Bolt Size on Page 30.)
