4. Installation

PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)

Intermediate Well Installation

1. Cut openings in the bin floor for the intermediate wells.

See Figure 4B

and

Figure 4C on Page 14

The number of wells depends on bin size. The distances between intermediate wells and the center
well should be equal.

See Figure 4D

and

Chart below

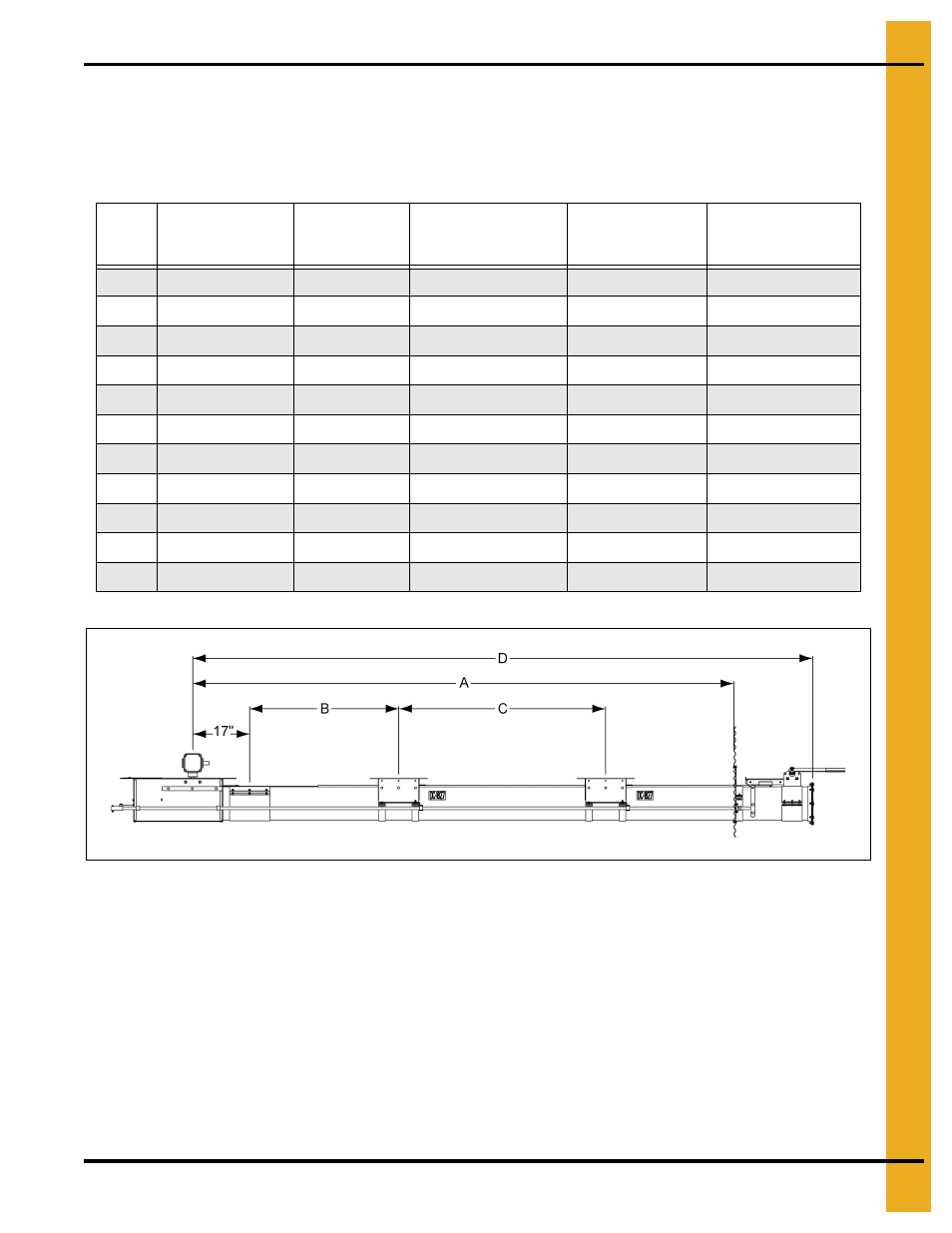

Figure 4D

Bin

Size

# of Intermediate

Wells

Distance from

Center of Bin

to Wall (A)

Distance Between

Center Well and First
Intermediate Well (B)

Distance Between

Wells (C)

Distance from

Center of Bin to

Angle Ring (D)

15'

7' - 5-1/2"

39-3/8"

9'-5"

18'

8' - 11-7/16"

36-3/4"

11'-5"

21'

10' - 5-5/16"

32-1/2"

49-3/4"

12'-5"

24'

11' - 11-1/4"

38-1/2"

55-3/4"

13'-11"

27'

13' - 5-3/16"

44-1/2"

61-3/4"

15'-5"

30'

14'-11"

50-1/2"

67-3/4"

16'-11"

33'

16' - 4-15/16"

39.563"

56.813"

18'-1"

36'

17' - 10-7/8"

42.563"

59.813"

19'-11"

39'

19' - 4-3/4"

47.063"

64.313"

21'-5"

42'

20' - 10-11/16"

39"

56-1/4"

23'-5"

48'

23' - 10-1/2"

46.2"

63.45"

26'-5"
