4. Installation

20

PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)

Install Bin Flange

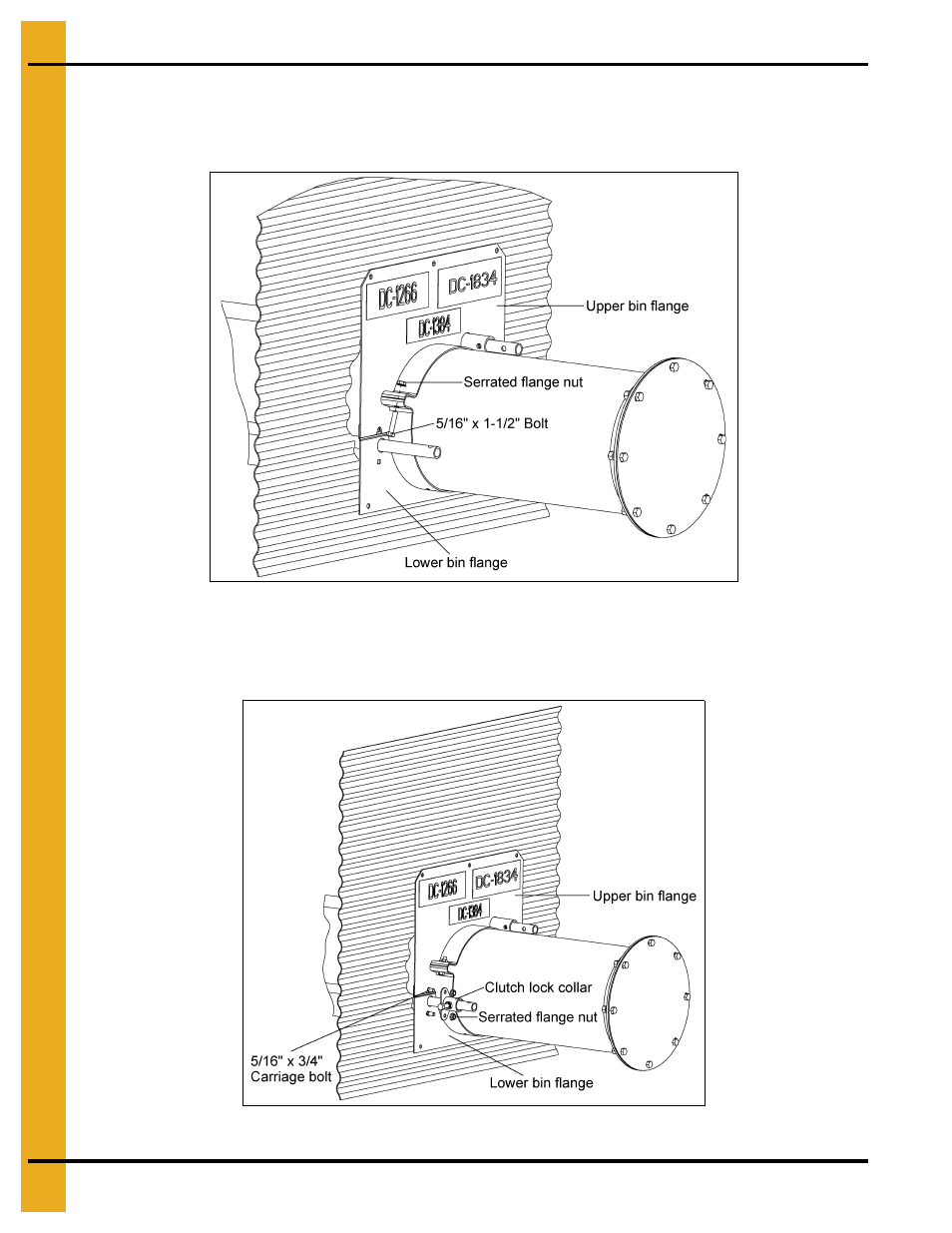

1. Attach the upper and lower bin flanges loosely to the auger tube using two (2) 5/16" x 1-1/2" bolts

and serrated flange nuts.

(See Figure 4K.)

Figure 4K

2. Next, install the clutch lock collar to the lower bin flange using two (2) 5/16" x 3/4" carriage bolts and

serrated flange nuts. Install the bolt heads on the backside of the lower bin flange so they will be next
to the bin wall when the flanges are attached to the bin.

(See Figure 4L.)

Figure 4L
