4. Installation
PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells) 27

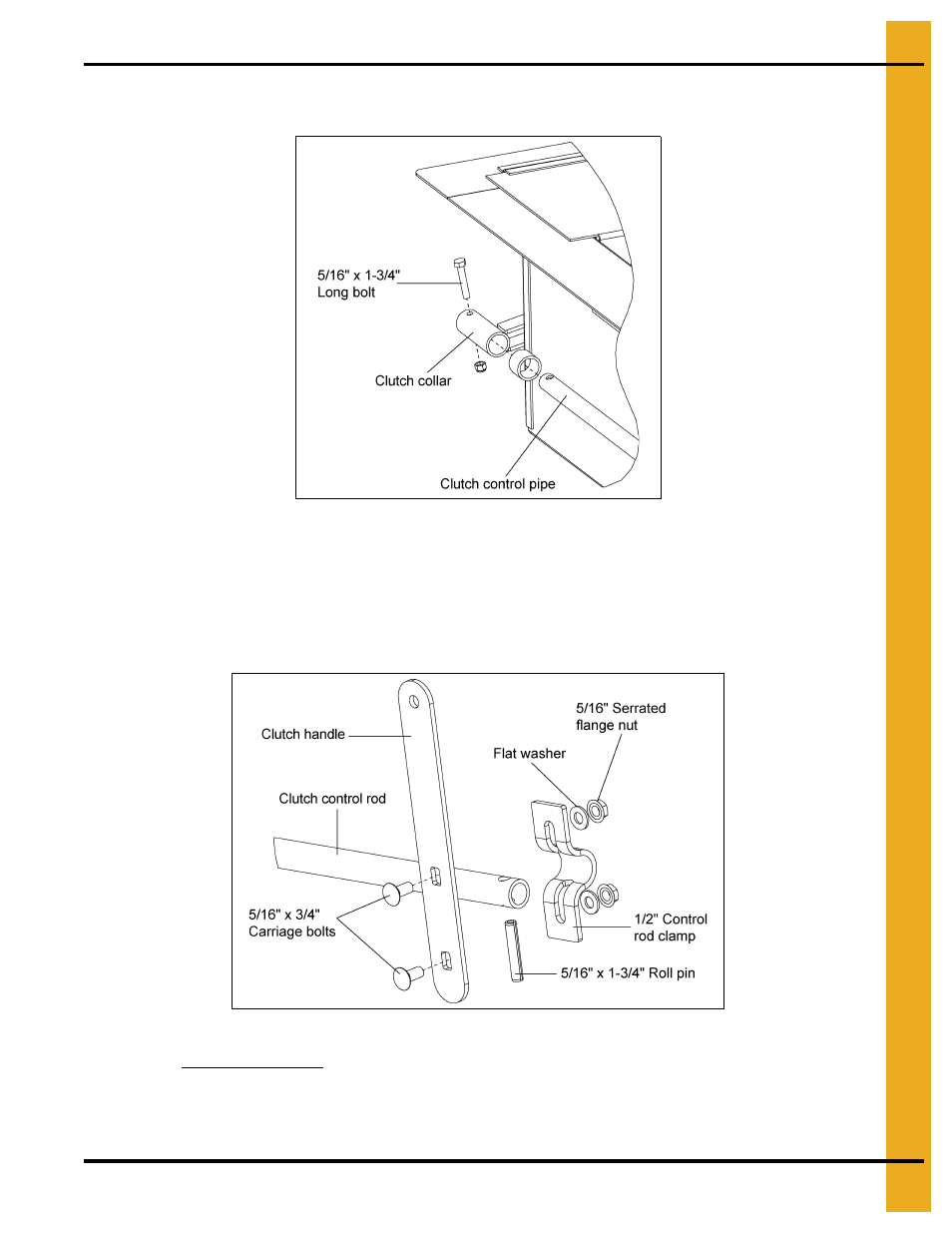

2. Bolt the clutch control pipe to the collar on the center well using a 5/16" x 1-3/4" long bolt and
lock nut. (See Figure 4U.)
Figure 4U
3. Attach the control rod clamp to the clutch rod by sliding 5/16" x 1-3/4" long roll pin through the clamp
and control rod.
4. Fasten the clutch handle to the clamp using two (2) 5/16" x 3/4" carriage bolts, flat washers and
serrated flange nuts. The short end of the clutch handle should be closest to the bin pad, so as not
to interfere with it. Install the nuts so that they secure the roll pin in place.
(See Figure 4V.)
Figure 4V
NOTE: Clutch control pipe is shipped INSIDE unload flight.
5. Check operation of clutch by pulling the handle to engage the clutch and then pushing the handle to
disengage it. The control pipe should slide freely. Lock the control pipe into the disengaged position
by tightening the bolt on the lock collar that is attached to the bin flange.
(See Page 26.)
