Grain Systems Unload Augers PNEG-1421 User Manual
Page 25
4. Installation
PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)
25

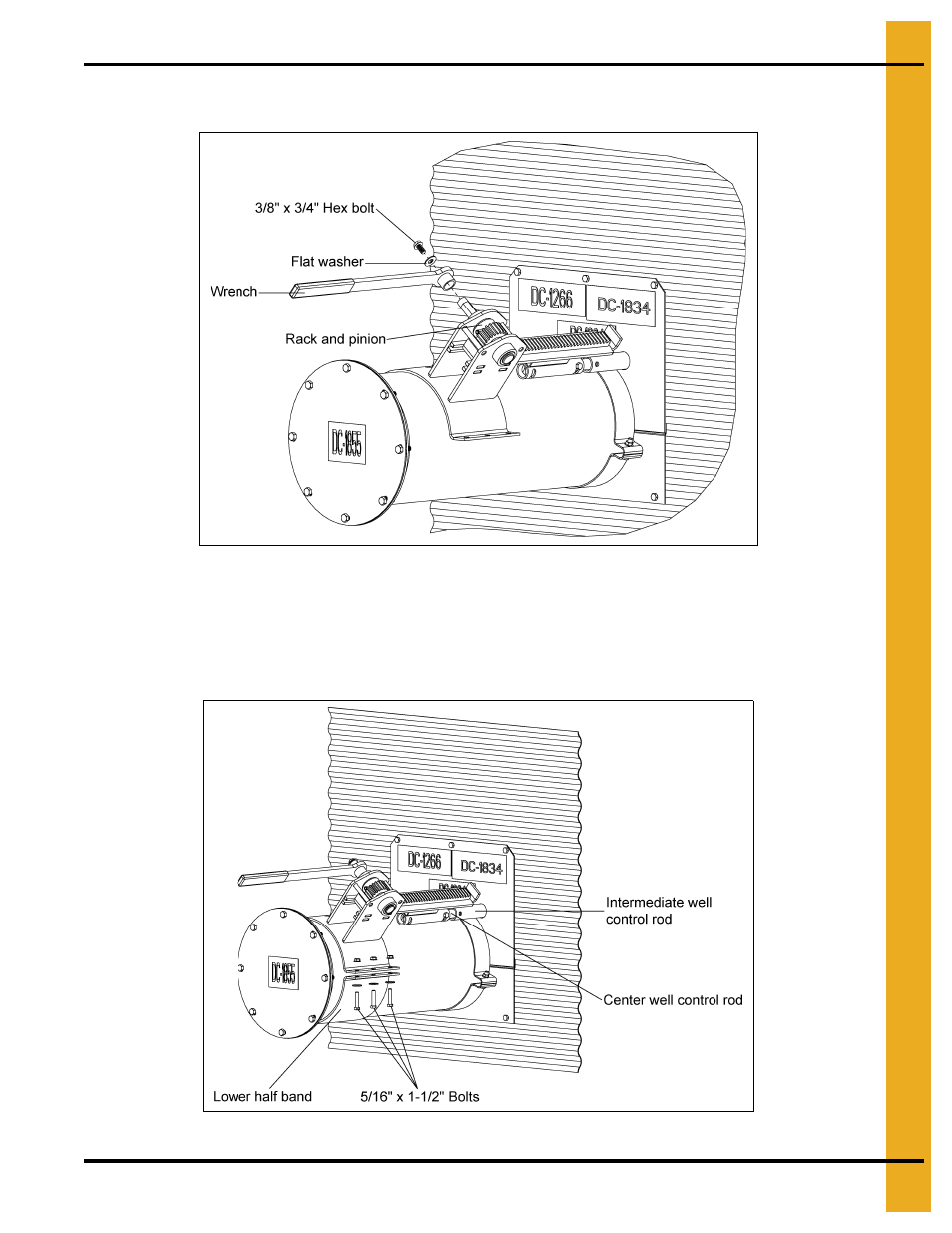

4. Slide wrench over shaft on rack and pinion, making sure the collar faces the gears. Fasten down with
3/8" flat washer and 3/8" x 3/4" hex bolt.
Figure 4Q 8" and 10" Systems
5. With rack and pinion fully extended, attach lower half band and secure to unload tube with
six (6) 5/16" x 1-1/2" bolts, washers and serrated flange nuts.
6. To open all gates, with center gate closed, place second 5/16" x 1-3/4" bolt through center gate
control rod and intermediate gate control rod and secure with nut.
Figure 4R 8" and 10" Systems
