4. Installation
26
PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)
Clutch Control Installation
1. Slide the clutch control pipe through the bin flange and the support brackets on the intermediate and
center wells. Slide the clutch control pipe into clutch collar on the center well.
and

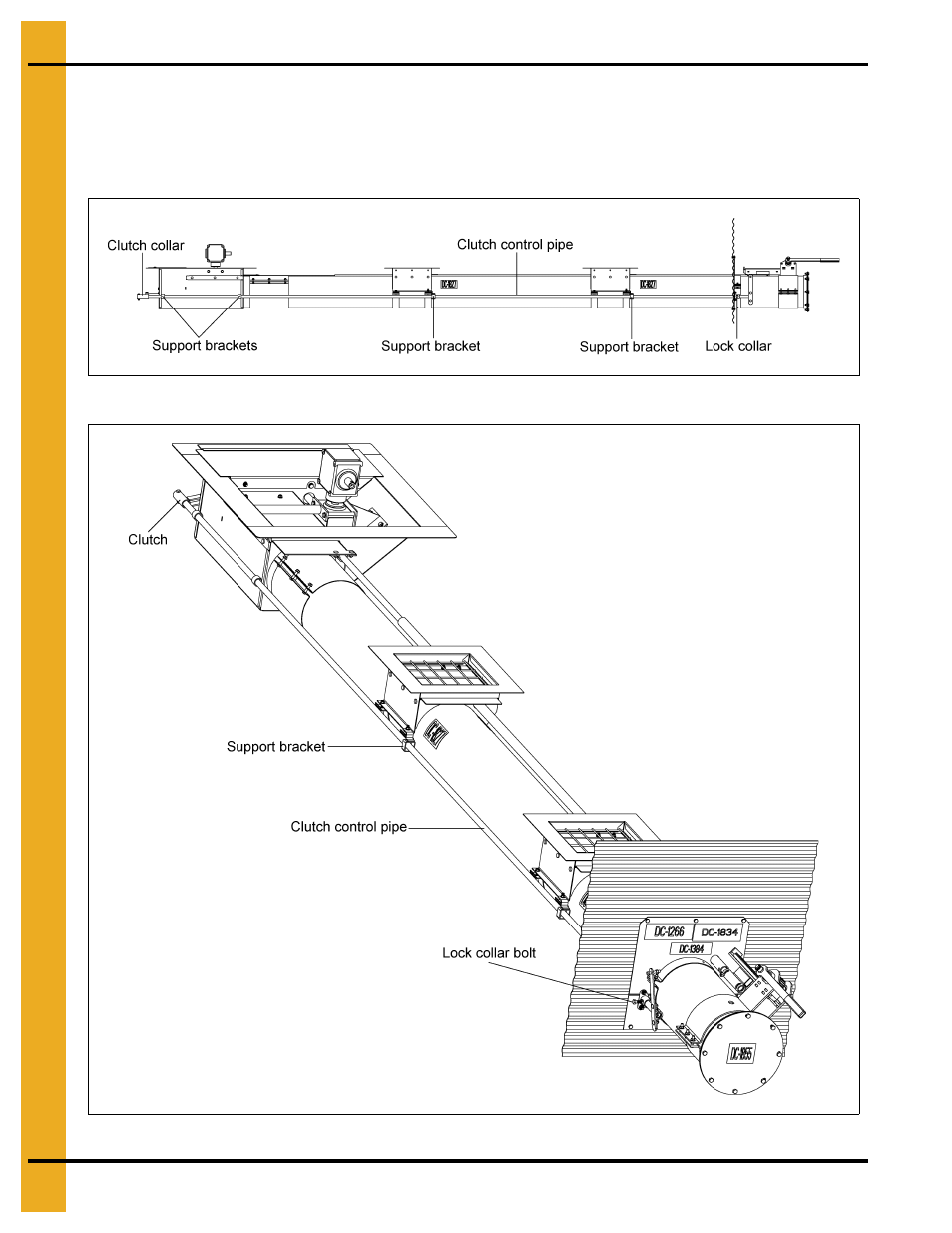

Figure 4S
Figure 4T
