4. Installation

24

PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)

Rack and Pinion Installation (8" and 10" Systems)

1. Make sure all gates are fully closed.

2. Slip rack and pinion tube over center gate control rod and align holes, making sure rack and pinion

is fully extended toward bin wall.

(See Figure 4P.)

3. With rack and pinion resting on unload tube and tube holes aligned, insert one 5/16" x 1-3/4"

bolt through the rack and pinion tube and center gate control rod. Fasten together with a nut.

(See Figure 4P.)

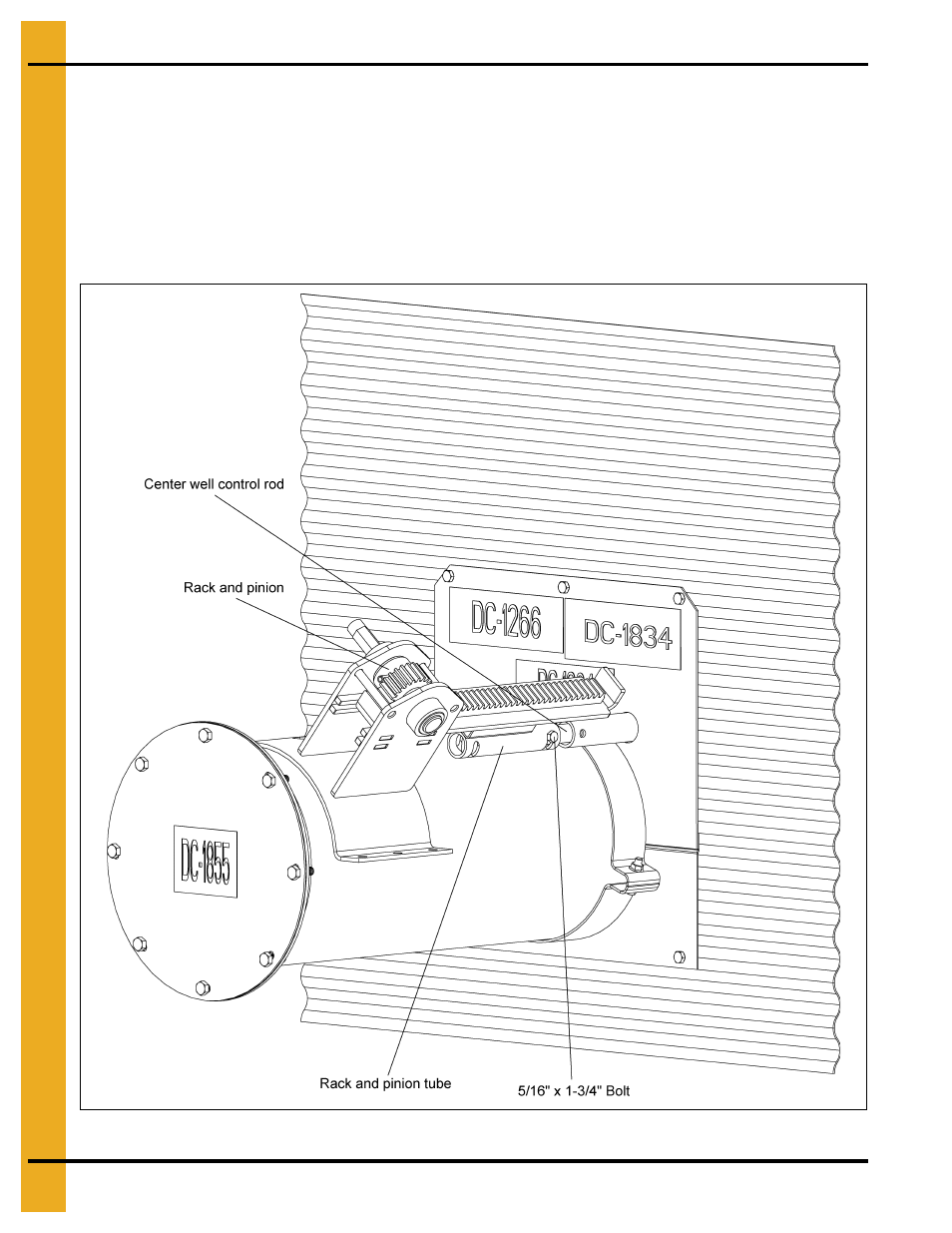

Figure 4P 8" and 10" Systems
