4. Installation
14 PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)
Power Sweeps in Bins with Raised Metal Floors
For bins with raised metal floors, it is necessary to cut openings in the floor for the center well and
intermediate wells. Make sure the metal floor is high enough above the concrete base so there is space
for the wells. It would be convenient to complete assembly of the bin floor as the power sweep is being
installed for better access to components under the floor.
1. Locate the center of the bin and make a cut-out in the bin floor for the center well. See Figure 4B for
cut-out size and location of 6" and 8" wells. See Figure 4C for 10" wells. Locate the vertical shaft
between the gearboxes in the center of the bin. Place suitable supports under the center well to hold
it in position.

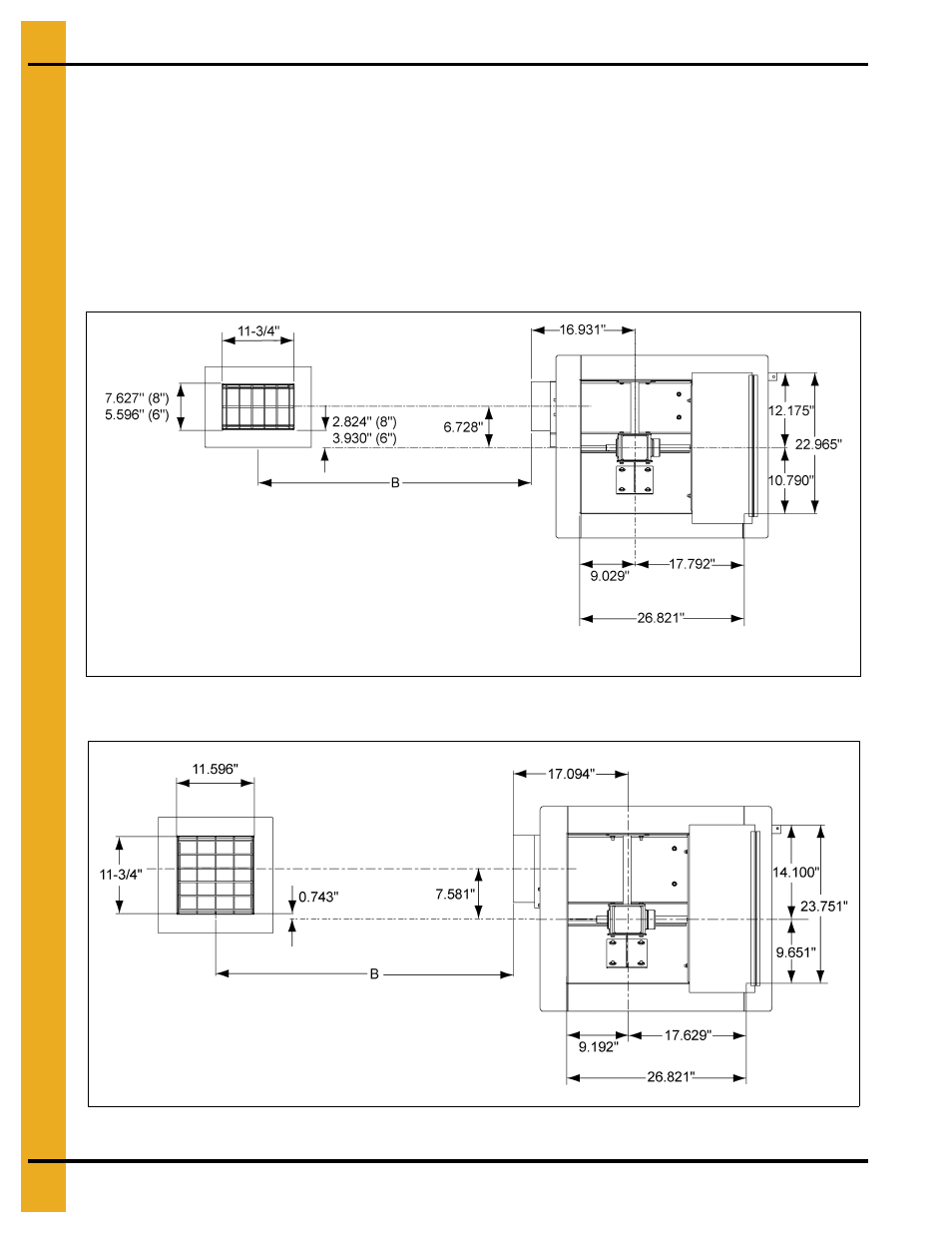

Figure 4B 6" and 8" (15.24 cm 20.32 cm) Center and Intermediate Well(s) Bin Floor Cut-outs
Figure 4C 10" (25.40 cm) Center and Intermediate Well(s) Bin Floor Cut-outs
NOTE: Dimension “B” on Page 15 .
NOTE: Dimension “B” on Page 15.
