4. Installation

22

PNEG-1421 Direct Gear Drive Bin Sweep Auger (with Roller Wells)

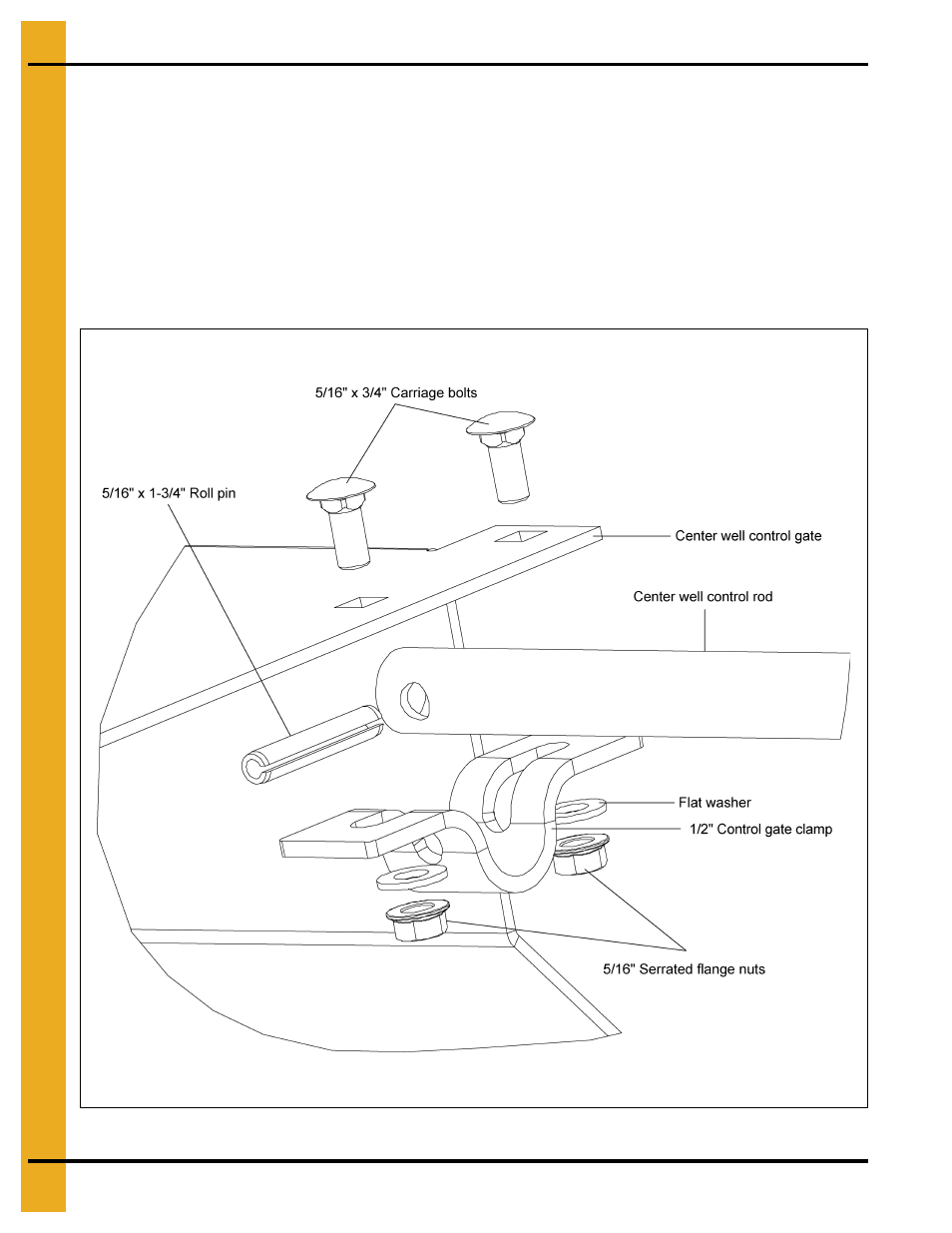

Center Well Slide Gate Assembly

1. Close the center slide gate completely.

2. Align control rod between holes in gate.

3. Attach control gate clamp to control rod by sliding 5/16" x 1-3/4" long roll pin through clamp and

control pipe.

4. Fasten clamp to bottom side of control gate by using two (2) 5/16" x 3/4" long carriage bolts,

flat washers and serrated flange nuts.

(See Figure 4N.)

NOTE: 6" and 8" Rods attach on the TOP side of the center well gate.

Figure 4N
