5. Assembly
PNEG-720-G2 12" and 16" Series II Sweep 41
Motor Installation
A. Level the Top Plate Assembly by adjusting the 1" nuts and washers on the adjustment rods.
(See Figure 5W.)
B. Line up the end face of the shafts as closely as possible before bolting motor to mounting plate.
(See Figure 5W-A.)

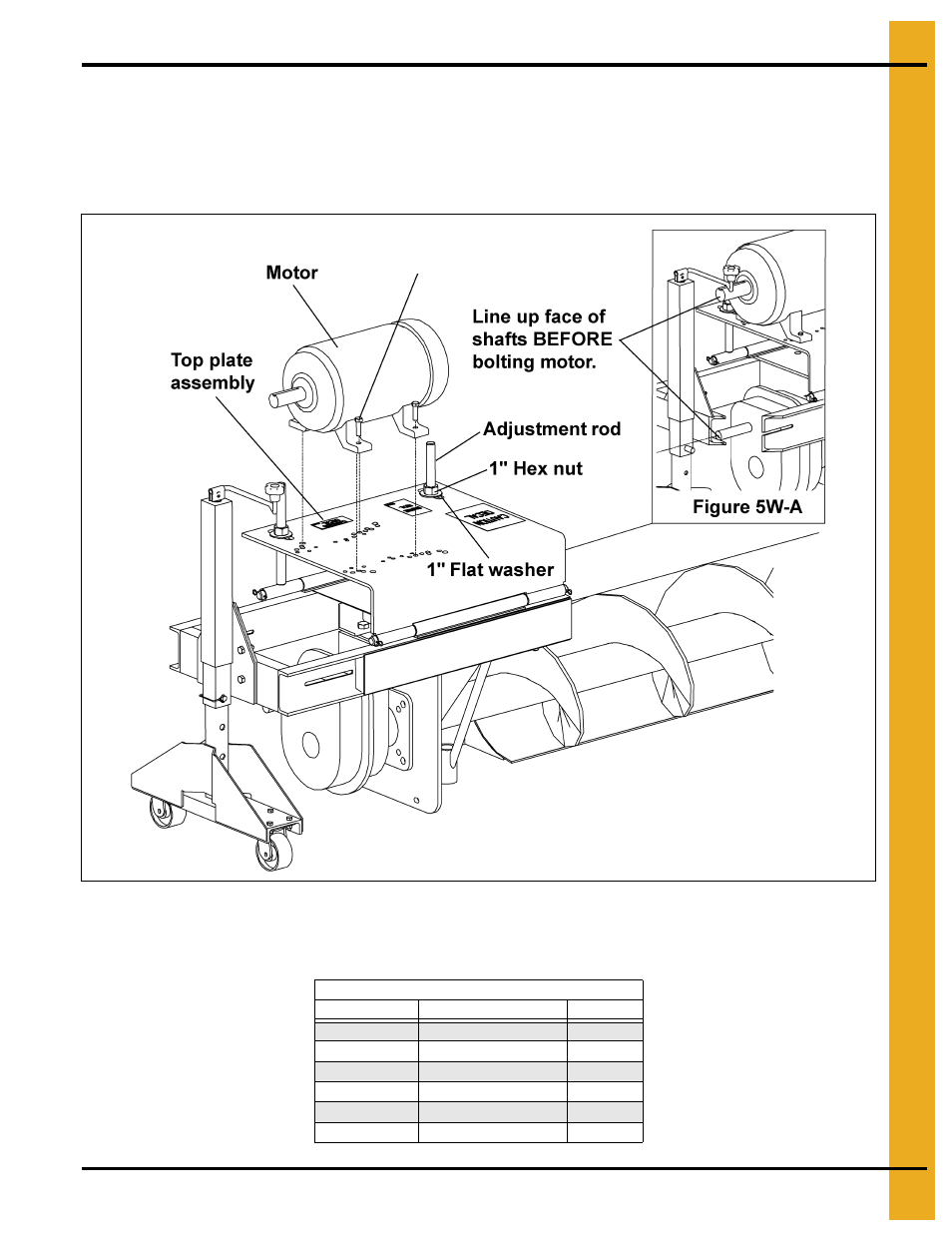

Figure 5W
C. Fasten the motor to the motor mount using hex bolts, lock washers and hex nuts. (See Motor Bolt
Chart for bolt sizes.)
Motor Bolt Chart
Motor Size Hex Bolt Size Qty
213T 3/8"-16 x 1-1/4" 4
215T 3/8"-16 x 1-1/4" 4
254T 1/2"-13 x 1-3/4" 4
256T 1/2"-13 x 1-3/4" 4
284T 1/2"-13 x 1-3/4" 4
286T 1/2"-13 x 1-3/4" 4
Motor bolt
(See chart below for size)
