SERIES 2000 DRYER CONTROL PANEL

OFF to the moisture control. The light
beside the switch is illuminated when
the grain column temperature is be-
low the moisture control set point.

DRYER CONTROL PANEL FEATURING THE COMPETITOR

SERIES 2000 CONTROL SYSTEM

This switch turns the power ON or

MOISTURE CONTROL

SWITCH(2)

The control panel

control panel

control panel provides easy

access to gauges and controls. The
Competitor Series 2000 Control
System is a computerized control
system that gives instant information
regarding dryer operation.

DRYING MODE SWITCH(5)

This is used to select staged batch
or continuous flow drying.

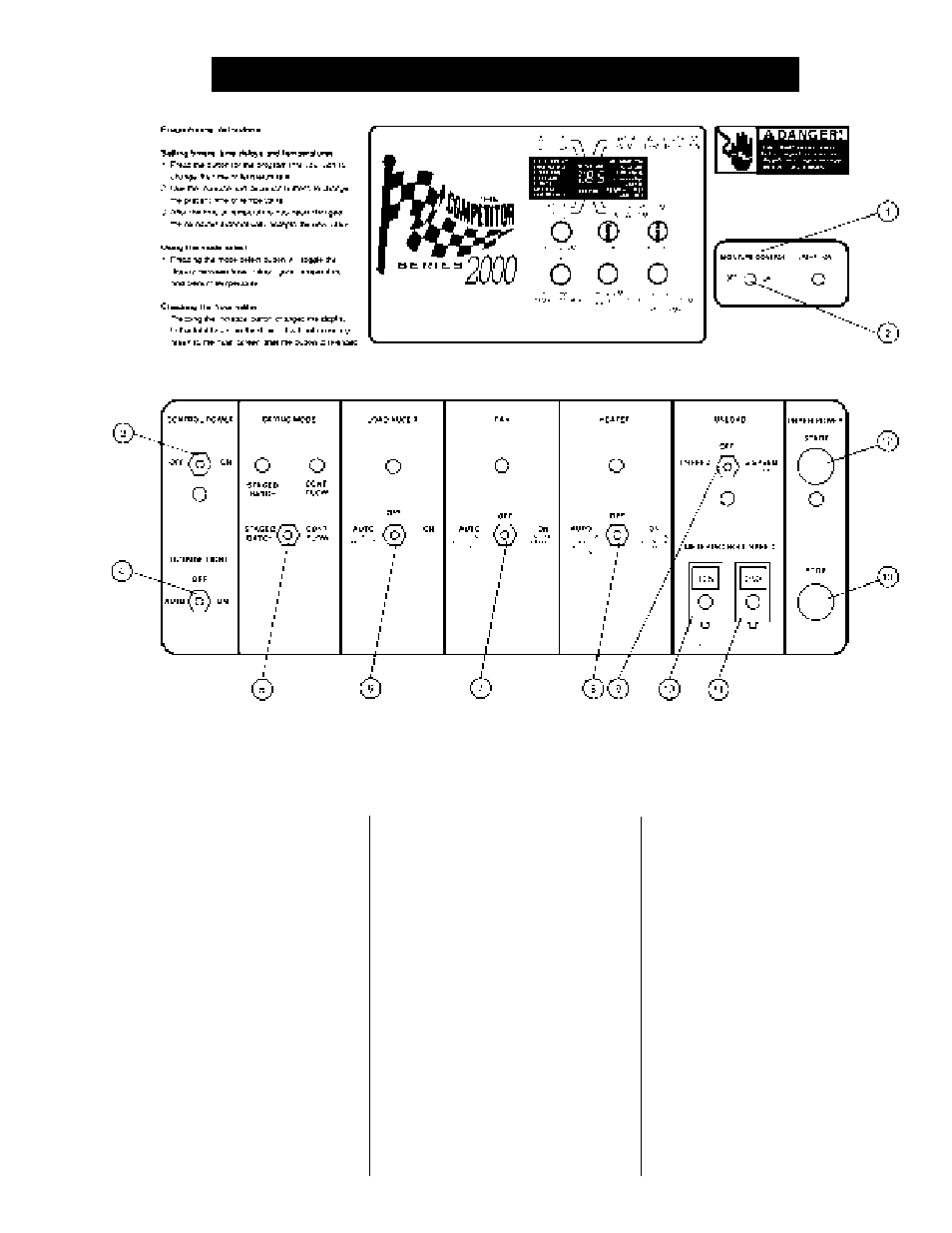

Figure 3: The grain dryer control panel.

The dryer outside light is turned on
or off here. In auto the light turns
off if the dryer has a shutdown.

OUTSIDE LIGHT(4)

CONTROL POWER

SWITCH(3)

The power to the Competitor 2000
Control System is turned on or off
with this switch.

The Series 2000 Dryer has a built in
moisture control. It controls the
moisture level of discharged grain
by sensing grain column temperature.

MOISTURE CONTROL(1)

This is used to select the opera-
tion of the load auger

load auger

load auger. In both the

AUTO and MANUAL position the
load auger

load auger

load auger will operate if the dryer
is low on grain and will automati-
cally shut off when the dryer is full.
In the AUTO position only, the
dryer will shut down after a preset
period of time set on the OUT OF
GRAIN TIMER.

LOAD AUGER SWITCH(6)
