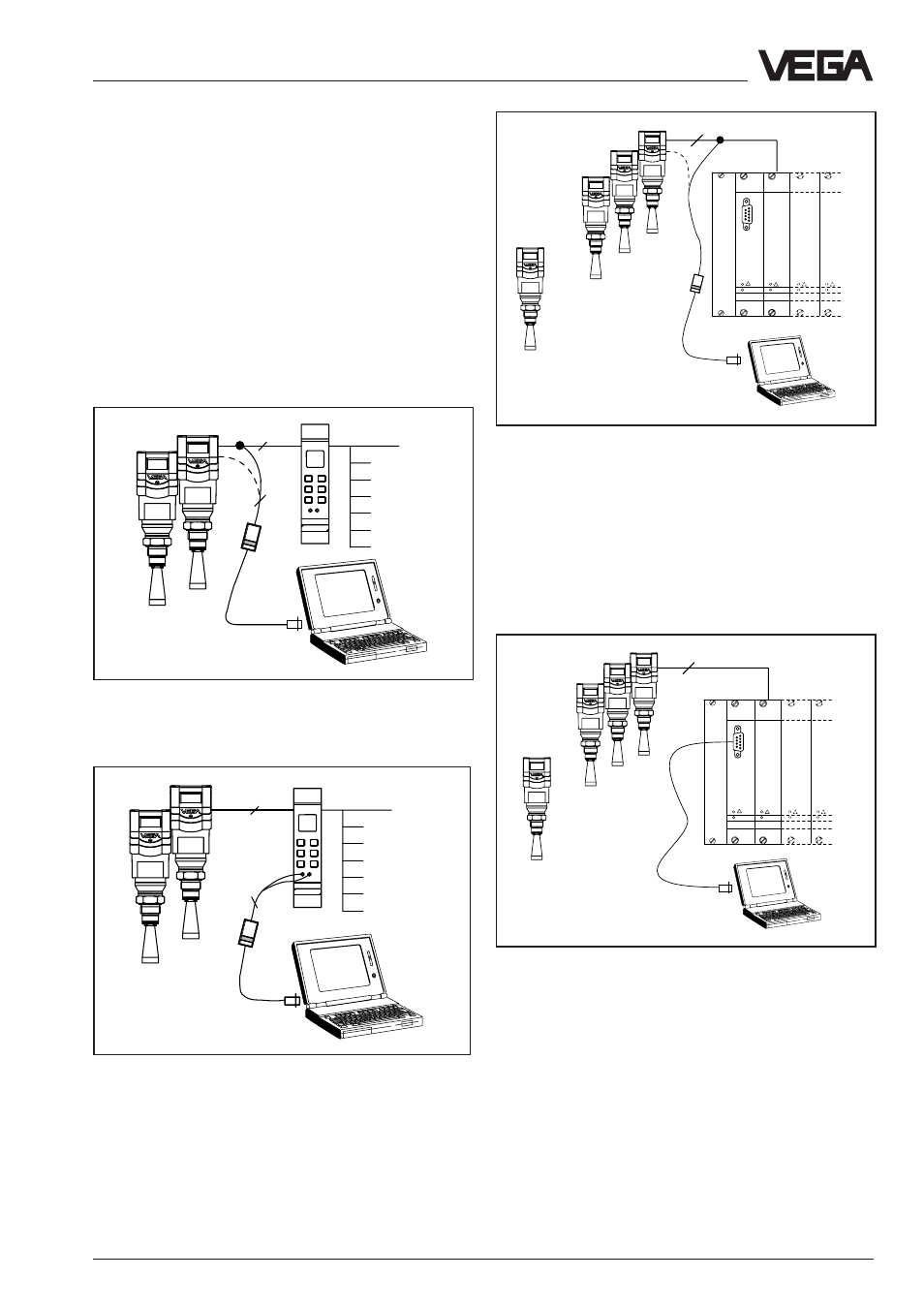

Adjustment with the PC on the VEGALOG processing
system with standard cable RS 232 (up to 15 sensors
can be operated on one two-wire cable with the
processing system)
2
1...15
......
VEGALOG
571 CPU
VEGALOG
571 EA
CPU
Adjustment on the digital signal and supply cable to
the VEGALOG 571 processing system or directly on
the sensor
2
1 ... 15
…
…
VEGALOG
571 CPU
VEGALOG
571 EA
CPU
The adjustment and parameter setting data
can be saved on the PC with the adjustment
software and protected by passwords. The
adjustments can be quickly transferred to
other sensors if required.
Note:
The adjustment program VVO must be avail-
able in version 2.70 or higher.
The PC can be connected to any position of
the system or the signal cable. It is con-
nected with the two-wire PC interface con-
verter VEGACONNECT 2 to the sensor, the
signal cable or the signal conditioning instru-
ment. The sensor is connected directly to the
VEGALOG processing system with the
standard cable (RS 232).
Product description
Adjustment with the PC on the digital signal and
supply cable between sensors and VEGAMET signal
conditioning instrument or directly on the sensor
2
2
Adjustment with the PC on the VEGAMET signal
conditioning instrument, to which one or two sensors
can be connected
2
2
