VEGA VEGAPULS 45 VBUS User Manual
Page 63

VEGAPULS 42, 44 and 45 – VBUS
63

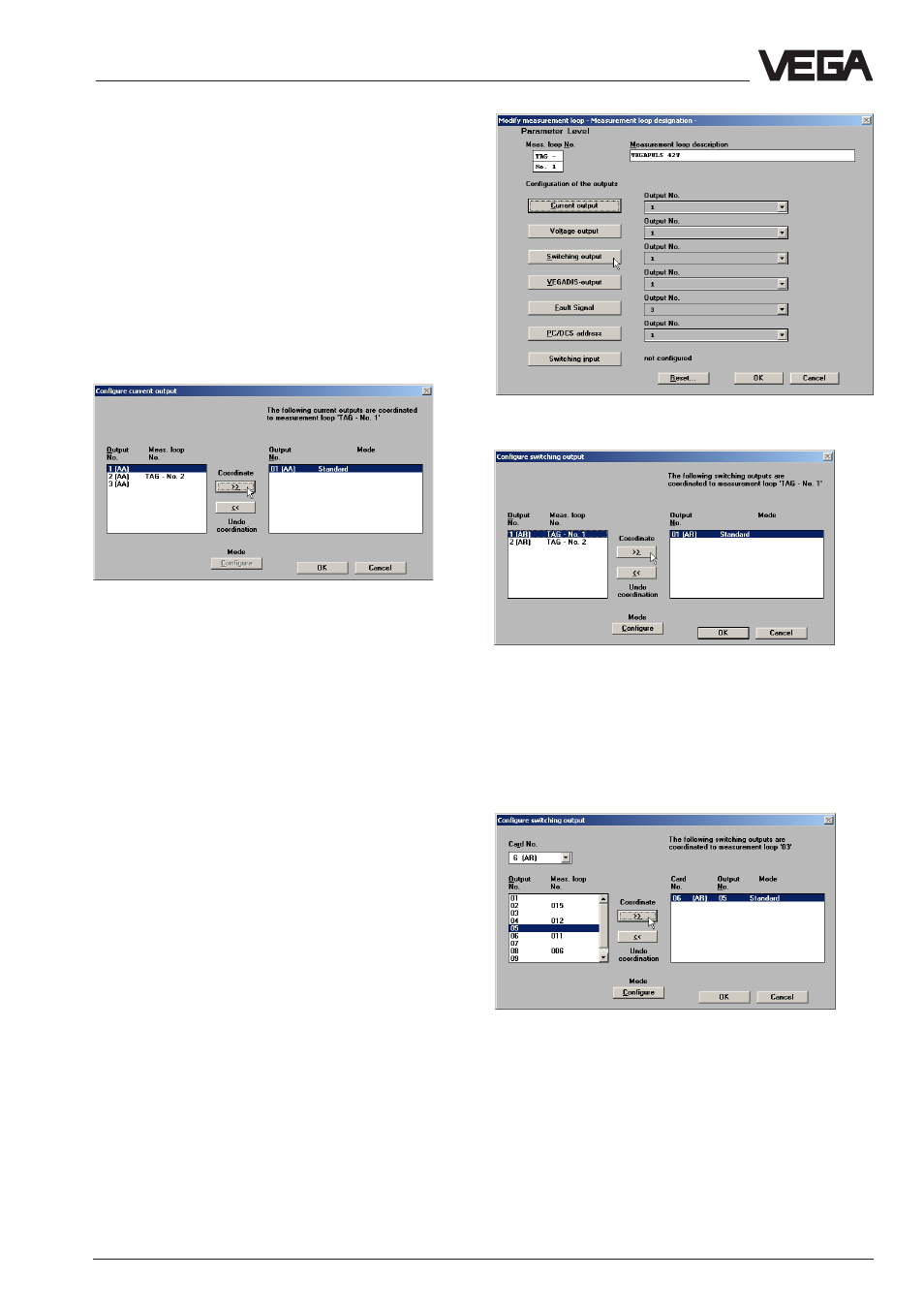

Adjustment with the PC on the signal conditioning instrument
Depending on the VEGAMET or VEGALOG
version, the following outputs will be available
for use:
- current output (0 … 20 mA)
- voltage output (not VEGALOG)
- switching output (relay, transistor)
- VEGADIS output (local bus)
- fault signal (relay)
- PC/DCS address (local instrument bus
address)
- Switching input
• Now click e.g. to "
Current output".
The window, "
Configure current output"
opens, in which you can assign one or sev-
eral current outputs to one measurement
loop.
In the left window the available current out-
puts are shown. Outputs already assigned to
a measurement loop are shown in the left
window with their measurement loop number
in addition to the output number.
• Save the adjustment with "
OK".
You are again in the menu window "
Modify
measurement loop – Measurement loop des-
ignation".
• Click to "
Switching output".
Also in the menu window "
Configure switching
output" you can assign one or several relays
to a measurement loop.
If you operate a VEGALOG, there are natu-
rally more relays available.
