VEGAPULS 42, 44 and 45 – VBUS 47
Adjustment with the PC on the signal conditioning instrument

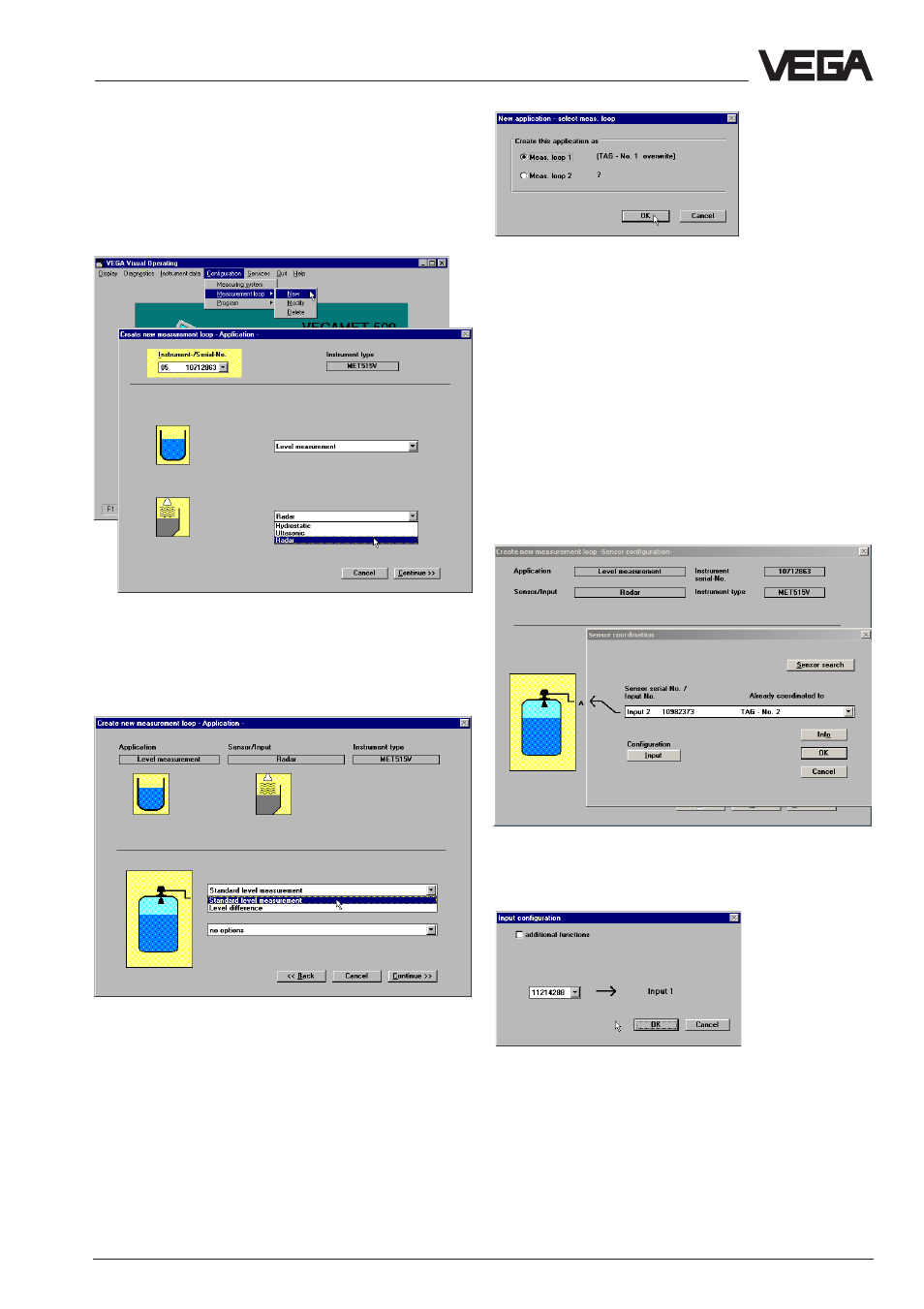

Create new measurement loop
• Choose the menu
"Configuration/Measure-
ment loop/New" and you are in the menu
window "
Create new measurement loop -
Application".
• Choose the parameter (
"level measure-
ment", gauge or distance) and the sensor
type (
"Radar" for radar).
• Click to "
Continue".
• Choose "
Standard level measurement" and
"
no options".
• Click to "
Continue" and the menu window
" New application - Select measurement
loop" opens.
• Choose one of the two inputs of the
VEGAMET signal conditioning instrument
(VEGAMET 514V has only one sensor
input) and click to "
OK".
After a few seconds, the menu window " Cre-
ate new measurement loop - Sensor configu-
ration" opens.
• Click in the menu window " Create new
measurement loop - Sensor configuration"
to "
Sensor coordination". The menu window
" Sensor coordination" opens.
• Click to "
Sensor search".
• Then click to "
Input".
• Choose the serial number of the sensor to
which you want to allocate e.g. input 1. If
two radar sensors are connected to
VEGAMET, you will get here a choice of the
serial numbers of the two sensors.
