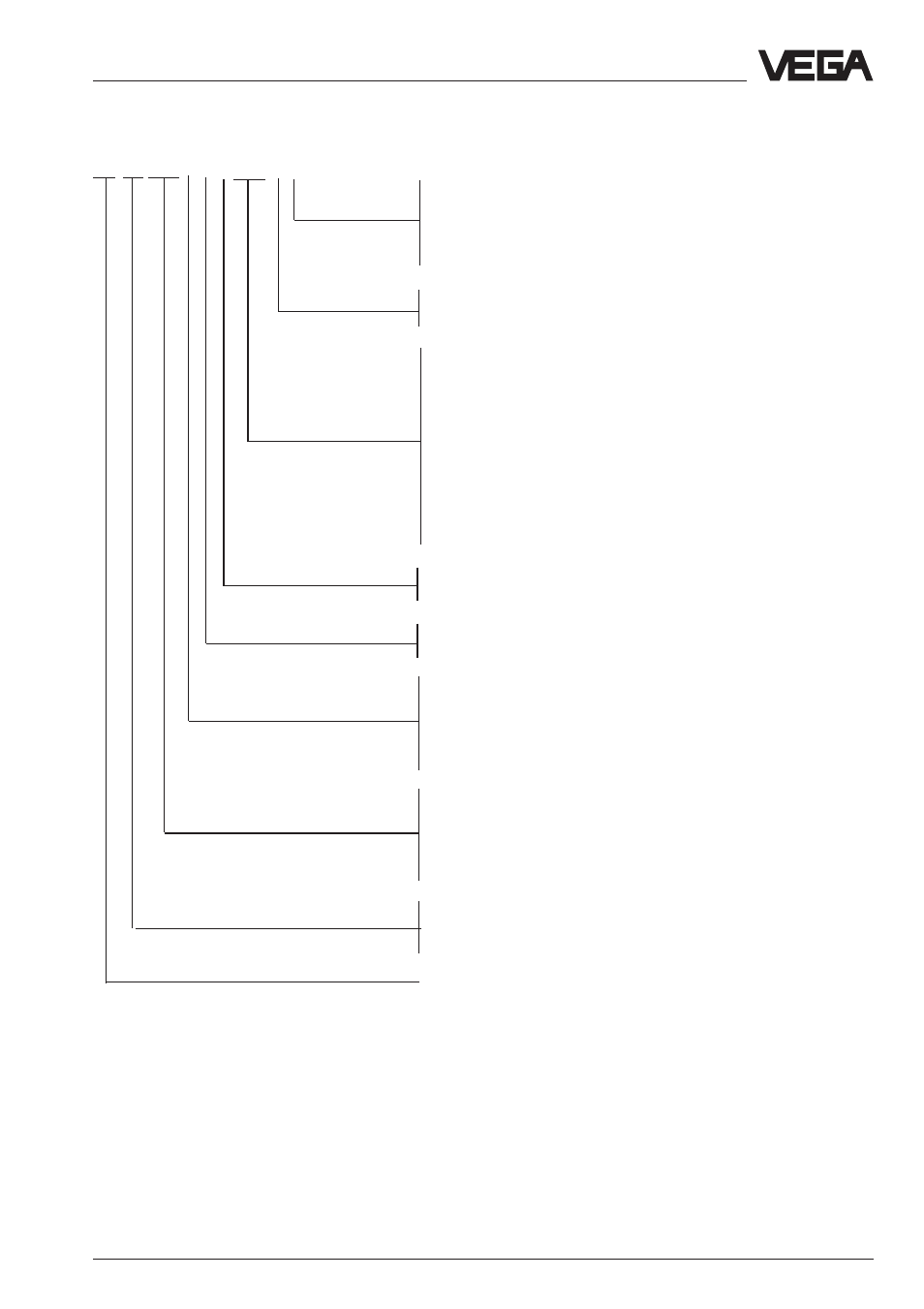

2.2 Type code
PS 42 .XX X X X XXX X X
K - Plastic housing PBT, M20 x 1.5 cable entry
N - Plastic housing PBT, ½" NPT cable entry
A - Aluminium housing, M20 x 1.5 cable entry
D - Aluminium housing, ½" NPT cable entry in Exd connection
housing
V - Seal of the antenna system: Viton
A - Seal of the antenna system: Kalrez
G - Process fitting G 1½ A
N - Process fitting 1½" NPT
ABC- Process fitting DN 50 PN 40
BBE- Process fitting DN 80 PN 40
CBG-Process fitting DN 100 PN 16
DBG-Process fitting DN 150 PN 16
ARC- Process fitting ANSI 2" 150 psi
BRE- Process fitting ANSI 3" 150 psi
CRG-Process fitting ANSI 4" 150 psi
DRG-Process fitting ANSI 6" 150 psi
YYY- Process fitting on request
X - without display
A - with integrated display
X - without adjustment module MINICOM
B - with adjustment module MINICOM (mounted)
B - 20 … 72 V DC; 20 … 250 V AC; 4 … 20 mA, HART ®
(four-wire)
D - Two-wire (loop powered), 4 … 20 mA, HART ®
E - Power supply via signal conditioning instrument
G - Segment coupler for Profibus PA
XX - FTZ (standard telecommunication approval Germany)
AX - Approval in Ex-Zone 1, EEx ia IIC T6
CX - Approval in Ex-Zone 0, EEx ia IIC T6
BX - Approval in Ex-Zone 1 (Exd connection housing)
DX - Approval in Ex-Zone 0 (Exd connection housing)
Type 42: with screwed process fitting
Type 44: Instrument series with flange connection
Type 45: with measuring tube
PS: Radar sensors series 40
Types and versions
