52 VEGAPULS 42, 44 and 45 – VBUS

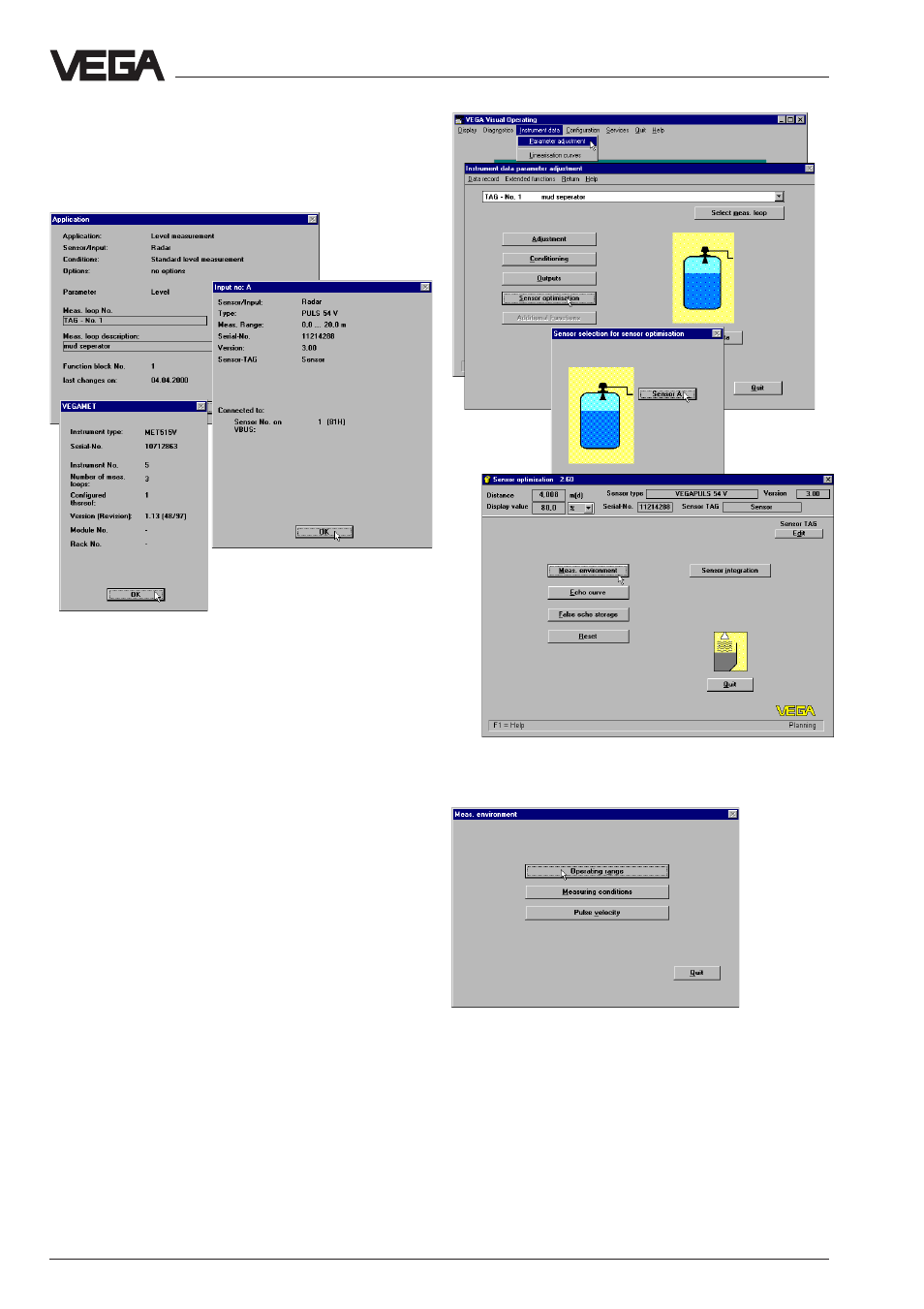

Adjustment with the PC on the signal conditioning instrument
• First click to
"Meas. environment".
• Click to "
Application", to "Input no. A" and
"
VEGAMET", to get detailed information on
your measuring system in the information
windows.
• Quit the information windows.
• Quit the menu "
Meas. loop data".
Sensor optimisation
In the menu "Sensor optimisation" you can
adapt the sensor to the environment. Here
you carry out special optimising adjustments
and optimise, e.g. by means of the echo
curve, the mounting location of the sensor.
Meas. environment/Operating range
• Choose the menu "
Instrument data param-
eter adjustment"
• Choose in the menu window "
Instrument
data parameter adjustment" the menu item
"Sensor optimisation" and click to "Sensor
A".
The menu window "Meas. environment”
opens.
With the menu item " Operating range" you
can define the operating range of the sensor
deviating from the "
Min/Max adjustment". By
default, the operating range corresponds
otherwise to the min./max. adjustment (span).
