82 VEGASON 51 V … 53 V
• Quit the menu with "OK".
• Confirm the message with "OK", and your
individual linearisation curve will be saved
in the sensor.
Again in the menu window " Conditioning" you
can enter with the menu point " Integration
time" a measured value integration. This is
useful for fluctuating product surfaces to
avoid a permanently changing measured
value indication and output.
As a standard feature an integration time of 0
seconds is adjusted.
• Quit the menu with "OK".
• Quit the menu window "Instrument data
parameter adjustment" with "OK".

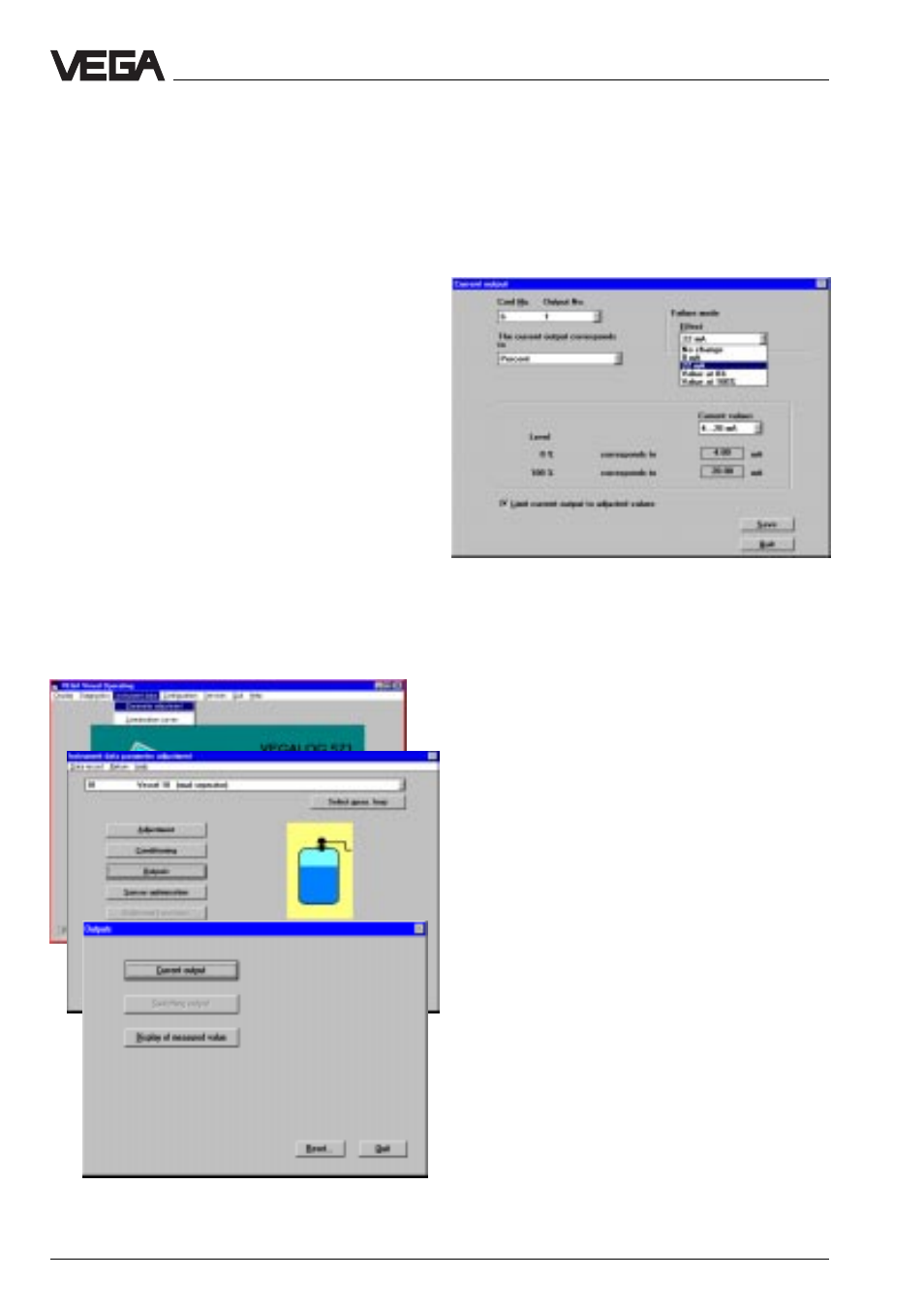

Outputs
• Choose in the main menu window "Instru-
ment data/Parameter adjustment", and then
the menu point "Outputs".
• In the menu window "Outputs" click to "Cur-
rent output", to adjust the signal mode of
the 0/4…20 mA output signal.
• If you have made adjustments in the menu
window "Current output", click to
"Save".
• If you want to keep the adjustments un-
changed, click to "Quit".
You are now again in the menu window
"
Outputs". With the menu point "Display of
measured value" you scale the sensor indi-
cation or probably additional indicating in-
struments connected to VEGALOG (see also
page 51 right column).
• Click in the menu window " Outputs" to
"Quit" and you are in the menu window
"
Instrument data parameter adjustment"
• Click in the menu window "Instrument data
parameter adjustment" again to "Quit".
Set-up - Adjustment with PC on VEGALOG
