46 VEGASON 51 V … 53 V
• Enter in the menu window "Create new
measurement loop - Measurement loop
designation" a measurement loop number
and a designation.
In this menu window you can choose with
which output signals your level should be
provided, e.g. as current, voltage, relay
signal etc.
• Confirm with "OK", and the previous menu
window appears again.
• Click to "Quit", and wait a moment until the
adjustments are transmitted.

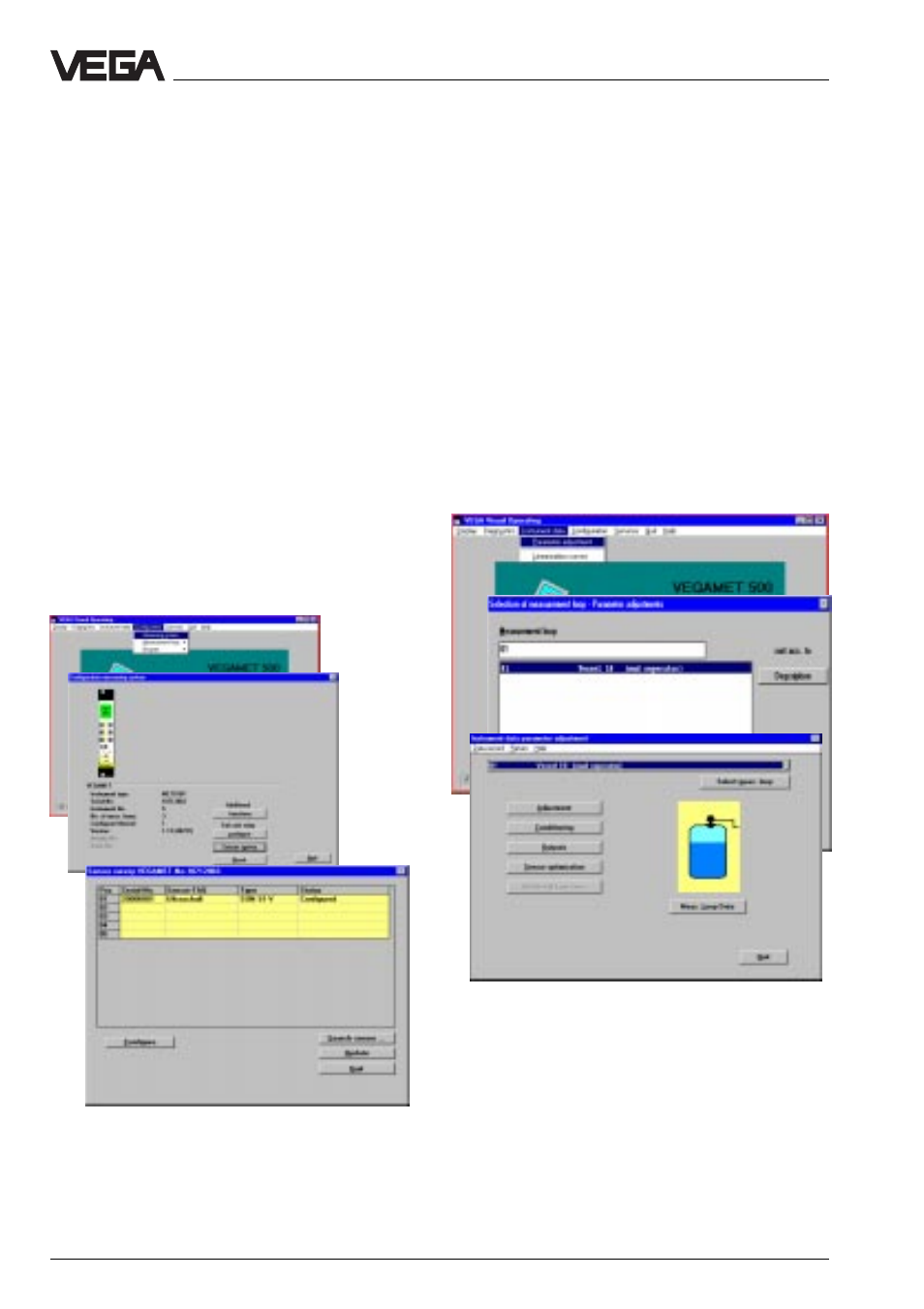

Configuration information
In the menu " Configuration/Measuring sys-
tem" you can check the configuration.
Parameter adjustment
In the menu " Instrument data/Parameter ad-
justment" you carry out all important sensor
adjustments.
Adjustment
• Choose the menu
"Instrument data/Parameter adjustment",
and then the sensor for which you want to
carry out the parameter adjustment.
When you have configured just one sensor
on the signal conditioning instrument, natu-
rally only one sensor will be offered as
choice.
In the heading of the menu window which is
going to open, you now see the previously
entered measurement loop name and the
designation.
• First choose "Adjustment"
• Click in the menu window "Adjustment" to
"Min / Max - Adjustment"
Set-up - Adjustment with PC on VEGAMET
