8 VEGASON 51 V … 53 V
Product description - Adjustment
Adjustment with adjustment module
MINICOM
The adjustment with the small
(3,2 cm x 6,7 cm) 6-key adjustment module
with display can be compared with that of the
signal conditioning instrument. It is possible
to carry out some sensor relevant adjust-
ments directly on the meas. loop which can
naturally also be made with the signal condi-
tioning instrument.
The adjustment module can be plugged into
and removed out of the ultrasonic sensor or
the optional external indicating instrument.
- +
ESC
OK
Tank 1
m (d)
12.345

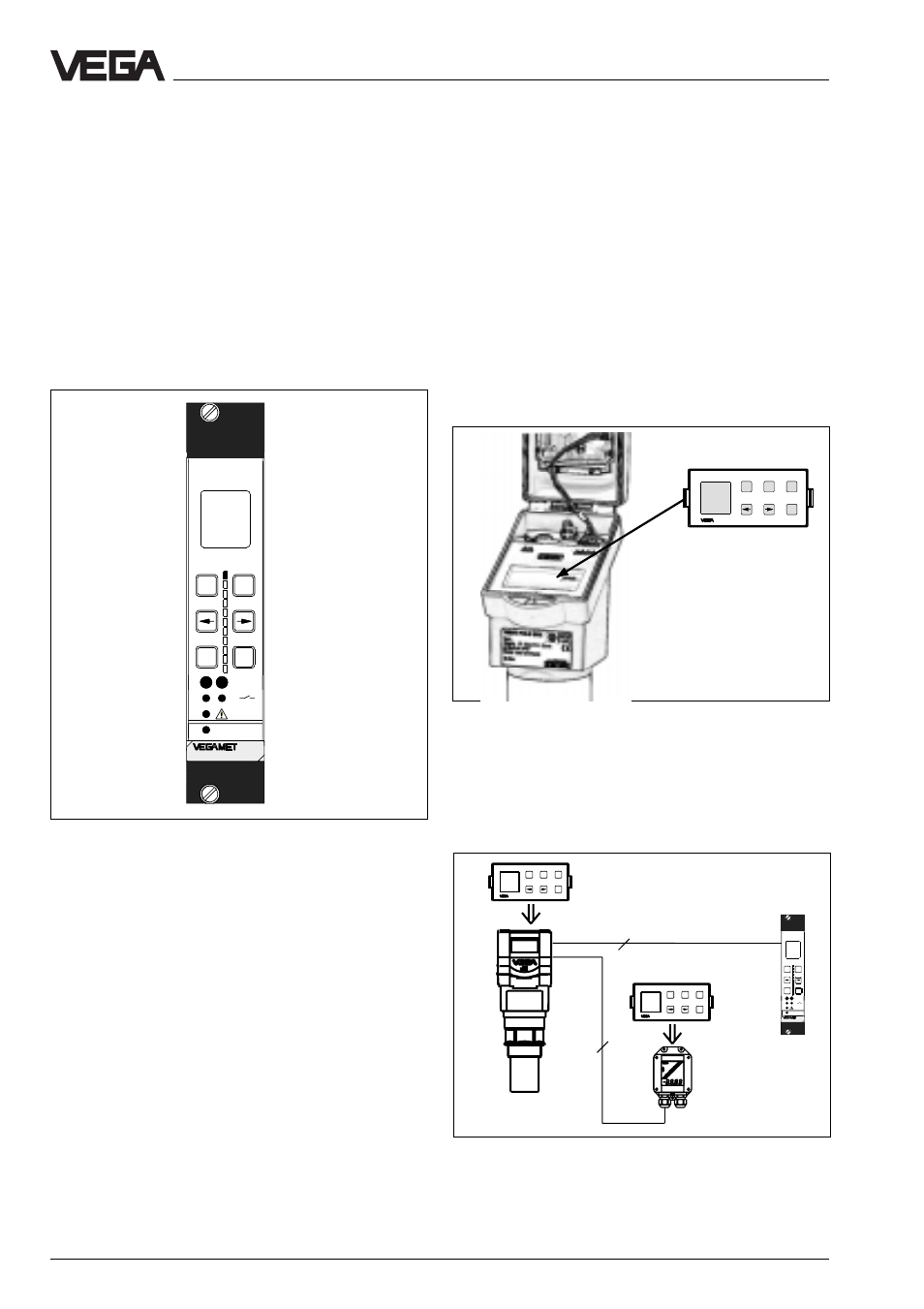

Detachable adjustment module MINICOM
6-key adjustment field on the instrument front of a
signal conditioning instrument VEGAMET
ESC OK
- +
1 2
on
100
%
CONNECT
514 Ex
Adjustment with signal conditioning in-
strument VEGAMET
The ultrasonic sensors with digital output
signal can be operated beside the PC also
with the signal conditioning instrument
VEGAMET.
For adjustment the digital signal conditioning
instruments VEGAMET 514 V and 515 V are
provided with a 6-key adjustment field with
display. Here the parameter adjustment in
clear text can be made.
The adjustment structure corresponds to the
adjustment on the adjustment module
MINICOM.
- + ESC
OK
2
4
Tank 1
m (d)
12.345
- + ESC
OK
Tank 1
m (d)
12.345
4 … 20 mA
Adjustment with the detachable adjustment module on
the ultrasonic sensor or on the external indicating
instrument VEGADIS 10.
ESC OK
- +
1 2
on
100
%
CONNECT
514 Ex
