VEGASON 51 V … 53 V 61

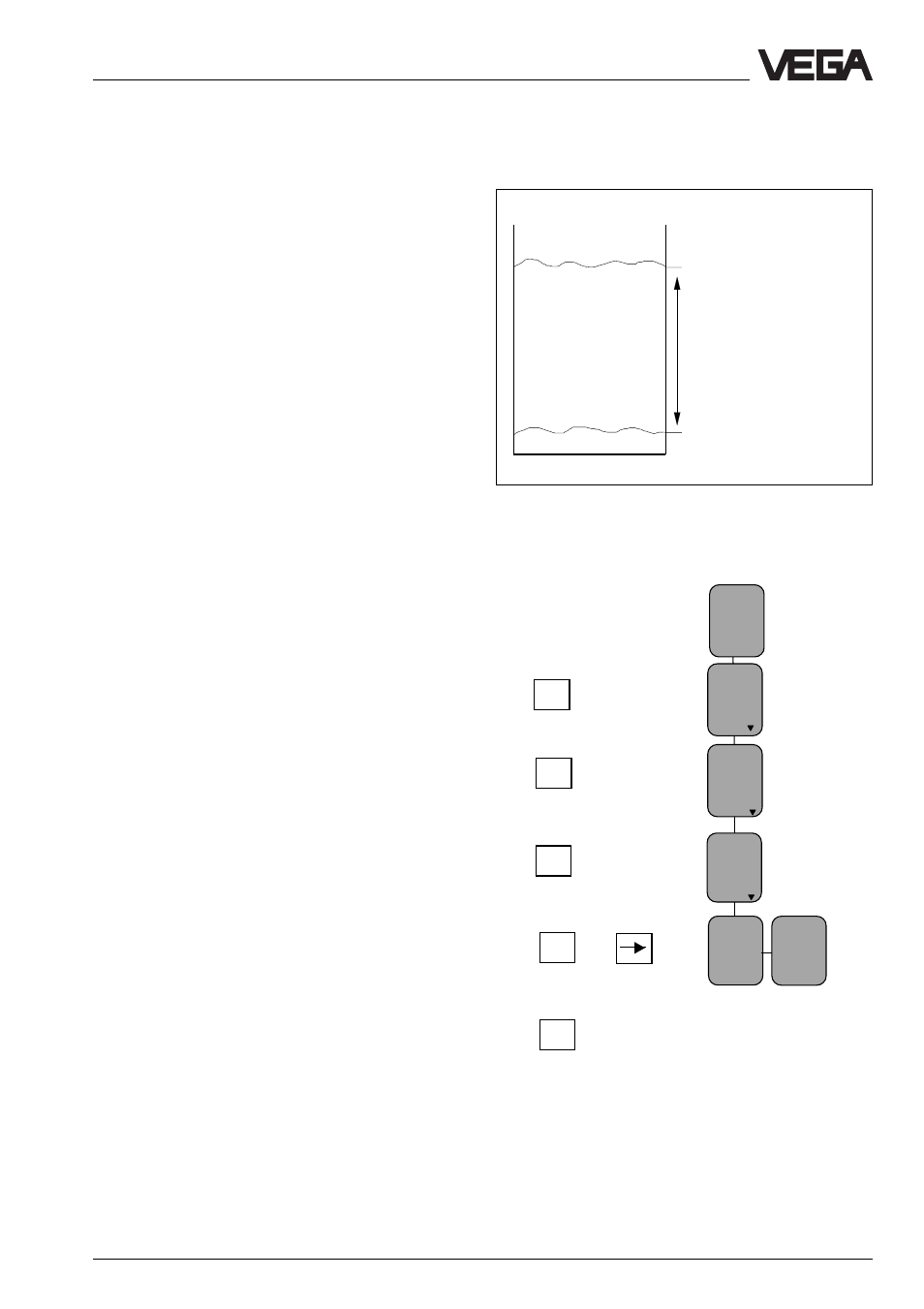

Adjustment without medium
Key adjustment Display indication
The distance-indication
flashes slowly
Now you can enter with the " +" and "–" key
the distance, which your sensor has to the
product at 0 % filling (example: 5,850 m)
Adjust
ment
Param.
adjust
ment
Sensor
m(d)
4.700
w.out
medium
Adjust
ment
in
m(d)
0.0 %
at
m (d)
XX.XXX
(Min. adjustment)
OK
OK
+
OK
OK
Set-up - Adjustment with VEGAMET or MINICOM
Following short explanations to the set-up
steps 1 … 9.
1. Configuration of the input
First of all you have to inform the signal condi-
tioning instrument (only VEGAMET 515 V) to
which input (input 1 or input 2) the sensor is
connected.
2.) Operating range
Without special adjustment, the operating
range corresponds to the meas. range. The
meas. range has already been adjusted with
the min./max. adjustment. Generally it is use-
ful to choose the operating range slightly
bigger (approx. 5 %) than the meas. range.
Example:
Min./max. adjustment: 0,500 … 3,400 m;
adjust operating range to approx.
0,400 … 3,500 m.
3.) Measuring conditions
see menu plan figure 3 on page 70.
4.) Adjustment
Under the menu point " Adjustment" you inform
the sensor in which meas. range it should
operate.
The adjustment can be carried out with and
without medium. Generally you will carry out
the adjustment without medium as you can
adjust without filling cycle.
Max.
Min.
100 %
(0,500 m product distance)
correspond to1200 litres
Meas. range
0,5…3,4 m
0 %
(3,400 m product distance)
correspond to 45 litres
