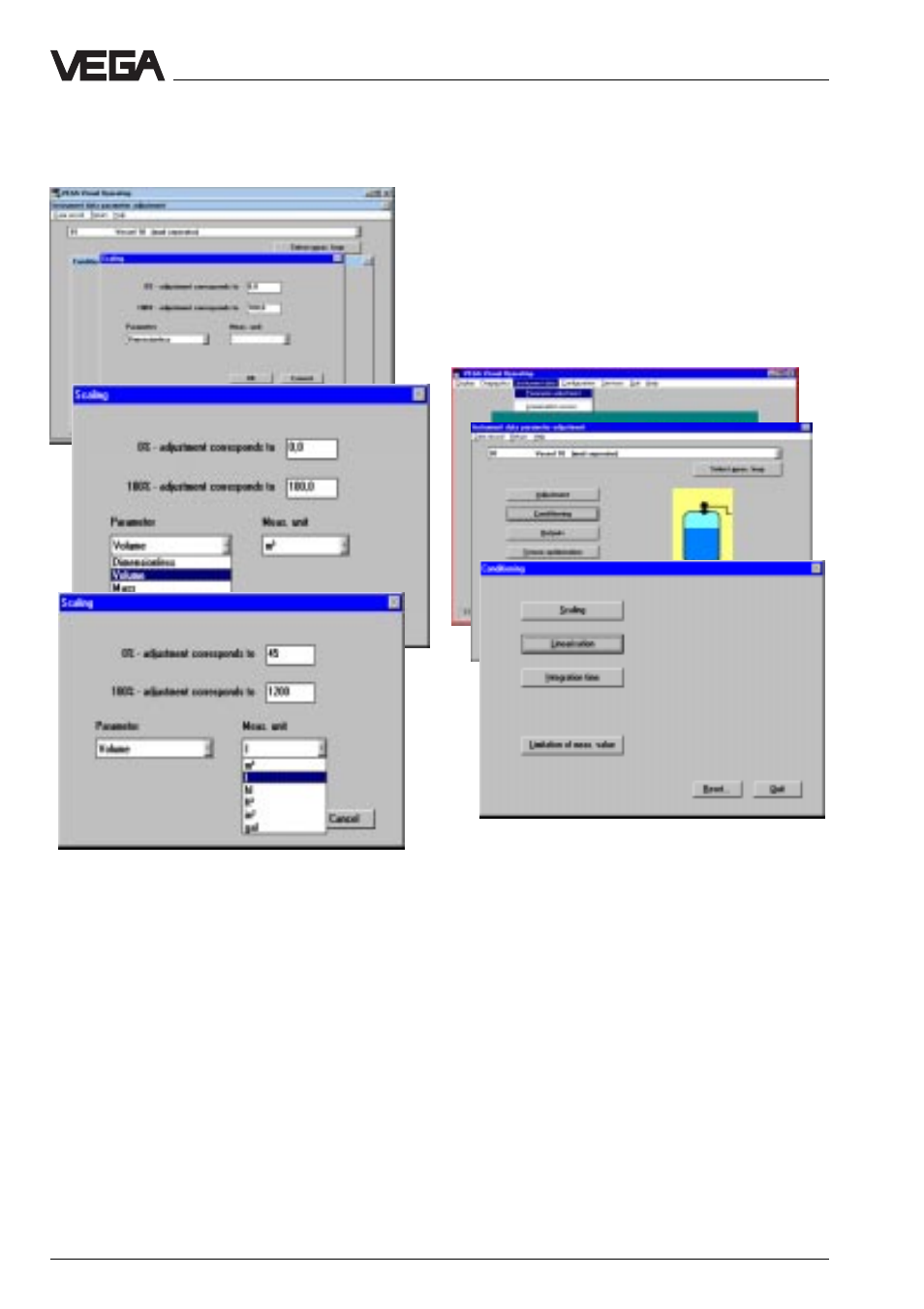

As parameter you can choose "dimensionless
(figures), volume, mass, height and distance"
and coordinate to the parameter the appro-
priate unit (e.g. litres, hl). The sensor indica-
tion then displays the figure in the selected
parameter and unit.
• Save the adjustments in the menu " Scaling"
with "OK".
The adjustments are now transferred to the
sensor and you are again in the menu win-
dow "
Conditioning".
• Click in the menu window "Conditioning" to
"Quit"
• Click in the menu window "Instrument data
parameter adjustment" to "Quit"
Linearisation
The relation of level and filling volume is de-
scribed with so called linearisation curves.
If in your vessel there is another than a linear
dependence between the level ("
percentage
value" of the level) and the filling volume
("
Linearised"), choose the menu "Instrument
data/Parameter adjustment/Conditioning"
• Click in the menu window " Conditioning" to
the menu point "Linearisation".
In the menu window " Linearisation" you see
that " Linear" is preadjusted. This means that
the dependence between the percentage
value of the filling volume and the value of the
level is linear.
Beside the two given linearisation curves
"
cylindrical tank" and "spherical tank" you can
also enter six " user programmable curves".
